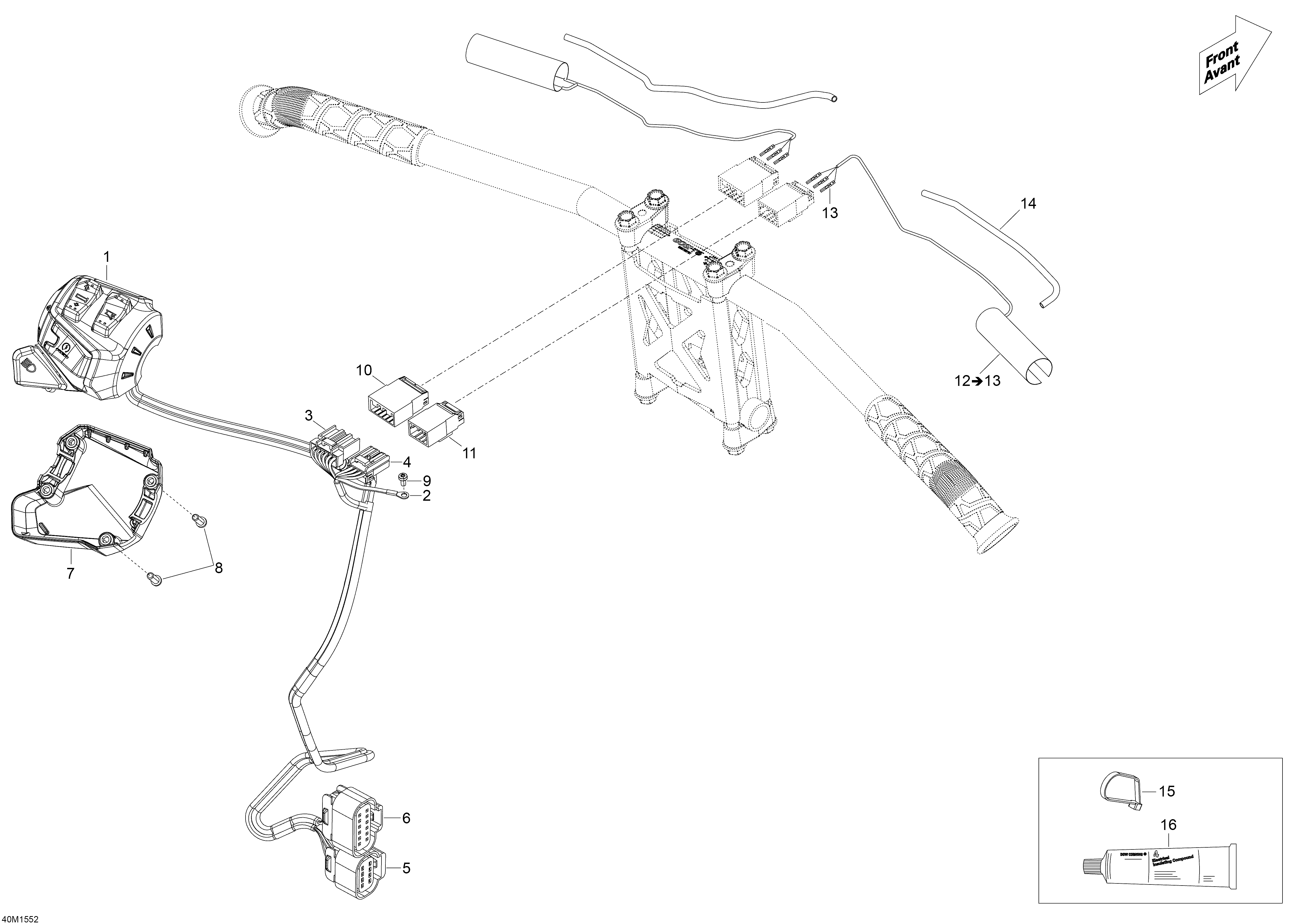

10- Steering Wiring Harness _40M1552 для BRP Ski-Doo Skandic SWT 900 ACE - 2015

  • №
    Артикул
    Название
  • 1
    515177613 LH Switch Housing. Includes 1 To 6
    LH Switch Housing. Includes 1 To 6
  • 2
    515175504 Ring Terminal
    Ring Terminal
  • 3
    515175543 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 3
    515175231 Female Terminal
    Female Terminal
  • 4
    515175845 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 4
    515175231 Female Terminal
    Female Terminal
  • 5
    710001928 Housing
    Housing
  • 6
    710001930 Female Housing, 12 Circuits
    Female Housing, 12 Circuits
  • 7
    515177147 Housing Plate
    Housing Plate
  • 8
    250000671 Torx Screw
    Torx Screw
  • 9
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 10
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 11
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 12
    506152428 Heated Film, 25W. Includes 12 To 13
    Heated Film, 25W. Includes 12 To 13
  • 13
    515175232 Male Terminal
    Male Terminal
  • 14
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 15
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
