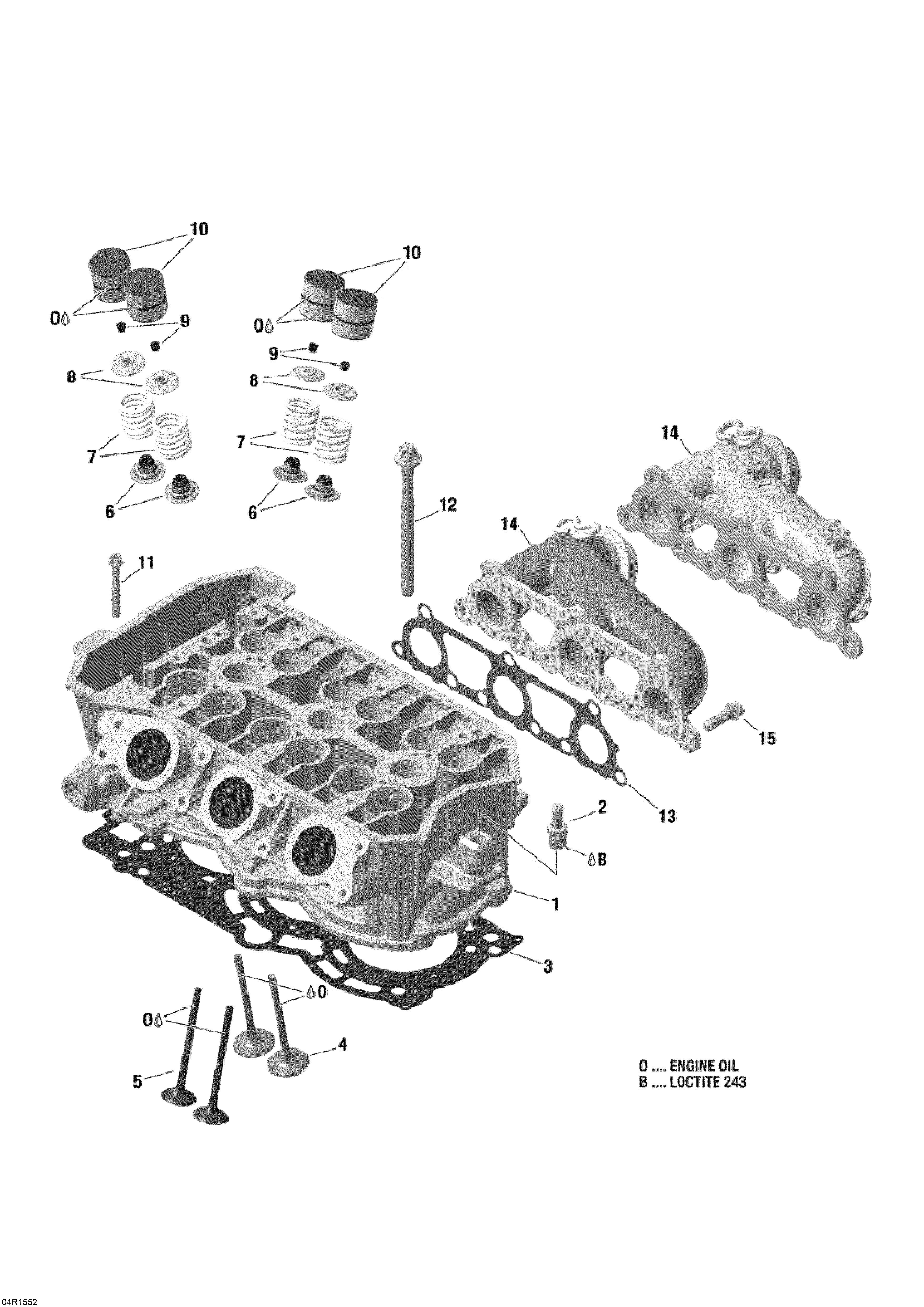

01- Cylinder Head _04R1552 для BRP Ski-Doo Skandic SWT 900 ACE - 2015

№

Артикул

Название
1

420623877 Cylinder Head

Cylinder Head

77 510 ₽
2

420441420 Hose Nipple

Hose Nipple

1 180 ₽
3

420431811 Cylinder Head Gasket. Included In Gasket Kit

Cylinder Head Gasket. Included In Gasket Kit

0 ₽
4

420855130 Intake Valve, 29 mm

Intake Valve, 29 mm

1 900 ₽
5

420855140 Exhaust Valve, 25 mm

Exhaust Valve, 25 mm

3 130 ₽
6

420431671 Valve Stem Seal. Included In Gasket Kit

Valve Stem Seal. Included In Gasket Kit

1 890 ₽
7

420939540 Valve Spring

Valve Spring

2 650 ₽
8

420855150 Valve Spring Retainer

Valve Spring Retainer

1 540 ₽
9

420254630 Cotter Valve

Cotter Valve

360 ₽
10

420855164 Valve Lifter Bucket Bloc

Valve Lifter Bucket Bloc

2 820 ₽
11

420440324 Flanged Torx Screw M6 X 45

Flanged Torx Screw M6 X 45

360 ₽
12

420940945 Flanged Torx Screw M9 X 113

Flanged Torx Screw M9 X 113

4 240 ₽
13

420431850 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

5 600 ₽
14

420673495 Exhaust Manifold

Exhaust Manifold

147 700 ₽
15

420440372 Flanged Torx Screw M8 X 25

Flanged Torx Screw M8 X 25

380 ₽
