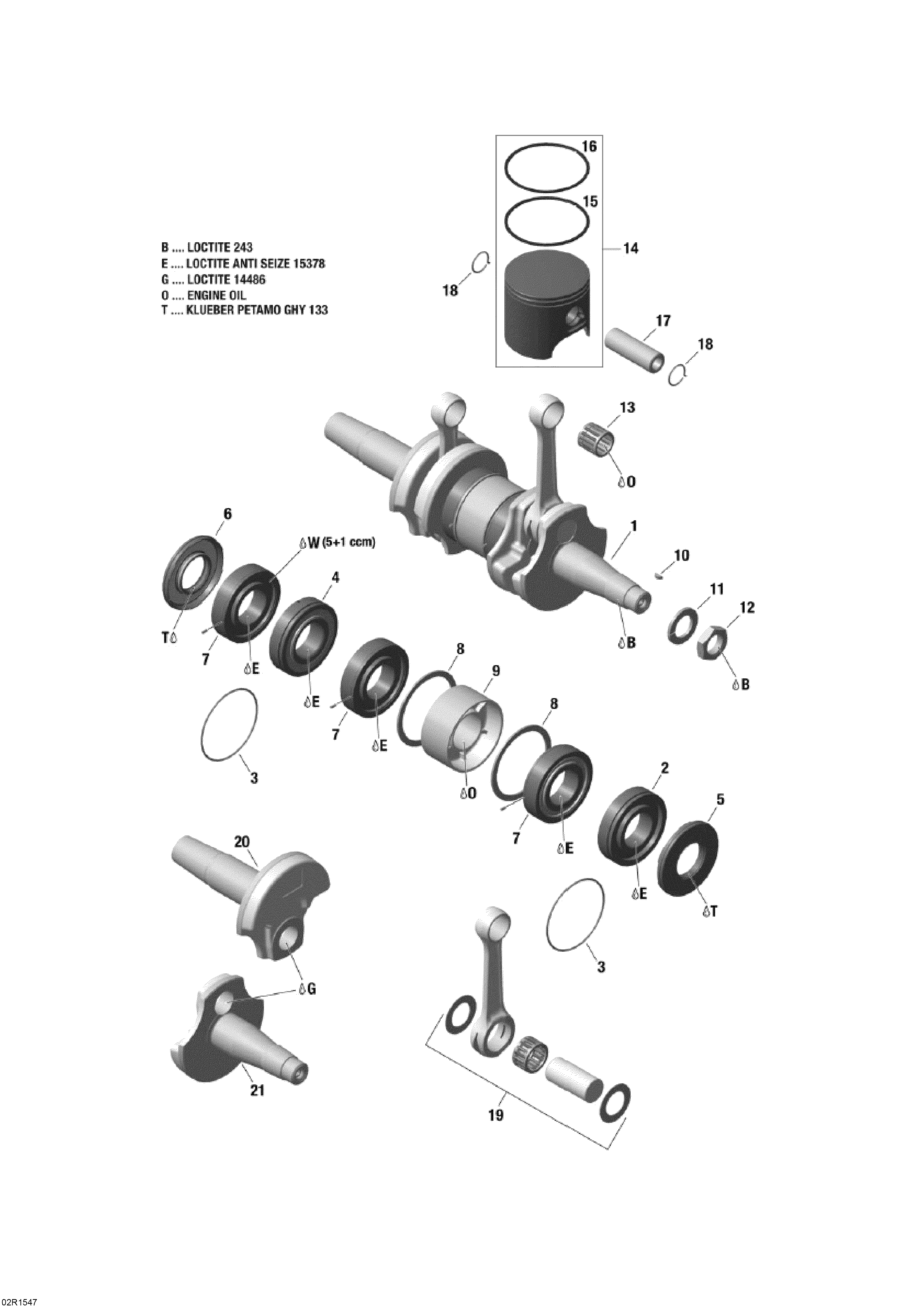

01- Crankshaft And Pistons _02R1547 для BRP Ski-Doo Skandic SWT 550 - 2015

  • №
    Артикул
    Название
  • 1
    420686042 Crankshaft. Includes 1 To 8
    Crankshaft. Includes 1 To 8
  • 2
    420832571 Ball Bearing
    Ball Bearing
  • 3
    293300022 O-Ring, 64 mm X 2 mm
    O-Ring, 64 mm X 2 mm
  • 4
    420832632 Ball Bearing
    Ball Bearing
  • 5
    420831952 Oil Seal
    Oil Seal
  • 6
    420831955 Oil Seal
    Oil Seal
  • 7
    420832573 Ball Bearing
    Ball Bearing
  • 8
    420927710 Retaining Disk
    Retaining Disk
  • 9
    420850149 Labyrinth Sleeve
    Labyrinth Sleeve
  • 10
    420246055 Woodruff Key
    Woodruff Key
  • 11
    420945759 Lock Washer, 22 mm
    Lock Washer, 22 mm
  • 12
    420842239 Hex. Nut, M22 X 1.5
    Hex. Nut, M22 X 1.5
  • 13
    420832445 Needle Bearing
    Needle Bearing
  • 14
    420889050 Piston Ass'y 75.86 mm, Standard. Includes 14 To 16
    Piston Ass'y 75.86 mm, Standard. Includes 14 To 16
  • 14
    420889051 Piston Ass'y 76.11 mm, 1st Oversize. Includes 14 To 16
    Piston Ass'y 76.11 mm, 1st Oversize. Includes 14 To 16
  • 14
    420889052 Piston Assy 76.36 mm, 2nd Oversize. Includes 14 To 16
    Piston Assy 76.36 mm, 2nd Oversize. Includes 14 To 16
  • 15
    420815300 Rectangular Ring, Standard
    Rectangular Ring, Standard
  • 15
    420815301 Rectangular Ring, 1st
    Rectangular Ring, 1st
  • 15
    420815302 Rectangular Ring, 2nd
    Rectangular Ring, 2nd
  • 16
    420815155 Semi-Trapez Ring, Standard
    Semi-Trapez Ring, Standard
  • 16
    420815156 Semi-Trapez Ring, 1st
    Semi-Trapez Ring, 1st
  • 16
    420815157 Semi-Trapez Ring, 2nd
    Semi-Trapez Ring, 2nd
  • 17
    420916407 Piston Pin
    Piston Pin
  • 18
    420845106 Piston Circlip. Included In Gasket Kit
    Piston Circlip. Included In Gasket Kit
  • 19
    420889068 Rod Repair Kit
    Rod Repair Kit
  • 20
    420819181 Crankshaft PTO Side
    Crankshaft PTO Side
  • 21
    420819213 Half Crankshaft (MAG)
    Half Crankshaft (MAG)
