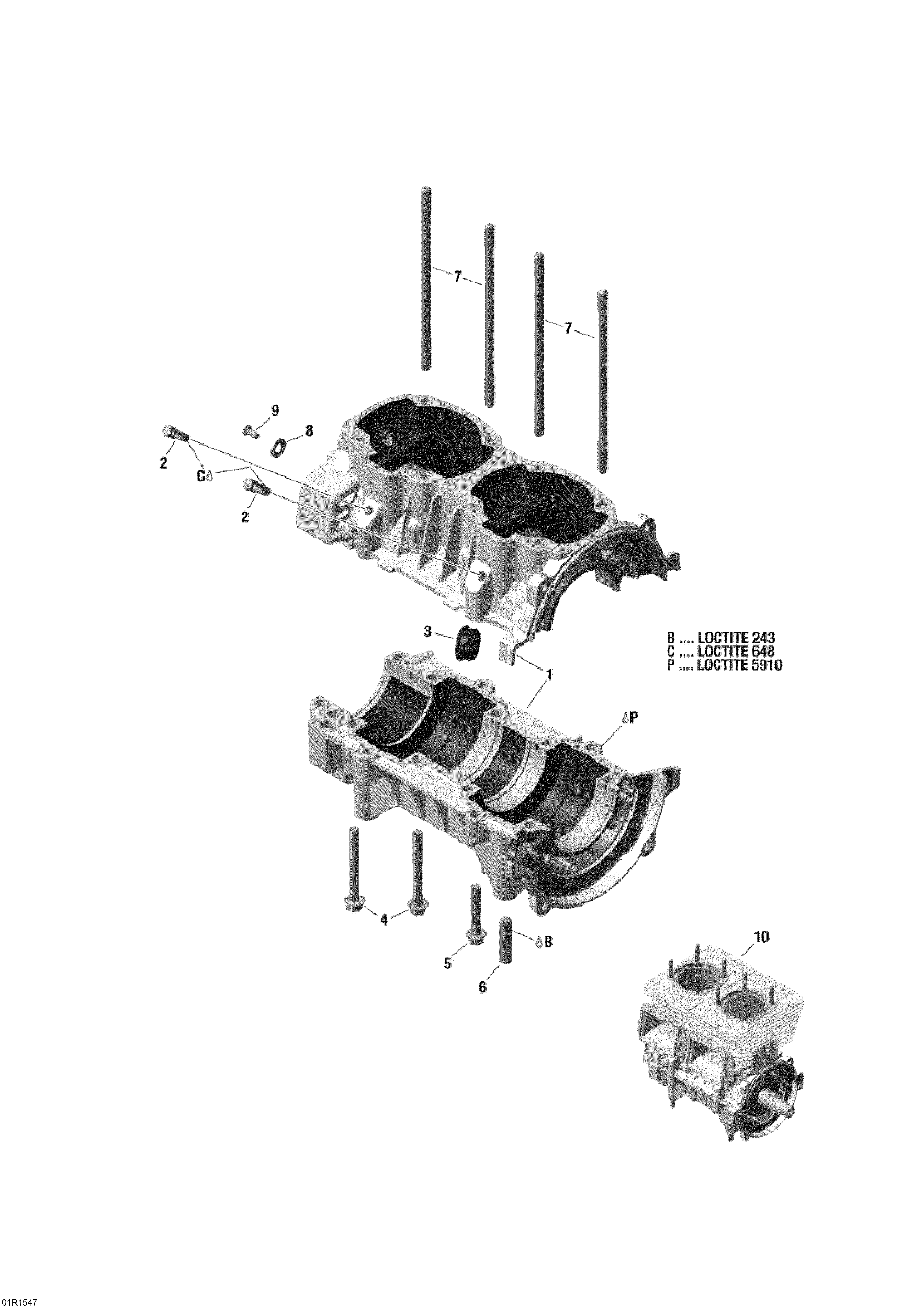

01- Crankcase _01R1547 для BRP Ski-Doo Skandic SWT 550 - 2015
-
№АртикулНазвание
-
1420890237 Crankcase Ass'y. Includes 1 To 4Crankcase Ass'y. Includes 1 To 4
-
2420956510 Check ValveCheck Valve
-
3420860962 Cable GrommetCable Grommet
-
4420640951 Hex. Screw M8 X 68.5Hex. Screw M8 X 68.5
-
5420640431 Hex. Collar Screw M8 X 45Hex. Collar Screw M8 X 45
-
6420840266 Stud M10 X 45Stud M10 X 45
-
7420840556 Stud M8 X 173.5Stud M8 X 173.5
-
8420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
9420640896 Flat Head ScrewFlat Head Screw
-
10420055208 Short Block EngineShort Block Engine
