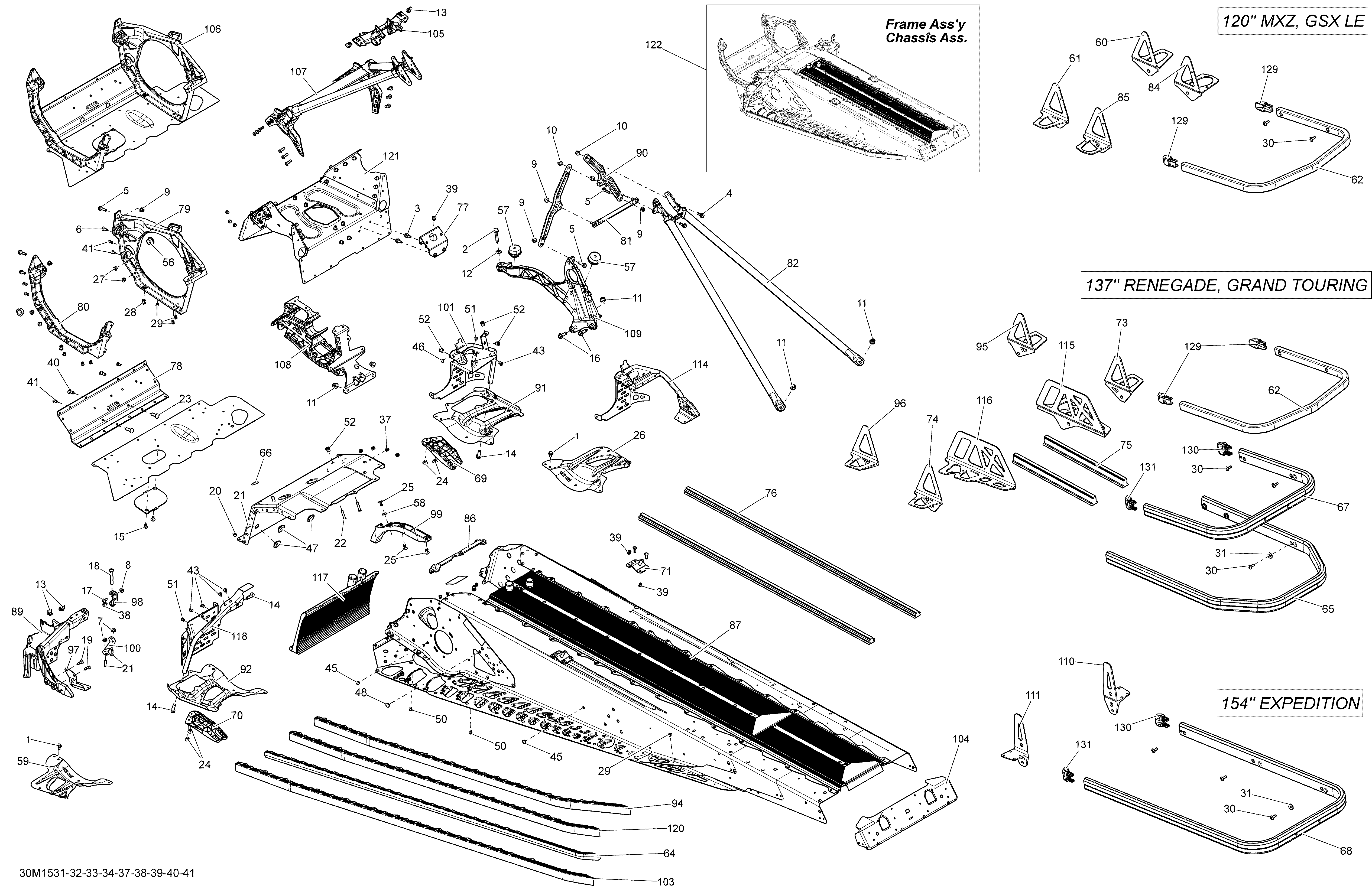

09- Frame _30M1538 для BRP Ski-Doo Renegade Adrenaline 900ACE XS137 - 2015

№

Артикул

Название
1

207561244 Hex. Flanged Screw M6 X 12, Scotch Grip

Hex. Flanged Screw M6 X 12, Scotch Grip
2

207584034 Hex. Flanged Screw, Scotch Grip

Hex. Flanged Screw, Scotch Grip
3

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
4

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
5

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25
6

210261680 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
9

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
10

233261416 Elastic Flanged Nut M6

Elastic Flanged Nut M6
11

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
12

234281474 Conical Spring Washer M8

Conical Spring Washer M8
13

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
14

250000248 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip
15

250000325 Torx Truss Screw M6 X 12

Torx Truss Screw M6 X 12
16

250000351 Hex. Flanged Screw M8 X 25, Nylon

Hex. Flanged Screw M8 X 25, Nylon
21

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20
22

250300031 Clinch Stud M6 X 30

Clinch Stud M6 X 30
23

250300038 Clinch Stud

Clinch Stud
24

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
25

293150108 Pop Rivet 3/16''

Pop Rivet 3/16''
27

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
28

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm
29

293150144 Stavex Rivet

Stavex Rivet
30

250000402 Torx-Truss Screw M6 X 18

Torx-Truss Screw M6 X 18
31

210262040 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
37

293150146 Henrob Rivet

Henrob Rivet
39

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm
40

293150182 Monobolt Rivet 6.4

Monobolt Rivet 6.4
41

293150191 Monobolt Rivet, 4.8 mm

Monobolt Rivet, 4.8 mm
43

293450268 Insert

Insert
45

293730047 Black Dart 8 mm

Black Dart 8 mm
46

293730042 Full Moon Dart 5 mm

Full Moon Dart 5 mm
48

293730060 Black Dart 10 mm

Black Dart 10 mm
50

390909100 Avex Rivet

Avex Rivet
51

390909200 Avex Rivet

Avex Rivet
52

293450275 Insert

Insert
56

505073317 Leg Cushion

Leg Cushion
57

512060295 Rubber Mount

Rubber Mount
58

517124300 Washer

Washer
62

518325481 Black Rear Bumper

Black Rear Bumper
66

518325560 Adhesive Patch

Adhesive Patch
67

518326414 Black Rear Bumper

Black Rear Bumper
69

518325782 RH Deflector

RH Deflector
70

518325783 LH Deflector

LH Deflector
71

518325973 RH Rear Base

RH Rear Base
71

518325974 LH Rear Base

LH Rear Base
77

518326178 Engine Support

Engine Support
78

518326198 Front Member

Front Member
79

518326328 RH Side Member

RH Side Member
80

518326330 LH Side Member

LH Side Member
81

518326355 Center Column Support

Center Column Support
82

518326559 Rear Member

Rear Member
86

518326656 Seal

Seal
87

518326641 Rear Radiator Ass'y

Rear Radiator Ass'y
90

518326848 Upper Column Support

Upper Column Support
91

518326937 RH Reinforcement

RH Reinforcement
92

518326938 LH Reinforcement

LH Reinforcement
95

518326954 RH Suspension Bracket

RH Suspension Bracket
96

518326955 LH Suspension Bracket

LH Suspension Bracket
99

518326973 Front Protector

Front Protector
101

518327014 RH Stirup

RH Stirup
103

518327093 RH Roller

RH Roller
103

518327094 LH Roller

LH Roller
104

518327105 Rear Cap

Rear Cap
105

518327145 Sub A Support

Sub A Support
106

518328078 'E'' Module

'E'' Module
107

518327565 Front Member

Front Member
108

518327487 Front Suspension Support. Included With 518328320 S Module

Front Suspension Support. Included With 518328320 S Module
109

518327535 Brace Ass'y

Brace Ass'y
117

518327907 Front Radiator Ass'y

Front Radiator Ass'y
118

518327937 LH Stirup

LH Stirup
121

518328320 Cross Member S Module. Include 518327487 Front Susp Support

Cross Member S Module. Include 518327487 Front Susp Support
122

415129936 Frame Ass'y 137

Frame Ass'y 137
129

520000840 Black Cap

Black Cap
130

520000965 Black RH Cap

Black RH Cap
131

520000964 Black LH Cap

Black LH Cap
