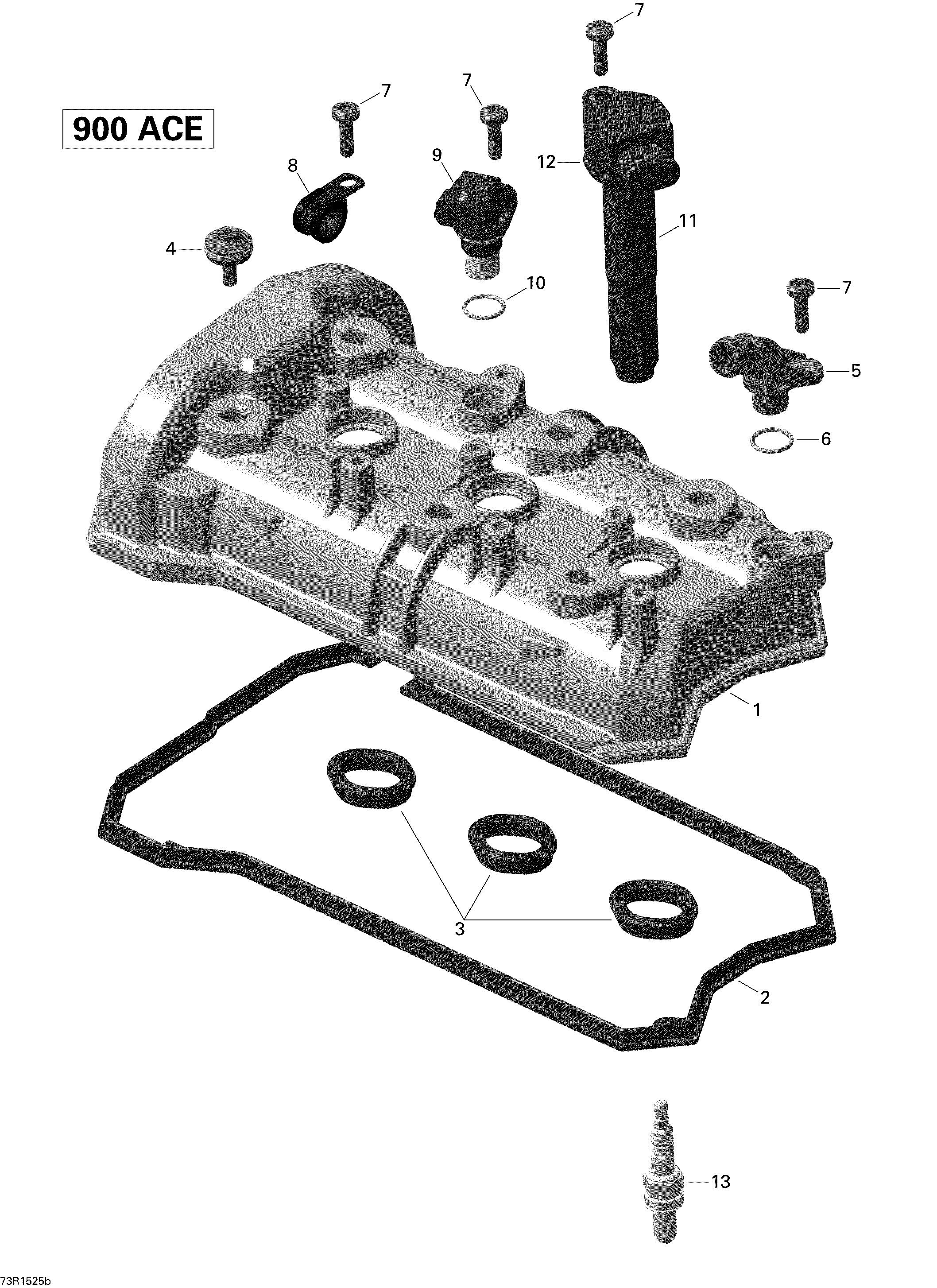

01- Valve Cover _73R1525b для BRP Ski-Doo Renegade Adrenaline 900ACE XS137 - 2015
-
№АртикулНазвание
-
1420911492 Valve CoverValve Cover
-
2420431801 GasketGasket
-
3420431751 GasketGasket
-
4420440495 Torx Distance Screw M6Torx Distance Screw M6
-
5420611240 ConnectorConnector
-
6420631240 O-RingO-Ring
-
7420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9420664045 Camshaft Position Sensor Ass'y. Includes 9 to 10Camshaft Position Sensor Ass'y. Includes 9 to 10
-
10420631890 O-RingO-Ring
-
11420666141 Ignition Coil Ass'y. Includes 11 to 12Ignition Coil Ass'y. Includes 11 to 12
-
12420201430 Protection CapProtection Cap
-
13415129944 Spark Plug, NGK MR8BISpark Plug, NGK MR8BI
Все узлы модели:
- 00- Model Numbers _00M1538
- 01- Cooling System _10M1538
- 01- Crankcase _01R1525
- 01- Crankshaft And Pistons _02R1525
- 01- Cylinder Head _03R1525
- 01- Engine _08M1538
- 01- Engine Cooling _27R1525
- 01- Engine Lubrication _54R1525
- 01- Exhaust System _13M1538
- • 01- Valve Cover _73R1525b
- 01- Valve Train _73R1525a
- 02- Air Intake Manifold And Throttle Body _18R1525
- 02- Air Intake System _35M1538
- 02- Fuel System _14M1538
- 03- Magneto And Electric Starter _04R1525
- 05- Drive System _17M1538
- 05- Pulley System _19M1538
- 06- Hydraulic Brakes _22M1538
- 07- Front Suspension And Ski _24M1538
- 07- Steering _23M1538
- 08- Rear Suspension _26M1538
- 09- Bottom Pan _31M1538
- 09- Decals _32M1538
- 09- Frame _30M1538
- 09- Hood _38M1538
- 09- Seat _29M1538
- 09- Utilities _46M1538
- 10- Electrical Harness Main_43M1538
- 10- Electrical System _33M1538
- 10- Engine Harness And Electronic Module _51R1525
