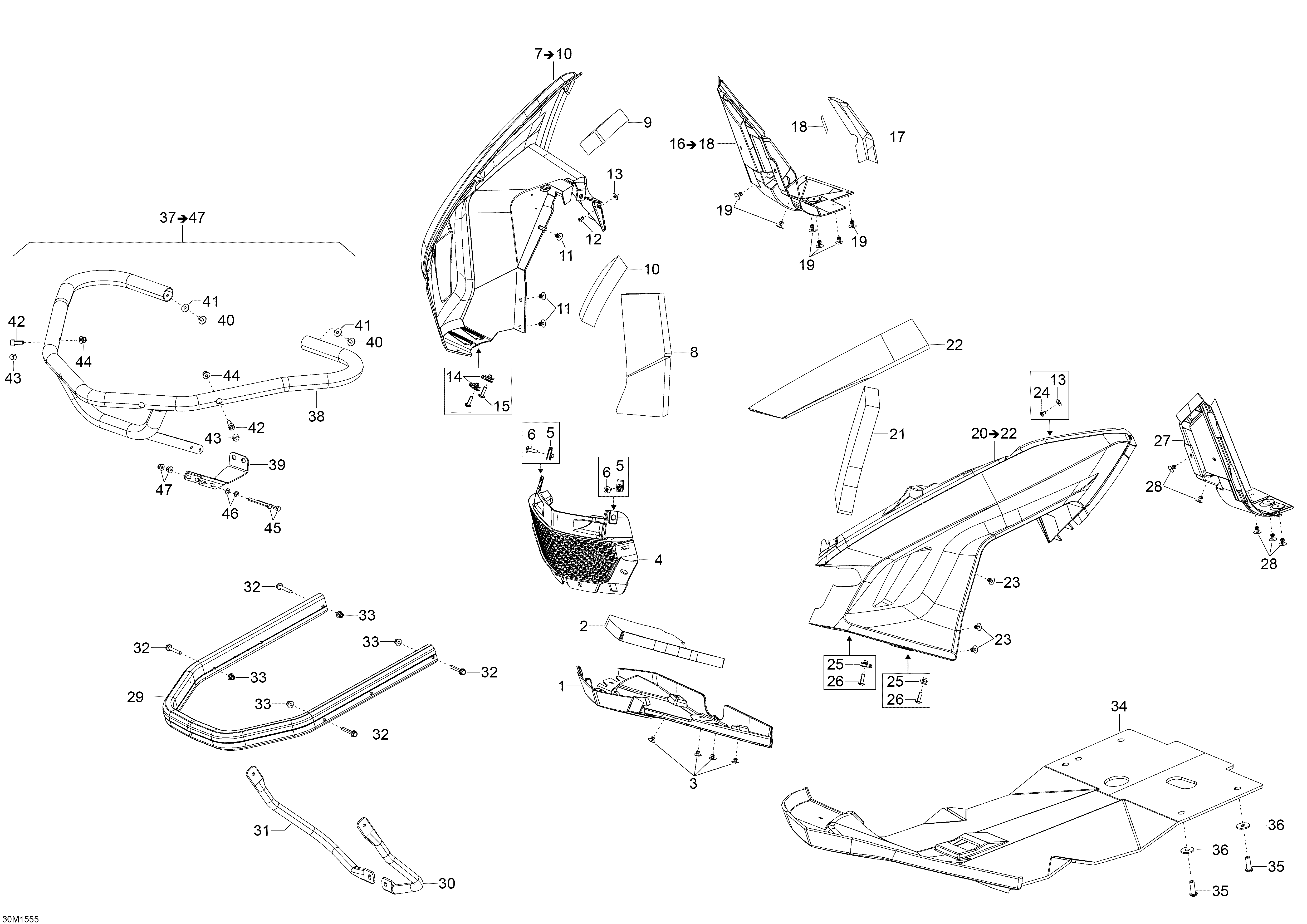

09- Bottom Pan _30M1555 для BRP Ski-Doo Expedition SE 900 ACE - 2015
-
№АртикулНазвание
-
1502007184 Black Bottom Pan FrontBlack Bottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7502007187 Black Bottom Pan Ass'y, RH. Includes 7 To 10Black Bottom Pan Ass'y, RH. Includes 7 To 10
-
8502007006 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13234052450 Flat WasherFlat Washer
-
14250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
15250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
16502007193 Bottom-pan rear, RH. Includes 16 To 18Bottom-pan rear, RH. Includes 16 To 18
-
17502007038 Aluminium FoilAluminium Foil
-
1844110 Aluminum foilAluminum foil
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20502007198 Black Bottom Pan Ass'y, LH. Includes 20 To 22Black Bottom Pan Ass'y, LH. Includes 20 To 22
-
21502007003 InsulatorInsulator
-
22502007185 InsulatorInsulator
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
27502007195 Black Bottom Pan Rear Ass'y LHBlack Bottom Pan Rear Ass'y LH
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29502007470 BumperBumper
-
30502007014 LH Bumper SupportLH Bumper Support
-
31502007015 RH Bumper SupportRH Bumper Support
-
32207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34860200563 Skid Plate KitSkid Plate Kit
-
35250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
36234082410 Flat Washer 8 mmFlat Washer 8 mm
-
37860200537 Extra Bumber Paint. Includes 37 To 47Extra Bumber Paint. Includes 37 To 47
-
39502007022 Lower Fastening PlateLower Fastening Plate
-
40250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
4120117 WasherWasher
-
42205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4328056 CoverCover
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
46234061410 Flat Washer 6 mmFlat Washer 6 mm
-
47233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
