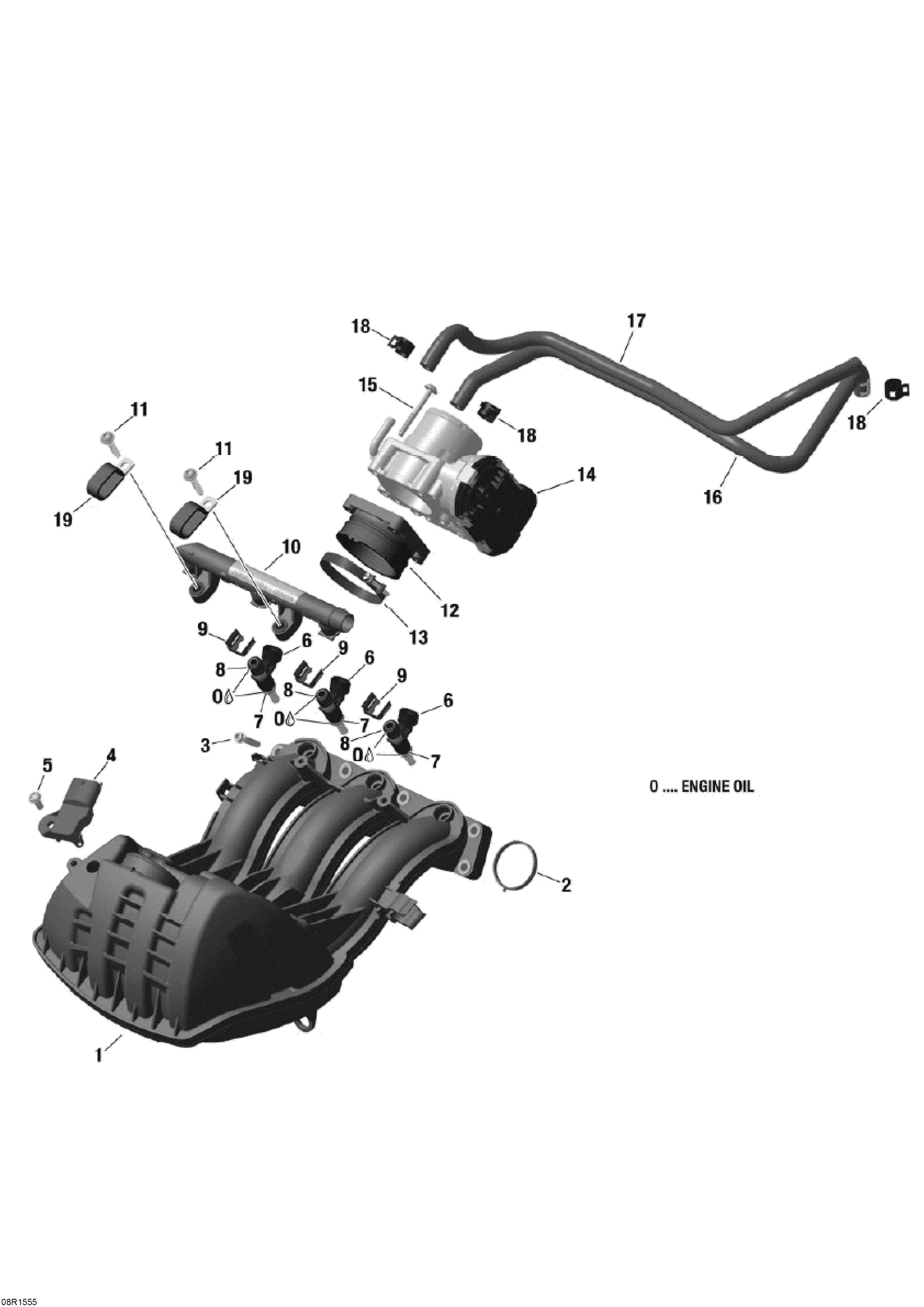

02- Air Intake System _08R1555 для BRP Ski-Doo Expedition SE 900 ACE - 2015

  • №
    Артикул
    Название
  • 1
    420867340 Air Intake Manifold Ass'y. Includes 1 To 2
    Air Intake Manifold Ass'y. Includes 1 To 2
  • 2
    420431662 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440647 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 4
    707000995 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 5
    420641588 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 6
    420874838 Injection Valve Ass'y. Includes 6 To 8
    Injection Valve Ass'y. Includes 6 To 8
  • 7
    420431890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 8
    420631220 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 9
    420853030 Clip
    Clip
  • 10
    420874965 Fuel Rail
    Fuel Rail
  • 11
    420441573 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 12
    420867110 Intake Neck
    Intake Neck
  • 13
    420251830 Hose Clamp
    Hose Clamp
  • 14
    420893148 Throttle Body
    Throttle Body
  • 15
    420441588 Flanged Torx Screw M6 X 50
    Flanged Torx Screw M6 X 50
  • 16
    420201505 Molded Hose
    Molded Hose
  • 17
    420201500 Molded Hose
    Molded Hose
  • 18
    420853511 Clamp
    Clamp
  • 19
    420951830 Double Clamp
    Double Clamp
