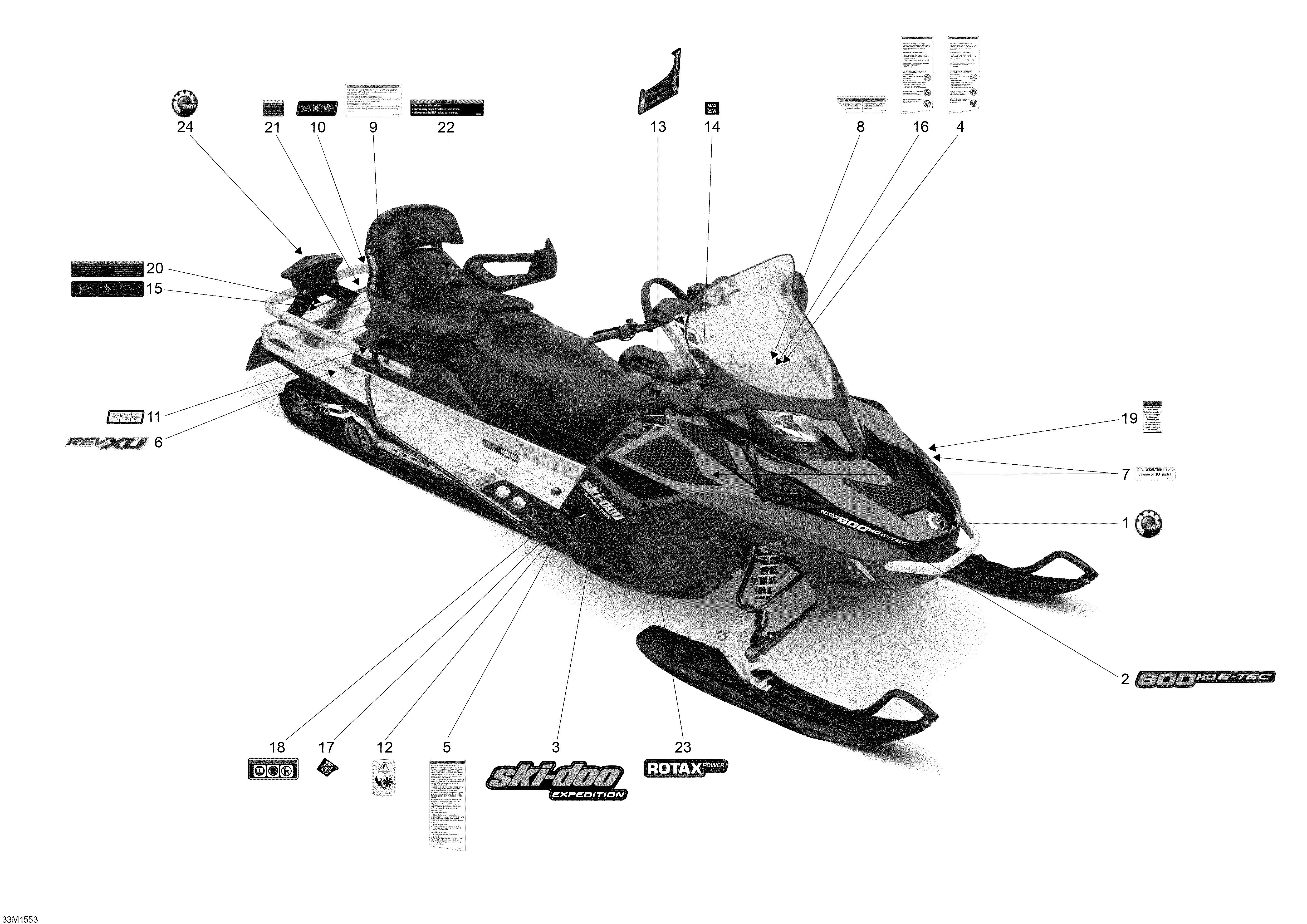

09- Decals _33M1553 для BRP Ski-Doo Expedition LE 600 E-TEC - 2015
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516006152 Hood Decal, 600 HO E-TECHood Decal, 600 HO E-TEC
-
3516005038 Side Panel Decal, RHSide Panel Decal, RH
-
3516005039 Side Panel Decal, LHSide Panel Decal, LH
-
4516004652 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
5516004653 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
6516005891 Decal REV XUDecal REV XU
-
7516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
8516005683 Security label, drive pulley cover. Model-North AmericaSecurity label, drive pulley cover. Model-North America
-
9516005682 Decal warning. Model-North AmericaDecal warning. Model-North America
-
10516006873 Backseat Handle DecalBackseat Handle Decal
-
11516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
12516003923 Warning Decal. Model-EuropeWarning Decal. Model-Europe
-
13516004305 Instruction Label, TransmissionInstruction Label, Transmission
-
14516003918 Power Outlet Decal (25W). Model-EuropePower Outlet Decal (25W). Model-Europe
-
15516003886 Warning Decal, Towing. Model-EuropeWarning Decal, Towing. Model-Europe
-
16516006403 Instruction/Warning Decal, FI/SWE/EN. Model-EuropeInstruction/Warning Decal, FI/SWE/EN. Model-Europe
-
17516003925 Checking Label, Transmission. Model-EuropeChecking Label, Transmission. Model-Europe
-
18516003027 Warning Decal, Pictogram. Model-EuropeWarning Decal, Pictogram. Model-Europe
-
19516005583 Warning Decal, InjectorsWarning Decal, Injectors
-
20516004960 Rear Security Decal, English. Model-North AmericaRear Security Decal, English. Model-North America
-
21516004650 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
22516004961 Security Decal. Model-North AmericaSecurity Decal. Model-North America
-
23516006331 Rotax Power DecalRotax Power Decal
-
24219903947 BRP Logo, 48 mmBRP Logo, 48 mm
Все узлы модели:
- 00- Model Numbers _00M1553
- 01- Cooling System _12M1553
- 01- Crankcase _01R1553
- 01- Crankshaft _02R1553
- 01- Cylinder _03R1553
- 01- Engine _11M1553
- 01- Exhaust System _13M1553
- 01- RAVE Valve _04R1553
- 02- Air Intake System _15M1553
- 02- Fuel System _16M1553
- 02- Oil System _14M1553
- 03- Magneto _05R1553
- 04- Electric Starter _18M1553
- 04- Rewind Starter _06R1553
- 05- Drive System _19M1553
- 05- Pulley System _22M1553
- 05- Transmission _21M1553
- 06- Hydraulic Brakes _23M1553
- 07- Front Suspension _25M1553
- 07- Steering _24M1553
- 08- Rear Suspension A _27M1553
- 08- Rear Suspension B _28M1553
- 09- Bottom Pan _30M1553
- • 09- Decals _33M1553
- 09- Frame _31M1553
- 09- Hood _34M1553
- 09- Luggage Rack _36M1553
- 09- Seat _35M1553
- 09- Utilities _37M1553
- 10- Battery And Starter _39M1553
- 10- Electrical Harness _41M1553
- 10- Electrical System _38M1553
- 10- Steering Wiring Harness _40M1553
