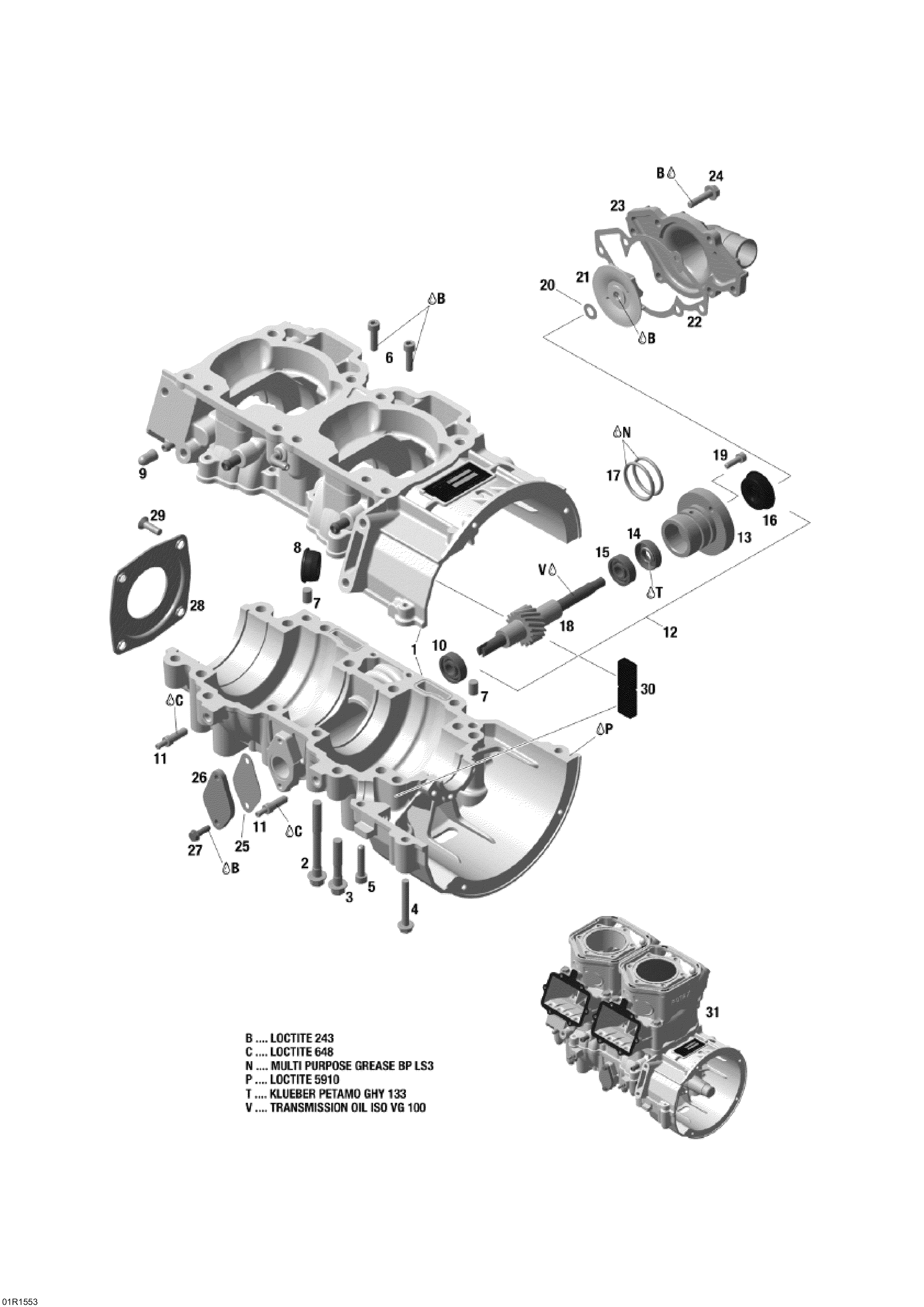

01- Crankcase _01R1553 для BRP Ski-Doo Expedition LE 600 E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    420890222 Crankcase Ass'y. Includes 1 To 10
    Crankcase Ass'y. Includes 1 To 10
  • 2
    420640836 Hex. Collar Screw M8 X 75
    Hex. Collar Screw M8 X 75
  • 3
    420640431 Hex. Collar Screw M8 X 45
    Hex. Collar Screw M8 X 45
  • 4
    420640311 Hex. Collar Screw M6 X 45
    Hex. Collar Screw M6 X 45
  • 5
    205063044 Socket Head Screw M6 X 30
    Socket Head Screw M6 X 30
  • 6
    420840401 Socket Head Screw M6 X 22
    Socket Head Screw M6 X 22
  • 7
    420632010 Center Pin 8 X 12
    Center Pin 8 X 12
  • 8
    420660890 Cable Grommet
    Cable Grommet
  • 9
    420960770 Cap
    Cap
  • 10
    420232100 Ball Bearing
    Ball Bearing
  • 11
    420956070 Check Valve
    Check Valve
  • 12
    420837421 Water Pump/Oil Pump Ass'y. Includes 12 To 18
    Water Pump/Oil Pump Ass'y. Includes 12 To 18
  • 14
    420230195 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 15
    420232100 Ball Bearing
    Ball Bearing
  • 16
    420650370 Rotary Seal. Included In Gasket Kit
    Rotary Seal. Included In Gasket Kit
  • 17
    420950890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 19
    420840511 Socket Head Screw M5 X 16
    Socket Head Screw M5 X 16
  • 20
    420227945 Washer
    Washer
  • 21
    420222505 Water Impeller
    Water Impeller
  • 22
    420931810 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 23
    420922630 Water Pump Housing
    Water Pump Housing
  • 24
    420240034 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 25
    420931566 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 26
    420810825 Cover Plate
    Cover Plate
  • 27
    420941925 Tapping Screw M5 X 16
    Tapping Screw M5 X 16
  • 28
    420812420 Cover
    Cover
  • 29
    420941436 Screw M6 X 20
    Screw M6 X 20
  • 30
    420960925 Rubber Stopper
    Rubber Stopper
  • 31
    420059353 Short Block 593 HO E-TEC
    Short Block 593 HO E-TEC
