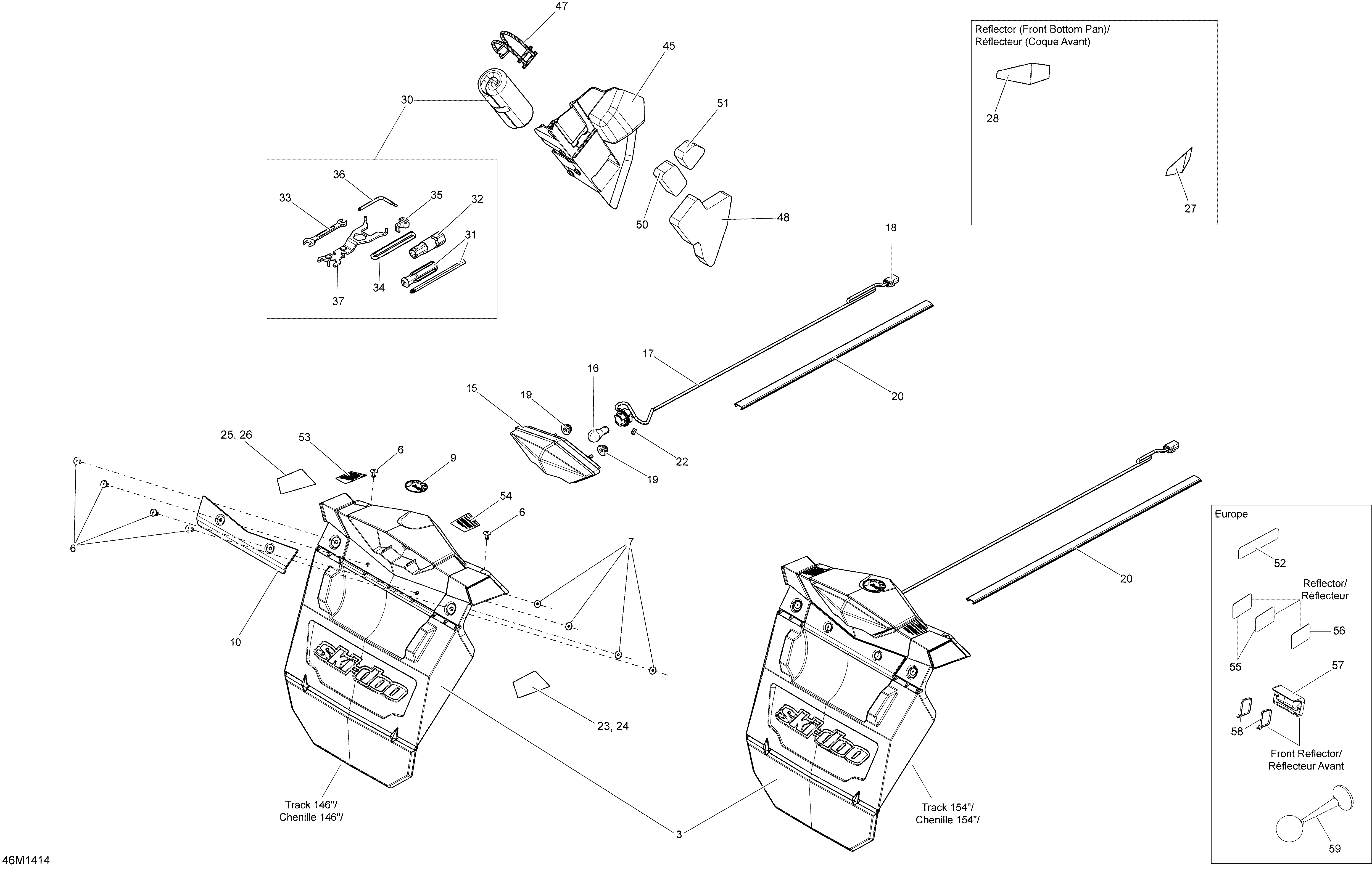

09- Utilities 600 для BRP Ski-Doo SUMMIT SPORT 600 XP 146 - 2014
-
№АртикулНазвание
-
3520000784 Snow GuardSnow Guard
-
6293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517124300 WasherWasher
-
9219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
10520000751 ReinforcementReinforcement
-
15520000679 Rear Light Ass'y. Includes 15 to 18Rear Light Ass'y. Includes 15 to 18
-
16520000758 BulbBulb
-
17520000680 Wiring Harness Ass'y. Includes 17 to 18Wiring Harness Ass'y. Includes 17 to 18
-
18515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
19705003666 Rubber GrommetRubber Grommet
-
20520000829 Radiator TrimRadiator Trim
-
22293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
24520001162 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
26520001161 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
27520000718 RH Front ReflectorRH Front Reflector
-
28520000719 LH Front ReflectorLH Front Reflector
-
30529000065 Tool Kit. Includes 30 to 37Tool Kit. Includes 30 to 37
-
31529000004 Screw DriverScrew Driver
-
32529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
33529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
34412500200 Starter Rope, MeterStarter Rope, Meter
-
35529000060 Starter GripStarter Grip
-
36520001142 Spacing ToolSpacing Tool
-
37520000988 Wrench SuspensionWrench Suspension
-
45520000842 Tool Kit RackTool Kit Rack
-
47520000528 LatchLatch
-
48520001059 FoamFoam
-
50520001061 FoamFoam
-
51520001062 FoamFoam
-
53516005590 Warning Decal, TrackWarning Decal, Track
-
54516005591 Warning Decal, CargoWarning Decal, Cargo
