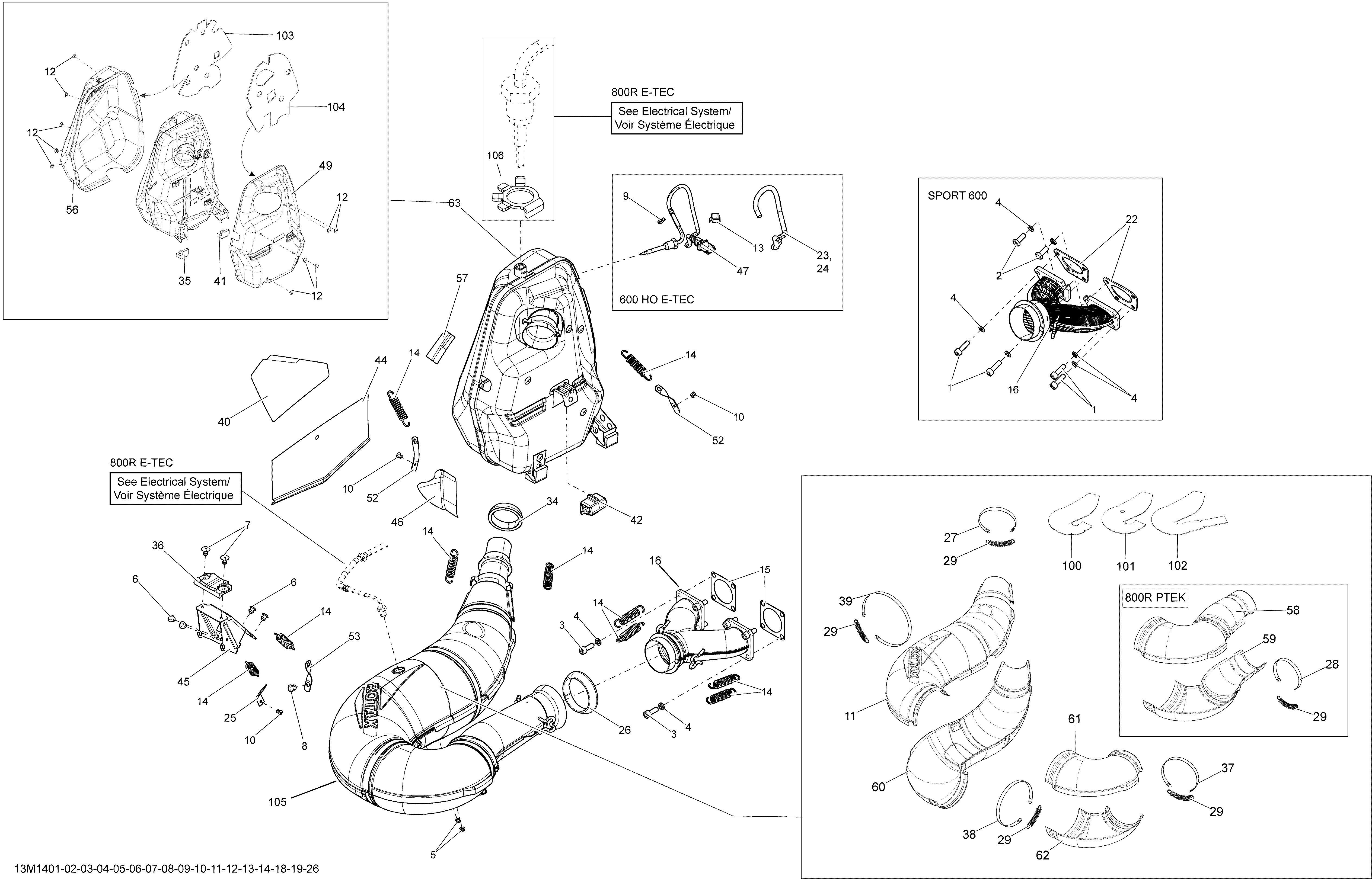

01- Exhaust System 600 для BRP Ski-Doo SUMMIT SPORT 600 XP 146 - 2014
-
№АртикулНазвание
-
1205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
2207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
3250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
4250200111 WasherWasher
-
5293150091 Henrob RivetHenrob Rivet
-
7293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
8293150147 Hemlock RivetHemlock Rivet
-
10390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
11514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
12390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
14415107100 SpringSpring
-
15420430482 GasketGasket
-
16420673131 Exhaust Manifold. 600Exhaust Manifold. 600
-
22420931610 GasketGasket
-
26514053487 Exhaust GasketExhaust Gasket
-
27514053499 Retaining StrapRetaining Strap
-
28514053536 Retaining StrapRetaining Strap
-
29514053643 SpringSpring
-
34514053812 Exhaust Gasket. 600Exhaust Gasket. 600
-
35514054274 Lower StopperLower Stopper
-
36514054275 BumperBumper
-
37514054408 Retaining StrapRetaining Strap
-
38514054409 Retaining StrapRetaining Strap
-
39514054410 Retaining StrapRetaining Strap
-
40514054488 Reflective SheetReflective Sheet
-
41514054496 Lower Stopper. 600Lower Stopper. 600
-
42514054606 Upper StopperUpper Stopper
-
46514054817 Heat ShieldHeat Shield
-
49514054967 LH DeflectorLH Deflector
-
52514054974 Spring BracketSpring Bracket
-
53514054975 Spring BracketSpring Bracket
-
56514054984 RH DeflectorRH Deflector
-
58514054988 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
59514054989 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
60514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
61514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
62514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
63514054972 Muffler Ass'y. 600Muffler Ass'y. 600
-
100514054487 Insulating WoolInsulating Wool
-
102514054273 Insulating WoolInsulating Wool
-
103514054711 RH Insulating WoolRH Insulating Wool
-
104514054299 LH Insulating WoolLH Insulating Wool
-
105514055064 Exhaust Tuned Pipe. 600Exhaust Tuned Pipe. 600
