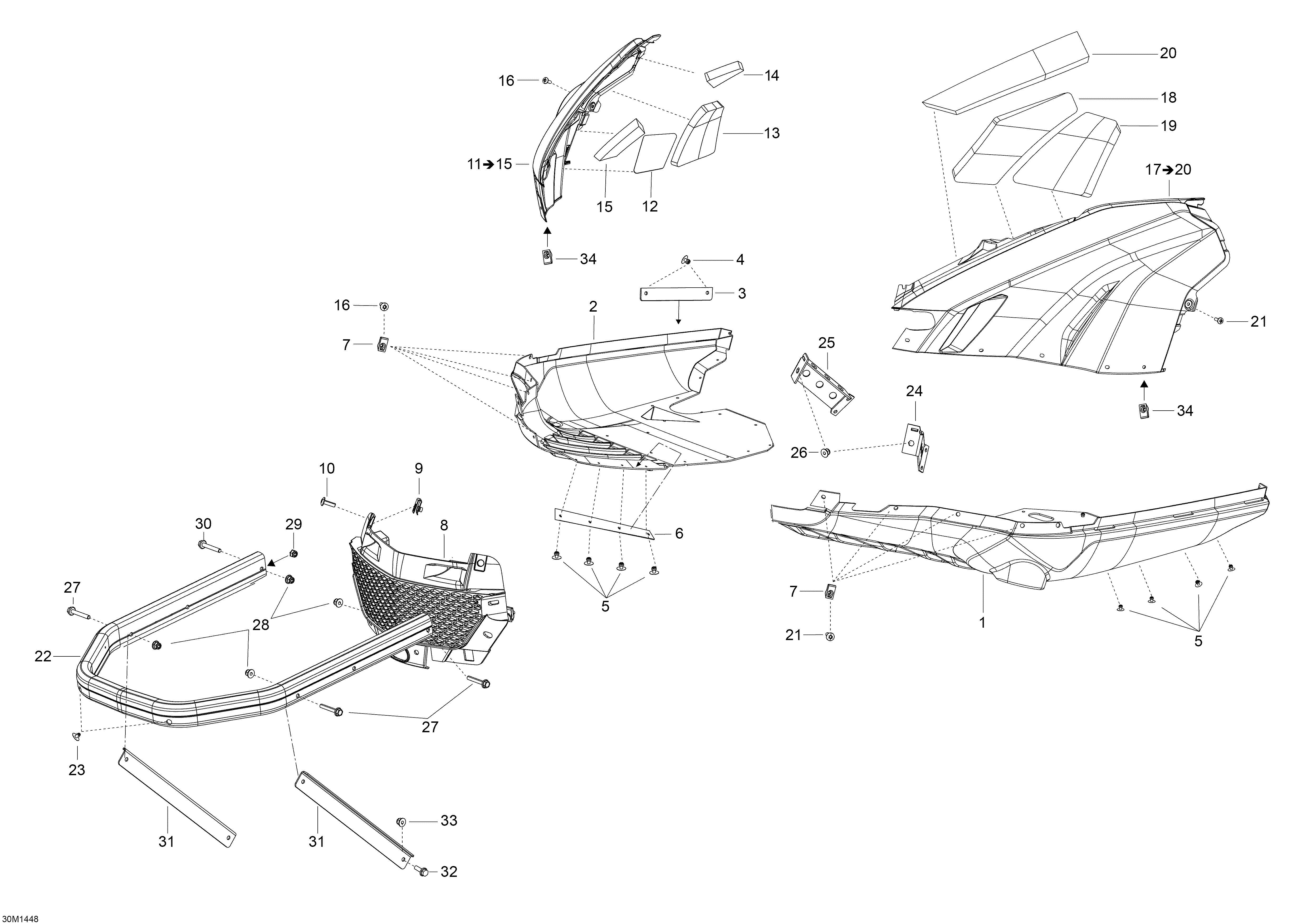

09- Bottom Pan для BRP Ski-Doo Skandic SWT 550F XU - 2014

  • №
    Артикул
    Название
  • 1
    502007046 Black Bottom-Pan Lower LH.
    Black Bottom-Pan Lower LH.
  • 2
    502006917 Black Bottom-Pan Lower RH.
    Black Bottom-Pan Lower RH.
  • 3
    502007255 Heat Isolation Plate
    Heat Isolation Plate
  • 4
    36005 Rivet
    Rivet
  • 5
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 6
    502007226 Support Plate
    Support Plate
  • 7
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 8
    502007140 Front Grill
    Front Grill
  • 9
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 10
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 11
    502007292 Black Bottom Pan Ass'y RH. Includes 11 To 15
    Black Bottom Pan Ass'y RH. Includes 11 To 15
  • 12
    502007133 Insulator
    Insulator
  • 13
    502007132 Insulator
    Insulator
  • 14
    502007008 Insulator
    Insulator
  • 15
    502007009 Insulator
    Insulator
  • 16
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 17
    502007294 Black Bottom Pan Ass'y LH. Includes 17 To 20
    Black Bottom Pan Ass'y LH. Includes 17 To 20
  • 18
    502007088 Insulator
    Insulator
  • 19
    502007131 Insulator
    Insulator
  • 20
    502007185 Insulator
    Insulator
  • 21
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 22
    502007115 Bumper
    Bumper
  • 23
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
  • 24
    502007137 Bottom Pan Fastener LH
    Bottom Pan Fastener LH
  • 25
    502007138 Bottom Pan Fastener RH
    Bottom Pan Fastener RH
  • 26
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 27
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 28
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 29
    518328217 Sleeve
    Sleeve
  • 30
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 31
    502006927 Bumper Support
    Bumper Support
  • 32
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 33
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 34
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
