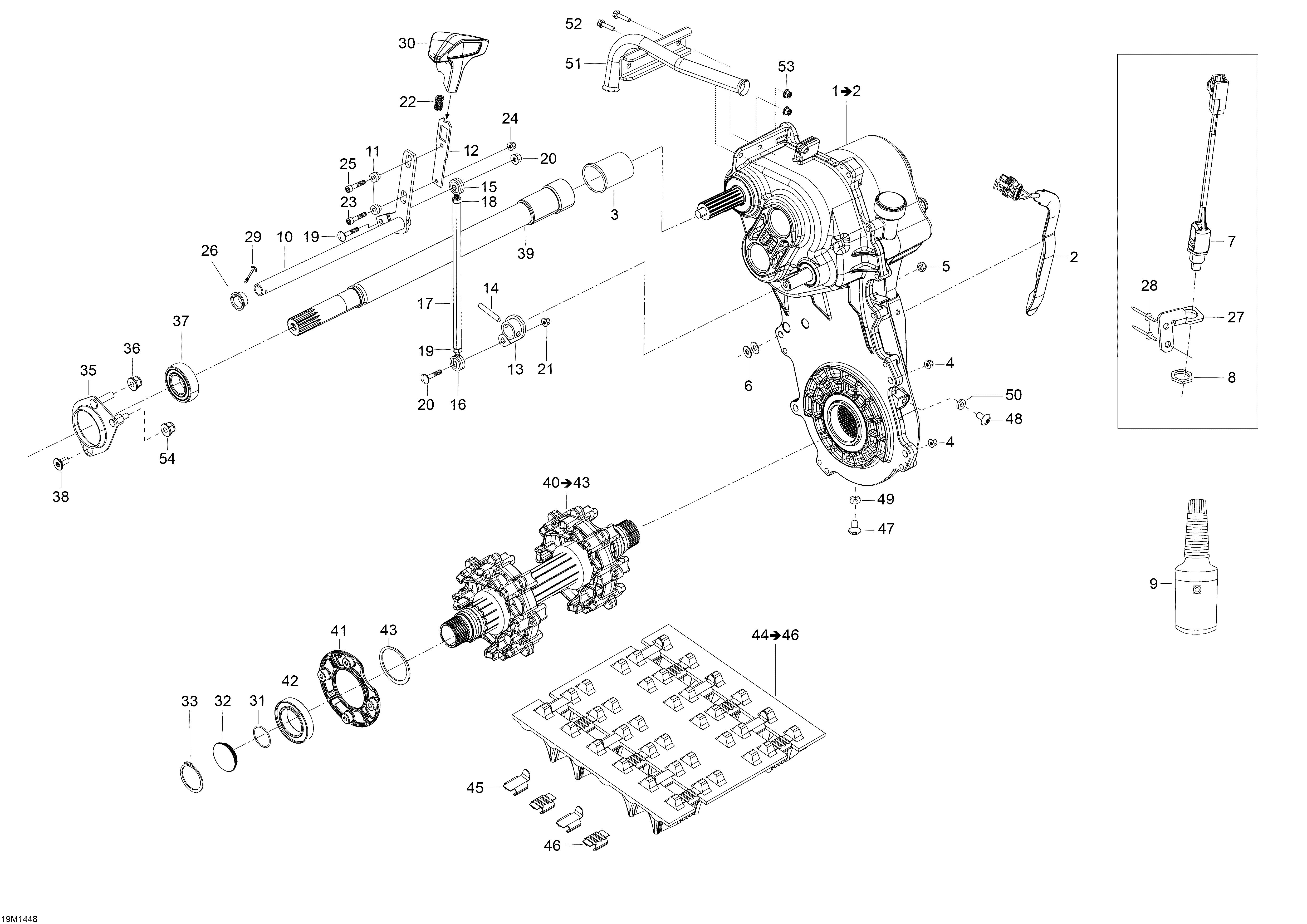

05- Drive System для BRP Ski-Doo Skandic SWT 550F XU - 2014
-
№АртикулНазвание
-
1504153219 Transmission Ass'y (Slow Ratio). Includes 1 To 2Transmission Ass'y (Slow Ratio). Includes 1 To 2
-
2504152896 SensorSensor
-
3504153054 Protective RubberProtective Rubber
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
6503193095 WasherWasher
-
7515176472 Switch Ass'ySwitch Ass'y
-
8250000373 Brass NutBrass Nut
-
9293600140 Gearbox oil 12 x 355mlGearbox oil 12 x 355ml
-
10504152887 Lever ShifterLever Shifter
-
11504152787 SleeveSleeve
-
12504152831 Shifter ArmShifter Arm
-
13504153131 Lever WeldedLever Welded
-
1441012 PinPin
-
15707000689 RH Ball JointRH Ball Joint
-
16707000690 LH Ball JointLH Ball Joint
-
17504152836 RodRod
-
18232061414 Hex. Nut M6Hex. Nut M6
-
19232066414 LH Hex. Nut M6LH Hex. Nut M6
-
20207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
22504152882 SpringSpring
-
23205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
24233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
25250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
26504152890 BearingBearing
-
27504152902 Sensor BracketSensor Bracket
-
28293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
29250400035 Cotter PinCotter Pin
-
30504152837 HandleHandle
-
31293300122 O-RingO-Ring
-
32504152619 Magnetic CapMagnetic Cap
-
33504152572 CirclipCirclip
-
35504153187 Bearing HousingBearing Housing
-
36233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37293350074 Ball BearingBall Bearing
-
38235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
39504153070 Counter ShaftCounter Shaft
-
40504153203 Drive Axle Ass'y. Includes 40 To 43Drive Axle Ass'y. Includes 40 To 43
-
41504152949 Housing BearingHousing Bearing
-
42293350059 Ball BearingBall Bearing
-
43504153207 ShimShim
-
44M13081 Track. Includes 44 To 46Track. Includes 44 To 46
-
47619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
48619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
49615580812 Gasket RingGasket Ring
-
50619230047 Seal RingSeal Ring
-
51512060828 Guide TubeGuide Tube
-
52207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
53233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
54233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
