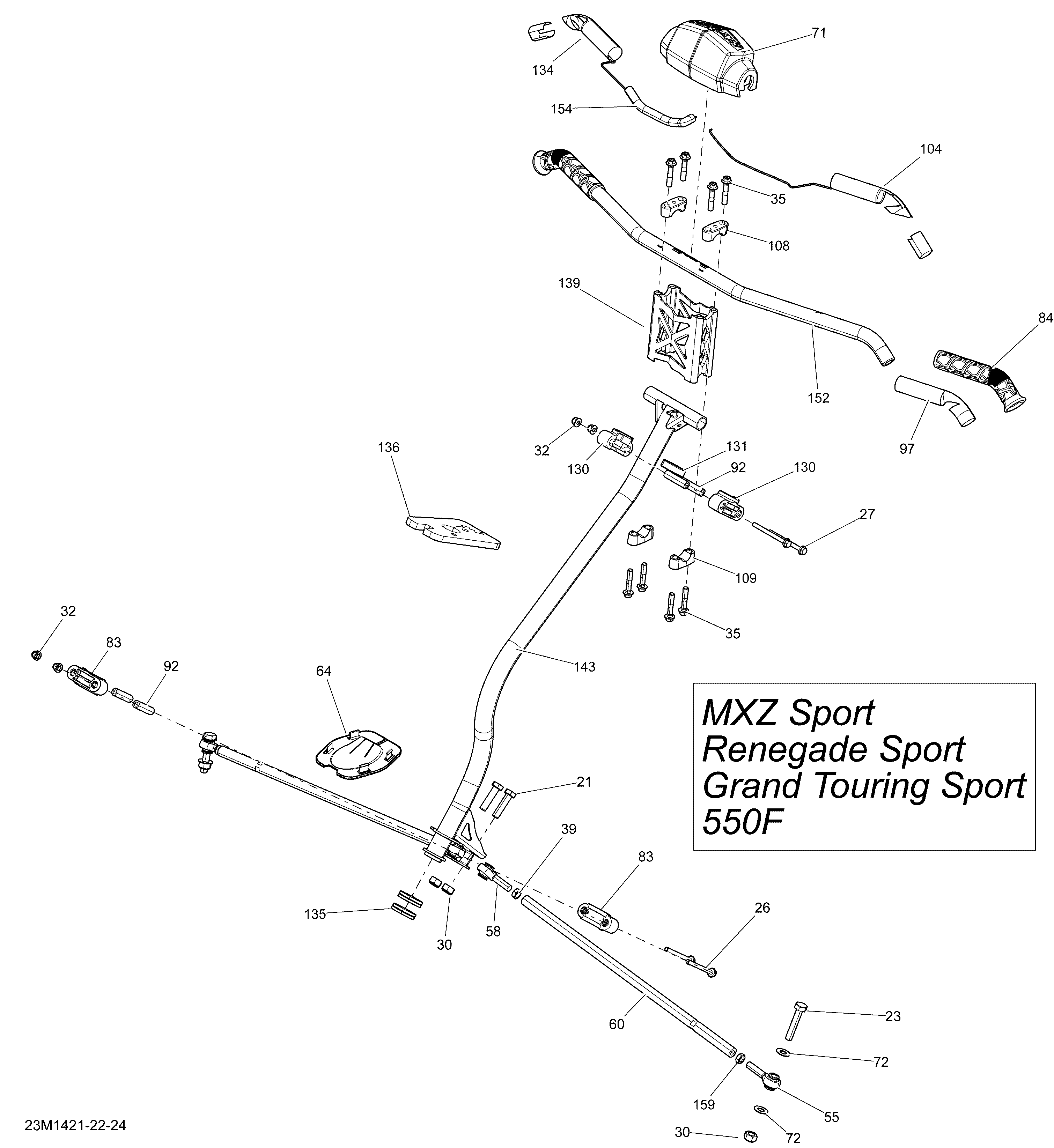

07- Steering _23M1421 для BRP Ski-Doo MXZ SPORT 550F XP - 2014
-
№АртикулНазвание
-
21207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
23207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
26207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
30233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
39250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
55506152019 RH Thread Ball JointRH Thread Ball Joint
-
58506152081 LH Thread Ball JointLH Thread Ball Joint
-
60506152496 Tie-RodTie-Rod
-
64506152163 PlatePlate
-
71506152192 Steering PadSteering Pad
-
72506152582 WasherWasher
-
83506152217 Lower Half-HousingLower Half-Housing
-
84506152486 GripGrip
-
92506152297 Housing BushingHousing Bushing
-
97506152611 InsulantInsulant
-
104506152578 Heating Element 20 WATTHeating Element 20 WATT
-
108506152395 Steering SupportSteering Support
-
109506152395 Steering SupportSteering Support
-
130506152508 Upper Half-HousingUpper Half-Housing
-
131506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
134506152579 Heating Element 20 WATTHeating Element 20 WATT
-
135506152518 Lower Vibration RingLower Vibration Ring
-
136506152521 CushionCushion
-
139506152571 Handlebar Extension (115)Handlebar Extension (115)
-
143506152586 Main Tube (Painted)Main Tube (Painted)
-
152506152709 Handle Bar (Painted)Handle Bar (Painted)
-
154515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
159732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
