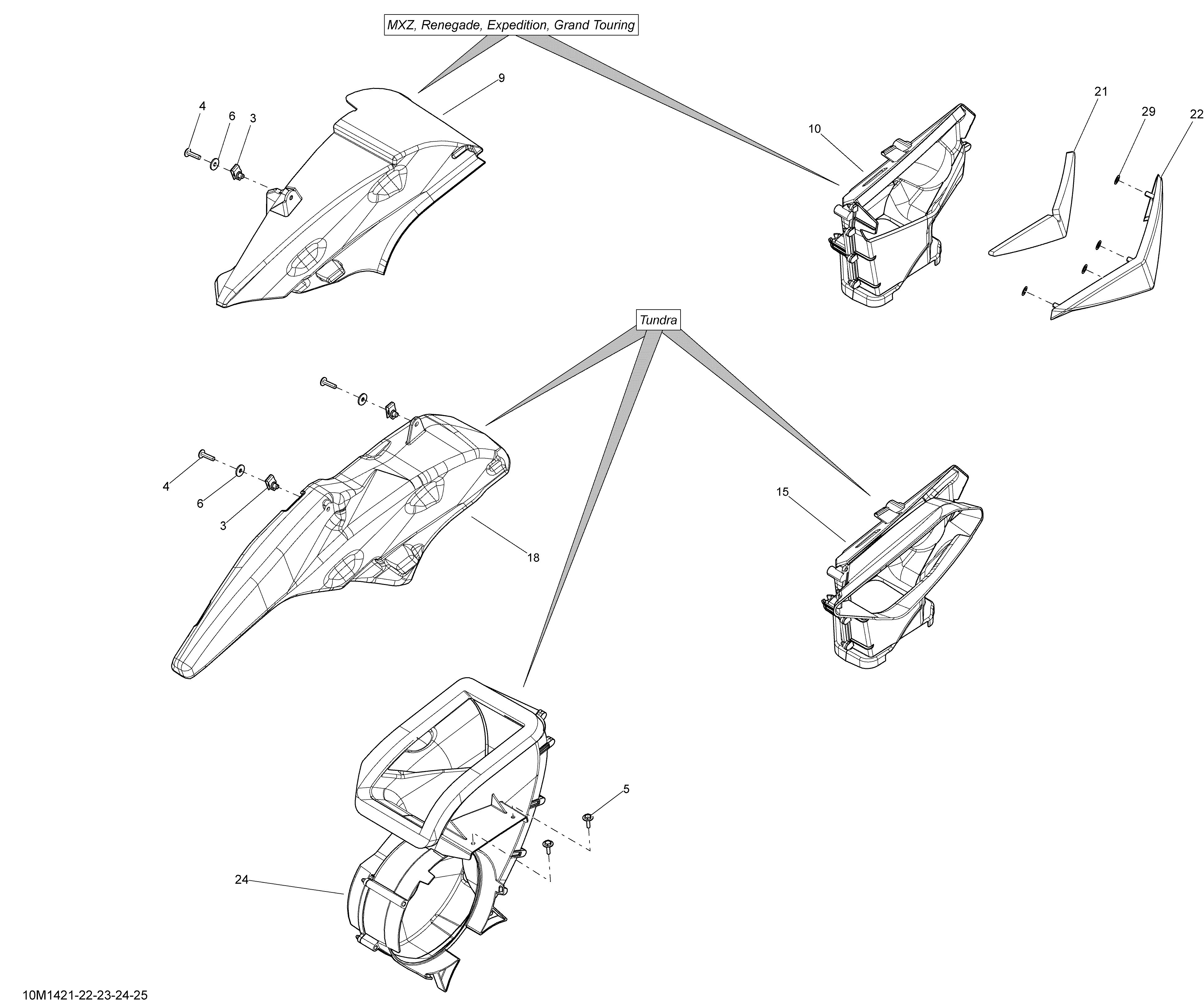

01- Cooling System _10M1421 для BRP Ski-Doo MXZ SPORT 550F XP - 2014
-
№АртикулНазвание
-
3250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000377 Plastite Screw Type K-40 M4 X 16Plastite Screw Type K-40 M4 X 16
-
6391301600 WasherWasher
-
9509000451 Air ChamberAir Chamber
-
10509000452 Outlet DuctOutlet Duct
-
21509000574 Air Inlet FoamAir Inlet Foam
-
22509000566 Outlet Air Deflector. Yellow ModelOutlet Air Deflector. Yellow Model
-
22509000585 Outlet Air Deflector. Black ModelOutlet Air Deflector. Black Model
-
22509000611 Outlet Air Deflector. White ModelOutlet Air Deflector. White Model
-
24509000840 Inlet DuctInlet Duct
