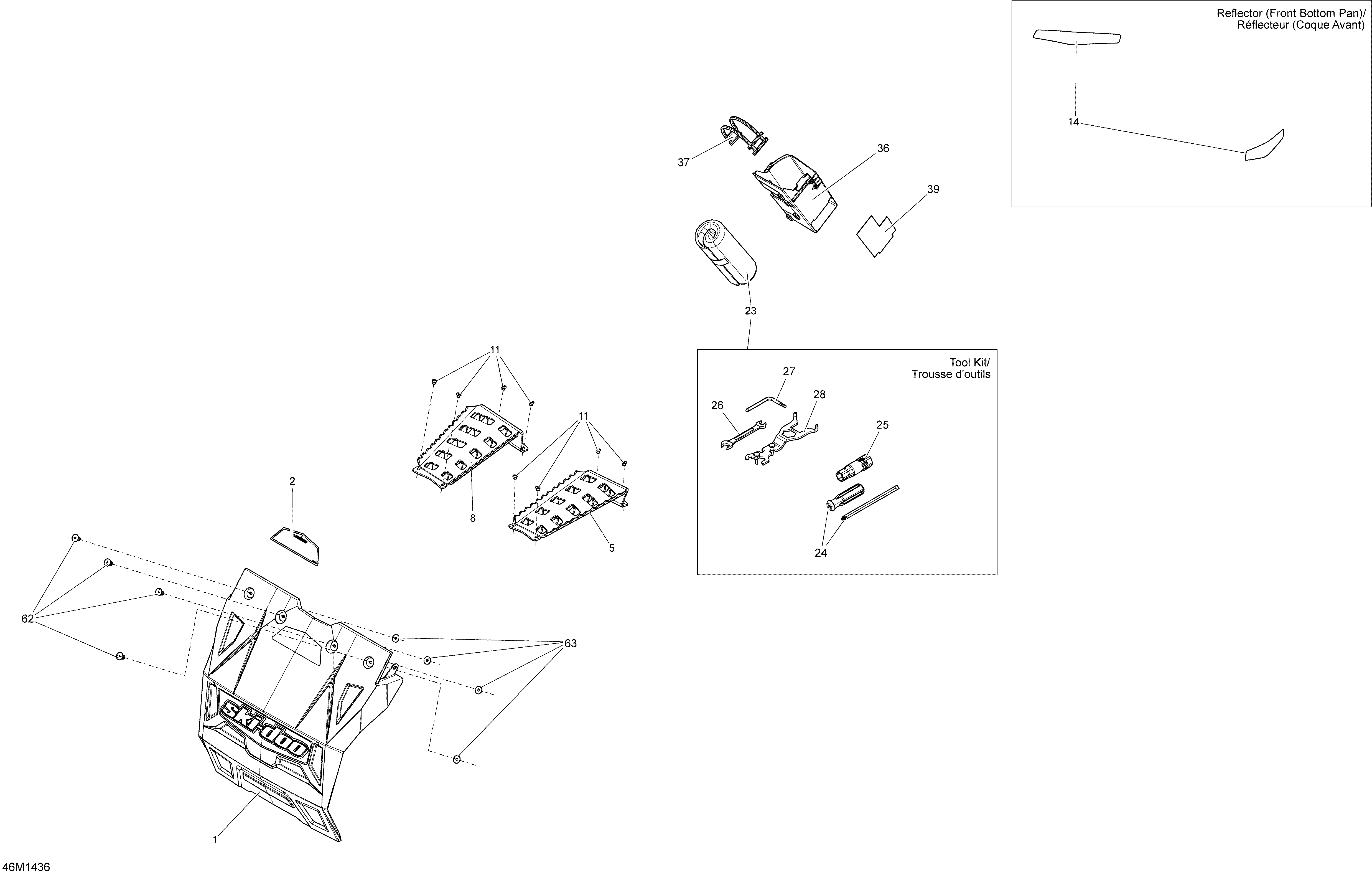

09- Utilities для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
1520001342 Snow GuardSnow Guard
-
2516005175 Warning Decal, TrackWarning Decal, Track
-
5520000768 RH Footrest, Mat BlackRH Footrest, Mat Black
-
8520000769 LH Footrest, Mat BlackLH Footrest, Mat Black
-
11293150102 Rivet 3/16Rivet 3/16
-
14520001234 Front Reflector XRFront Reflector XR
-
23529000066 Tool KitTool Kit
-
24529000004 Screw DriverScrew Driver
-
25529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
26529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
27520001142 Spacing ToolSpacing Tool
-
28520000988 Wrench SuspensionWrench Suspension
-
36520000894 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
39514054827 Reflective SheetReflective Sheet
-
62293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
63517124300 WasherWasher
