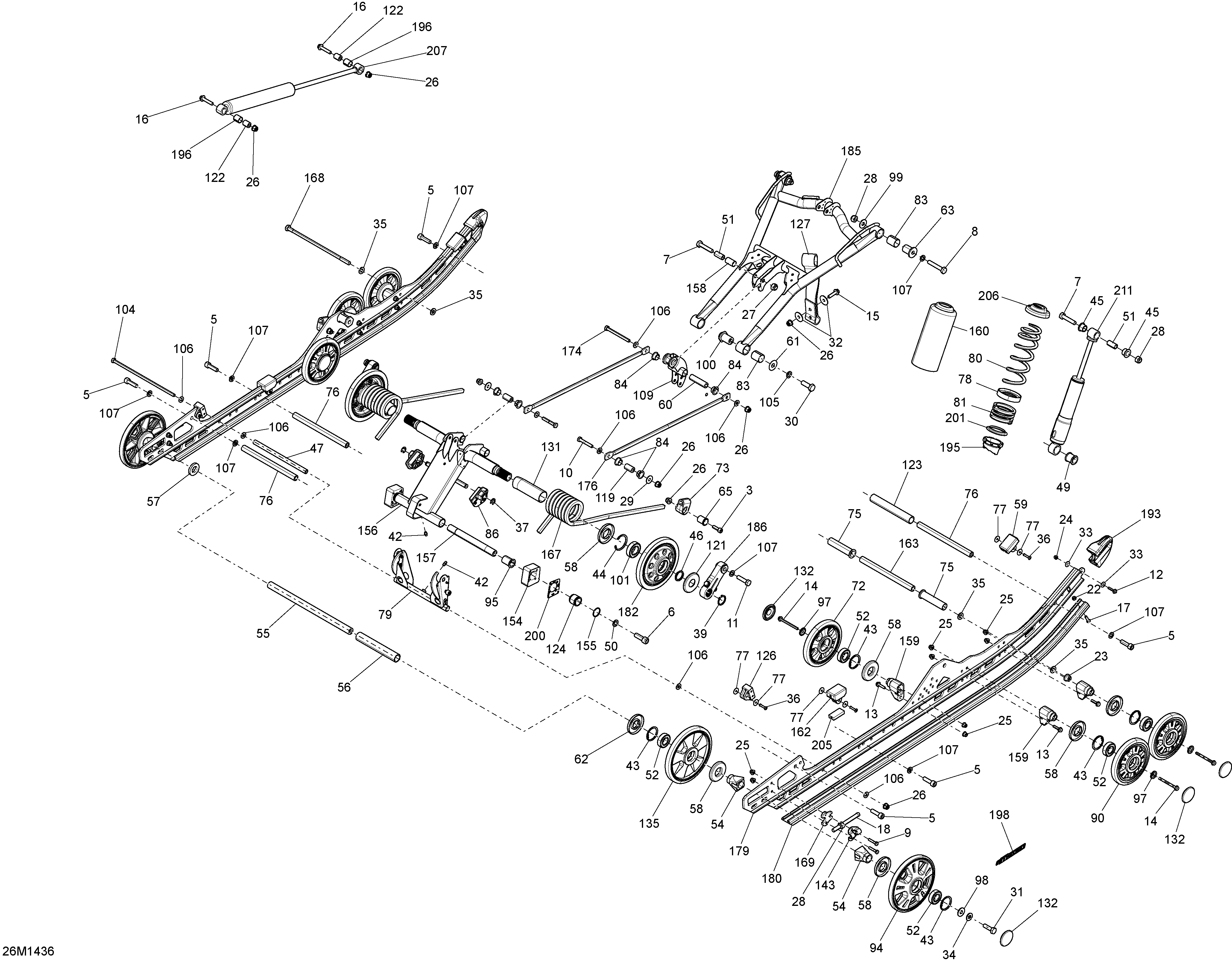

08- Rear Suspension для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
5205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
6205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
7207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
8207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
9207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
10207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
11207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
12207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
13207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
14207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
15207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
16207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
17208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
18230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
24233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
25233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
27233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
28233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
29234082410 Flat Washer 8 mmFlat Washer 8 mm
-
30250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
31250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
32250200128 Flat Washer 8 mmFlat Washer 8 mm
-
33250200140 WasherWasher
-
34250200141 Conical Spring Washer M10Conical Spring Washer M10
-
35250200143 Flat WasherFlat Washer
-
36293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293370013 E-CirclipE-Circlip
-
39293370080 Retaining RingRetaining Ring
-
42408200700 Grease FittingGrease Fitting
-
43415129371 Retaining RingRetaining Ring
-
44415129780 Retaining RingRetaining Ring
-
45503189117 CushionCushion
-
46503189146 Axle SpringAxle Spring
-
47503189156 Pivot Arm AxlePivot Arm Axle
-
49503189271 CushionCushion
-
50503189276 WasherWasher
-
51503189282 BushingBushing
-
52503190396 Ball BearingBall Bearing
-
54503190428 Rear Wheel SpacerRear Wheel Spacer
-
55503190429 Rear AxleRear Axle
-
56503190430 SpacerSpacer
-
57503190432 WasherWasher
-
58503190434 Labyrinth SealLabyrinth Seal
-
59503190576 Rubber StopperRubber Stopper
-
60503190643 Axle Bar (Long)Axle Bar (Long)
-
61503190656 WasherWasher
-
62503190682 Labyrinth SealLabyrinth Seal
-
63503190698 AxleAxle
-
65503190754 Retainer CushionRetainer Cushion
-
72503191152 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
73503191183 Spring SupportSpring Support
-
75503191259 Center BushingCenter Bushing
-
76503191260 Axle StrapAxle Strap
-
77503191273 WasherWasher
-
78503191281 Spring SpacerSpring Spacer
-
79503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
80503193160 Black Spring (189MM Long)Black Spring (189MM Long)
-
81503193480 Deep Black Spring (51mm Long)Deep Black Spring (51mm Long)
-
83503191554 BushingBushing
-
84503191555 Swivel BushingSwivel Bushing
-
86503191565 LH Cam AdjusterLH Cam Adjuster
-
86503191566 RH Cam AdjusterRH Cam Adjuster
-
90503191624 Full Moon Wheel Ass'y, 147 mmFull Moon Wheel Ass'y, 147 mm
-
94503191627 Full Moon Wheel Ass'y, 180 mmFull Moon Wheel Ass'y, 180 mm
-
95503191640 CushionCushion
-
97503191820 Wheel Cup M6Wheel Cup M6
-
98503191910 WasherWasher
-
99503191926 WasherWasher
-
100503191966 Lower AxleLower Axle
-
101503191982 Ball BearingBall Bearing
-
104503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
105503192491 WasherWasher
-
106503192494 WasherWasher
-
107503192496 WasherWasher
-
109503192531 RockerRocker
-
119503192555 Axle BarAxle Bar
-
121503192592 Labyrinth RingLabyrinth Ring
-
122503192606 Rear Shock AxleRear Shock Axle
-
123503192678 SpacerSpacer
-
124503192749 Guide BlockGuide Block
-
126503192750 Rubber StopperRubber Stopper
-
127503192360 Stopper StrapStopper Strap
-
131503192767 BushingBushing
-
132503192771 Black Wheel CapBlack Wheel Cap
-
135503192778 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
143503192583 TensionerTensioner
-
154503192918 LH Cam BlockLH Cam Block
-
154503192919 RH Cam BlockRH Cam Block
-
155503192921 O-RingO-Ring
-
156503193617 Rear Arm Ass'yRear Arm Ass'y
-
157503192981 Lower ShaftLower Shaft
-
158503193037 BushingBushing
-
159503193082 Casted SupportCasted Support
-
160503193663 ProtectorProtector
-
162503193101 Rubber StopperRubber Stopper
-
163503193142 Pivot AxlePivot Axle
-
167503193539 Black LH Spring, SquareBlack LH Spring, Square
-
167503193538 Black RH Spring, SquareBlack RH Spring, Square
-
168503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
169503193250 SpacerSpacer
-
174503193372 Screw M8 X 90Screw M8 X 90
-
176503193443 Link RodLink Rod
-
179503193448 Runner 137'' GTXRunner 137'' GTX
-
180503193449 Black Slider Shoe 137''Black Slider Shoe 137''
-
182503193451 Black Wheel Ass'y 165 mmBlack Wheel Ass'y 165 mm
-
185503193452 Front Arm Ass'yFront Arm Ass'y
-
186503193533 Link Ass'yLink Ass'y
-
193503193724 LH ProtectorLH Protector
-
193503193725 RH ProtectorRH Protector
-
195505070150 Adjustment CamAdjustment Cam
-
196505072663 Leg CushionLeg Cushion
-
198516004755 Runner DecalRunner Decal
-
200516004900 LH Block Sticker DecalLH Block Sticker Decal
-
200516004901 RH Block Sticker DecalRH Block Sticker Decal
-
201503191872 Spring GuideSpring Guide
-
205572084800 Reinforcement StopperReinforcement Stopper
-
206706200881 Spring StopperSpring Stopper
-
207503193647 Rear Shock HPGRear Shock HPG
-
211503193444 Central ShockCentral Shock
