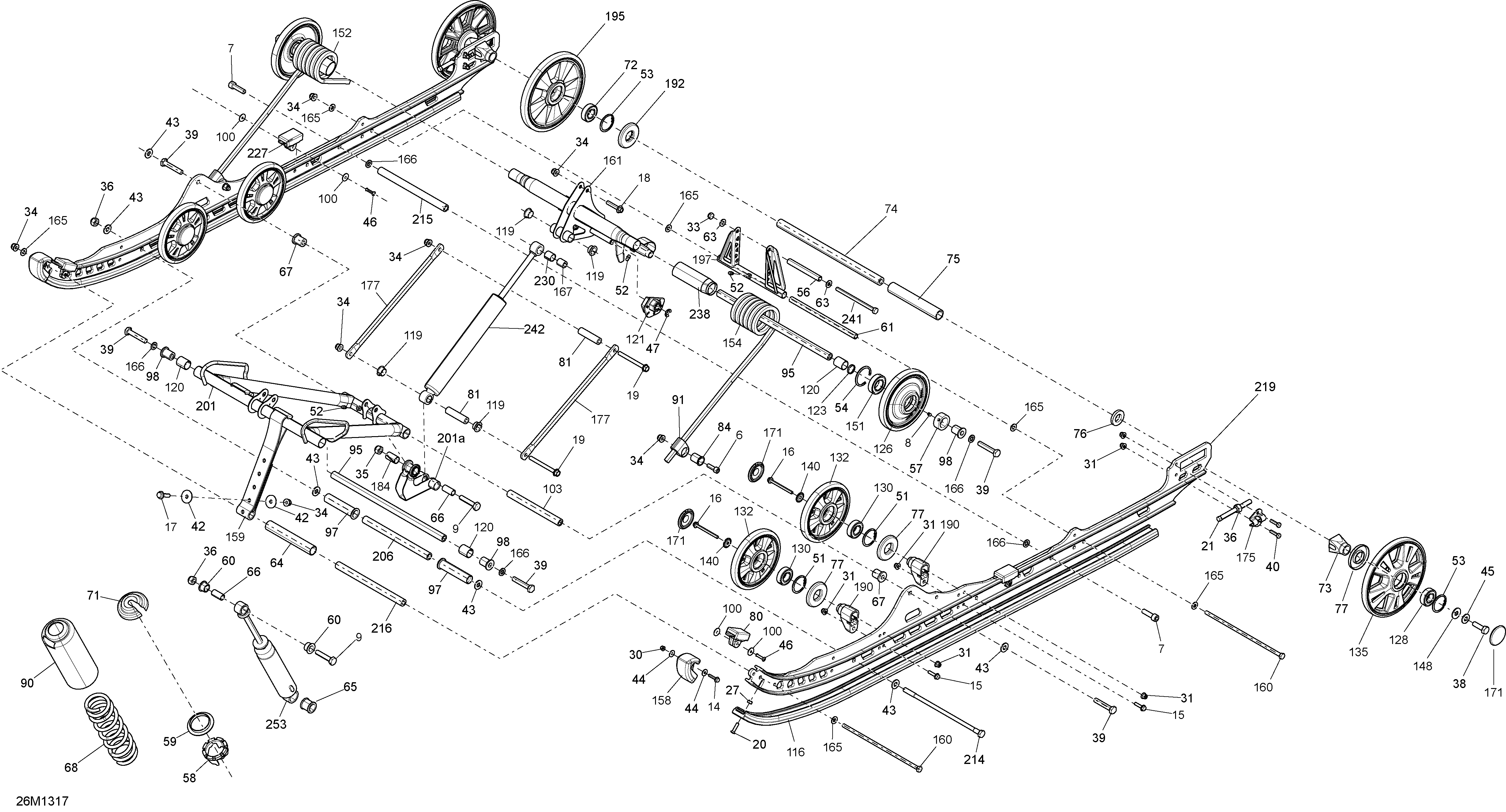

08- Rear Suspension для BRP Ski-Doo SUMMIT SPORT 800R PTEK XP - 2013
-
№АртикулНазвание
-
6205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
7205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
8206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
9207005044 Hex. Screw M10 X 50. XPHex. Screw M10 X 50. XP
-
9207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
14207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
15207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
16207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
17207683044 Hex. Flanged Screw M8 X 30. XPHex. Flanged Screw M8 X 30. XP
-
18207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
19207688544 Hex. Flanged ScewHex. Flanged Scew
-
20208562531 Phillips Screw M6 X 25. SPORT 146Phillips Screw M6 X 25. SPORT 146
-
20208562531 Phillips Screw M6 X 25. SPORT 154Phillips Screw M6 X 25. SPORT 154
-
21230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
27232561414 Elastic Stop Nut M6. SPORT 146Elastic Stop Nut M6. SPORT 146
-
27232561414 Elastic Stop Nut M6. SPORT 154Elastic Stop Nut M6. SPORT 154
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
31233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33232581414 Hex. Elastic Stop Nut M8. XPHex. Elastic Stop Nut M8. XP
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
34233281466 Elastic Flang Nut M8. XPElastic Flang Nut M8. XP
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
35233601416 Elastic Locking Nut M10. XPElastic Locking Nut M10. XP
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
38250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
39250000605 Hex. ScrewS.GRIP M10 X 55. XPHex. ScrewS.GRIP M10 X 55. XP
-
39250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
39250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
40250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
42250200128 Flat Washer 8 mm. XPFlat Washer 8 mm. XP
-
43250200138 WasherWasher
-
43250200138 WasherWasher
-
44250200140 WasherWasher
-
45234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
46293150142 Pop Rivet 3/16''. SUMMITPop Rivet 3/16''. SUMMIT
-
47293370013 E-Circlip. XPE-Circlip. XP
-
51415129371 Retaining RingRetaining Ring
-
52408200700 Grease Fitting. XPGrease Fitting. XP
-
52408200700 Grease Fitting. XPGrease Fitting. XP
-
53415129371 Retaining Ring. SUMMIT XPRetaining Ring. SUMMIT XP
-
53415129371 Retaining Ring. SUMMIT XPRetaining Ring. SUMMIT XP
-
54415129780 Retaining Ring. SUMMIT XPRetaining Ring. SUMMIT XP
-
56503144300 Upper Axle, Pivot Arm. XPUpper Axle, Pivot Arm. XP
-
57503168800 Retaining RingRetaining Ring
-
58505070150 Adjustment Cam. SPORTAdjustment Cam. SPORT
-
59503191872 Spring Guide. SPORTSpring Guide. SPORT
-
60503189117 Cushion. SPORTCushion. SPORT
-
61503189156 Pivot Arm AxlePivot Arm Axle
-
63503189157 Washer. XPWasher. XP
-
64503191448 Spacer. XPSpacer. XP
-
65503189271 Cushion. SPORTCushion. SPORT
-
66503189282 Bushing. XPBushing. XP
-
66503189282 Bushing. SPORTBushing. SPORT
-
67503189324 Cushion. XPCushion. XP
-
68503191882 Spring. SPORTSpring. SPORT
-
71706200881 Spring Stopper. SPORTSpring Stopper. SPORT
-
72503190396 Ball Bearing. SUMMIT XPBall Bearing. SUMMIT XP
-
73503190428 Rear Wheel Spacer. SUMMIT XPRear Wheel Spacer. SUMMIT XP
-
74503190429 Rear Axle. XPRear Axle. XP
-
75503190430 Spacer. SUMMIT XPSpacer. SUMMIT XP
-
76503190432 Washer. SUMMIT XPWasher. SUMMIT XP
-
77503190434 Labyrinth SealLabyrinth Seal
-
77503190434 Labyrinth Seal. SUMMIT XPLabyrinth Seal. SUMMIT XP
-
227503190576 Rubber Stopper. SUMMIT XPRubber Stopper. SUMMIT XP
-
81503190643 Bar AxleBar Axle
-
84503190754 Retainer CushionRetainer Cushion
-
90503191126 Protector. SPORTProtector. SPORT
-
91503191183 Spring SupportSpring Support
-
95503191215 Upper ShaftUpper Shaft
-
95503191215 Upper ShaftUpper Shaft
-
97503191259 Center BushingCenter Bushing
-
98503191262 BushingBushing
-
98503191262 BushingBushing
-
100503191273 Washer. SUMMITWasher. SUMMIT
-
103503191279 Lower Shaft. XPLower Shaft. XP
-
116503191499 Slider Shoe 146''. SPORT 146Slider Shoe 146''. SPORT 146
-
116503191198 Slider Shoe 154''. SPORT 154Slider Shoe 154''. SPORT 154
-
119503191555 Swivel Bushing. XPSwivel Bushing. XP
-
119503191555 Swivel Bushing. XPSwivel Bushing. XP
-
120503191556 Extended Bushing. XPExtended Bushing. XP
-
120503191556 Extended Bushing. XPExtended Bushing. XP
-
121503191565 LH Cam Adjuster. XPLH Cam Adjuster. XP
-
121503191566 RH Cam Adjuster. XPRH Cam Adjuster. XP
-
123503191651 Washer. XPWasher. XP
-
126503191738 Wheel, 155 mm. SUMMIT XPWheel, 155 mm. SUMMIT XP
-
128503190396 Ball Bearing. SUMMIT XPBall Bearing. SUMMIT XP
-
130503190396 Ball BearingBall Bearing
-
132503191755 Wheel 152, BlackWheel 152, Black
-
135503191741 Wheel 200, Black. SUMMIT XPWheel 200, Black. SUMMIT XP
-
140503191820 Wheel Cup M6Wheel Cup M6
-
148503191910 WasherWasher
-
151503191982 Ball Bearing. SUMMIT XPBall Bearing. SUMMIT XP
-
152503193002 RH Square Spring. SUMMITRH Square Spring. SUMMIT
-
154503193003 LH Square Spring. SUMMITLH Square Spring. SUMMIT
-
158503192299 Runner ProtectorRunner Protector
-
159503192360 Stopper Strap. XPStopper Strap. XP
-
160503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
160503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
161503192464 Rear Arm. XPRear Arm. XP
-
165503192494 WasherWasher
-
165503192494 WasherWasher
-
166503192496 WasherWasher
-
166503192496 WasherWasher
-
166503192496 WasherWasher
-
167503192606 Rear Shock AxleRear Shock Axle
-
171503192771 Wheel CapWheel Cap
-
171503192771 Wheel Cap. TROUSSE SUM XPWheel Cap. TROUSSE SUM XP
-
175503192814 TensionerTensioner
-
177503192900 Acceleration Link RodAcceleration Link Rod
-
184503193037 Bushing. XPBushing. XP
-
190503193082 Casted SupportCasted Support
-
192503190682 Labyrinth Seal. SUMMIT XPLabyrinth Seal. SUMMIT XP
-
195503193098 Wheel 200 Black. SUMMIT XPWheel 200 Black. SUMMIT XP
-
197503191209 Pivot Arm. XPPivot Arm. XP
-
201503193463 Front Arm Ass'y. XPFront Arm Ass'y. XP
-
201a503193464 RockerRocker
-
206503193142 Pivot AxlePivot Axle
-
214503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
215503193322 Lower ShaftLower Shaft
-
216503193332 Strap AxleStrap Axle
-
219503193345 Runner USINE 146. SPORT 146Runner USINE 146. SPORT 146
-
219503193338 Runner USINE 154. SPORT 154Runner USINE 154. SPORT 154
-
230505072663 BushingBushing
-
238572080700 Bushing. XPBushing. XP
-
241732601197 Bolt M8, Short. XPBolt M8, Short. XP
-
242503193189 Rear ShockRear Shock
-
253503192209 Center Shock. SPORTCenter Shock. SPORT
