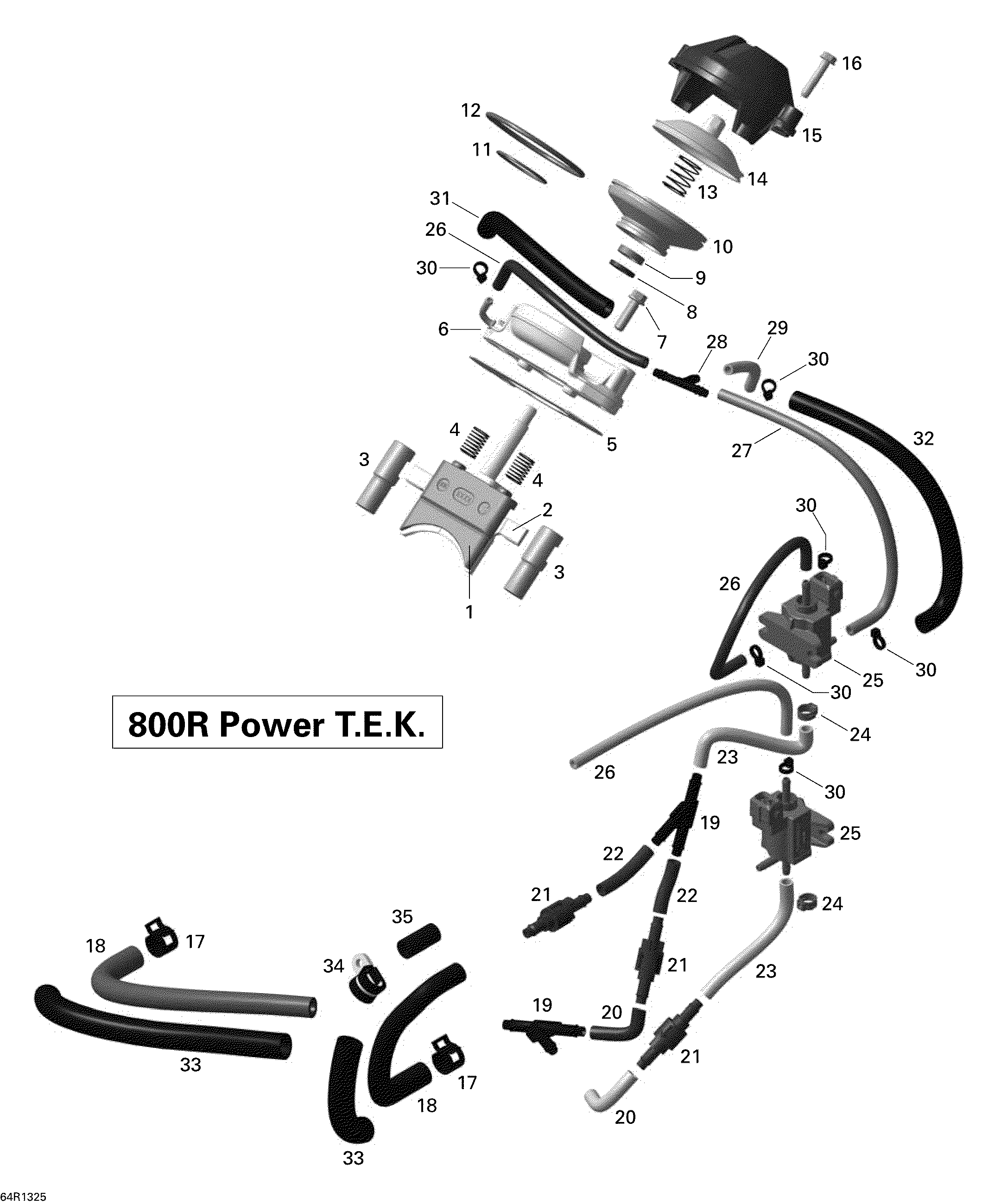

01- 3D Rave для BRP Ski-Doo SUMMIT SPORT 800R PTEK XP - 2013
-
№АртикулНазвание
-
1420854900 Upper Exhaust ValveUpper Exhaust Valve
-
2420854909 Lower Exhaust ValveLower Exhaust Valve
-
3420854890 Exhaust ValveExhaust Valve
-
4420238556 SpringSpring
-
5420430030 GasketGasket
-
6420854887 Valve HousingValve Housing
-
7420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420431380 Gasket RingGasket Ring
-
9420950730 Oil SealOil Seal
-
10420260725 BellowsBellows
-
11420838255 Hose SpringHose Spring
-
12420939285 Hose SpringHose Spring
-
13420238557 SpringSpring
-
14420854444 Exhaust Valve PistonExhaust Valve Piston
-
15420812710 Rave CoverRave Cover
-
16420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
17420853511 ClampClamp
-
18420460782 Molded HoseMolded Hose
-
19420460635 Y-FittingY-Fitting
-
20420460851 High Pressure Air Hose, 40 mmHigh Pressure Air Hose, 40 mm
-
21420660543 Check ValveCheck Valve
-
22420460855 High Pressure Air Hose, 35 mmHigh Pressure Air Hose, 35 mm
-
23420460856 High Pressure Air Hose, 90 mmHigh Pressure Air Hose, 90 mm
-
24420853658 Gear ClampGear Clamp
-
25270600005 Solenoid ValveSolenoid Valve
-
26420660571 High Pressure Air Hose, 180 mmHigh Pressure Air Hose, 180 mm
-
27420660575 High Pressure Air Hose, 220 mmHigh Pressure Air Hose, 220 mm
-
28293710068 T-FittingT-Fitting
-
29420660572 High Pressure Air Hose, 50 mmHigh Pressure Air Hose, 50 mm
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
31415079900 Tubing 10 mmTubing 10 mm
-
32415079900 Tubing 10 mmTubing 10 mm
-
33409901800 Tubing 13 mmTubing 13 mm
-
34420851250 ClampClamp
-
35409901800 Tubing 13 mmTubing 13 mm
