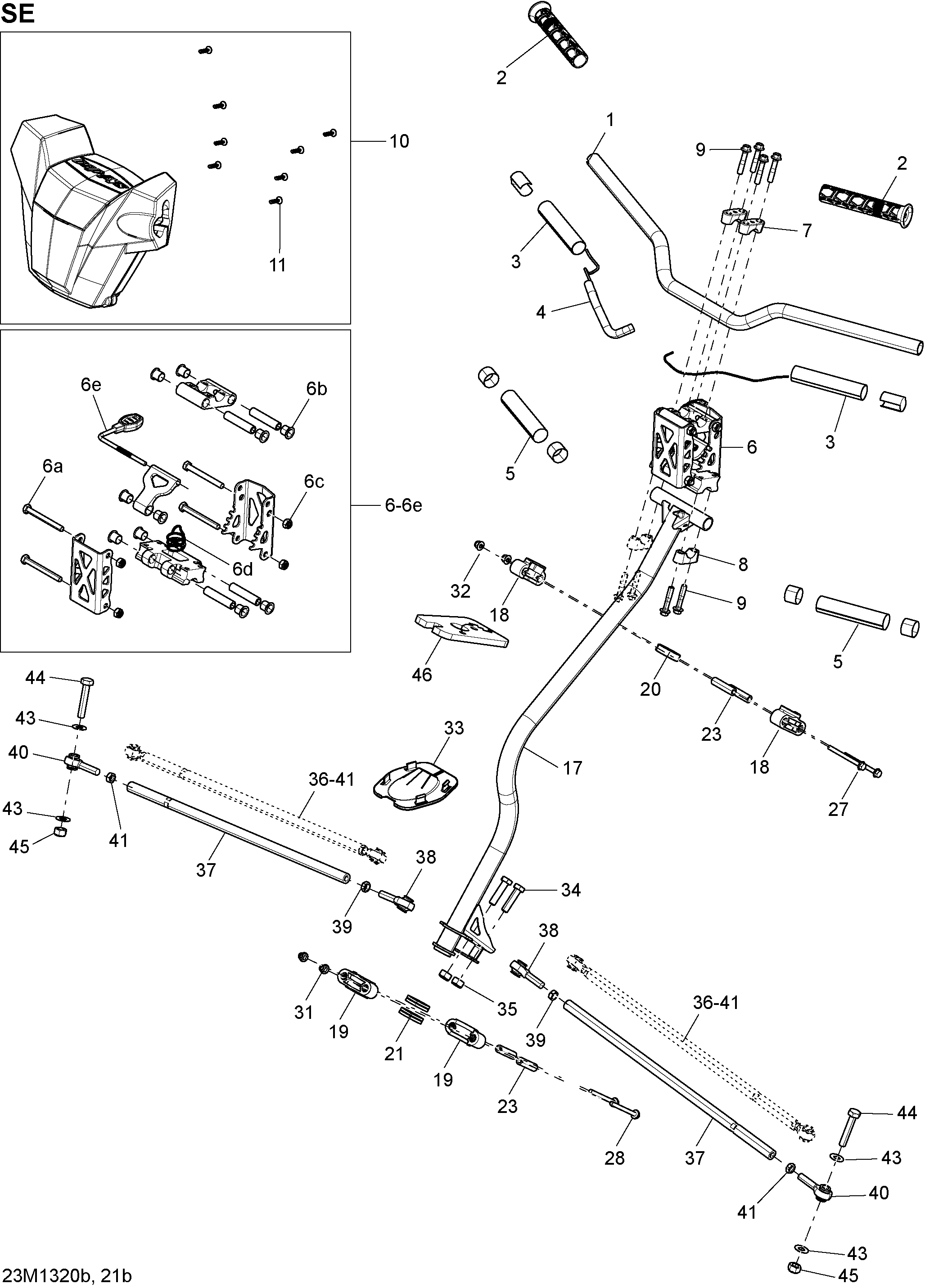

07- Steering SE для BRP Ski-Doo GSX SE 800RE XR - 2013
-
№АртикулНазвание
-
1506152304 Handle BarHandle Bar
-
2506152501 GripGrip
-
3506152605 Heating Element 20 WATTHeating Element 20 WATT
-
4515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
5506152423 InsulantInsulant
-
6506152197 Adjustable HandlebarAdjustable Handlebar
-
6a207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
6b506152520 CushionCushion
-
6c233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6D506152184 SpringSpring
-
6e506152411 Handle Ass'yHandle Ass'y
-
7506152395 Steering SupportSteering Support
-
8506152395 Steering SupportSteering Support
-
9250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
10506152330 Steering Pad (Adjustable)Steering Pad (Adjustable)
-
10506152601 Steering Pad (Adjustable)Steering Pad (Adjustable)
-
11250000400 Torx Screw K50 X 20Torx Screw K50 X 20
-
17506152584 Main Tube (Painted)Main Tube (Painted)
-
18506152508 Upper Half-HousingUpper Half-Housing
-
19506152217 Lower Half-HousingLower Half-Housing
-
20506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
21506152518 Lower Vibration RingLower Vibration Ring
-
23506152297 Housing BushingHousing Bushing
-
27207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
28207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33506152163 PlatePlate
-
34207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
37506152496 Tie-RodTie-Rod
-
38506152081 LH Thread Ball JointLH Thread Ball Joint
-
39250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
40506152019 RH Thread Ball JointRH Thread Ball Joint
-
41732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
43506152582 WasherWasher
-
44207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
45250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
46506152521 CushionCushion
