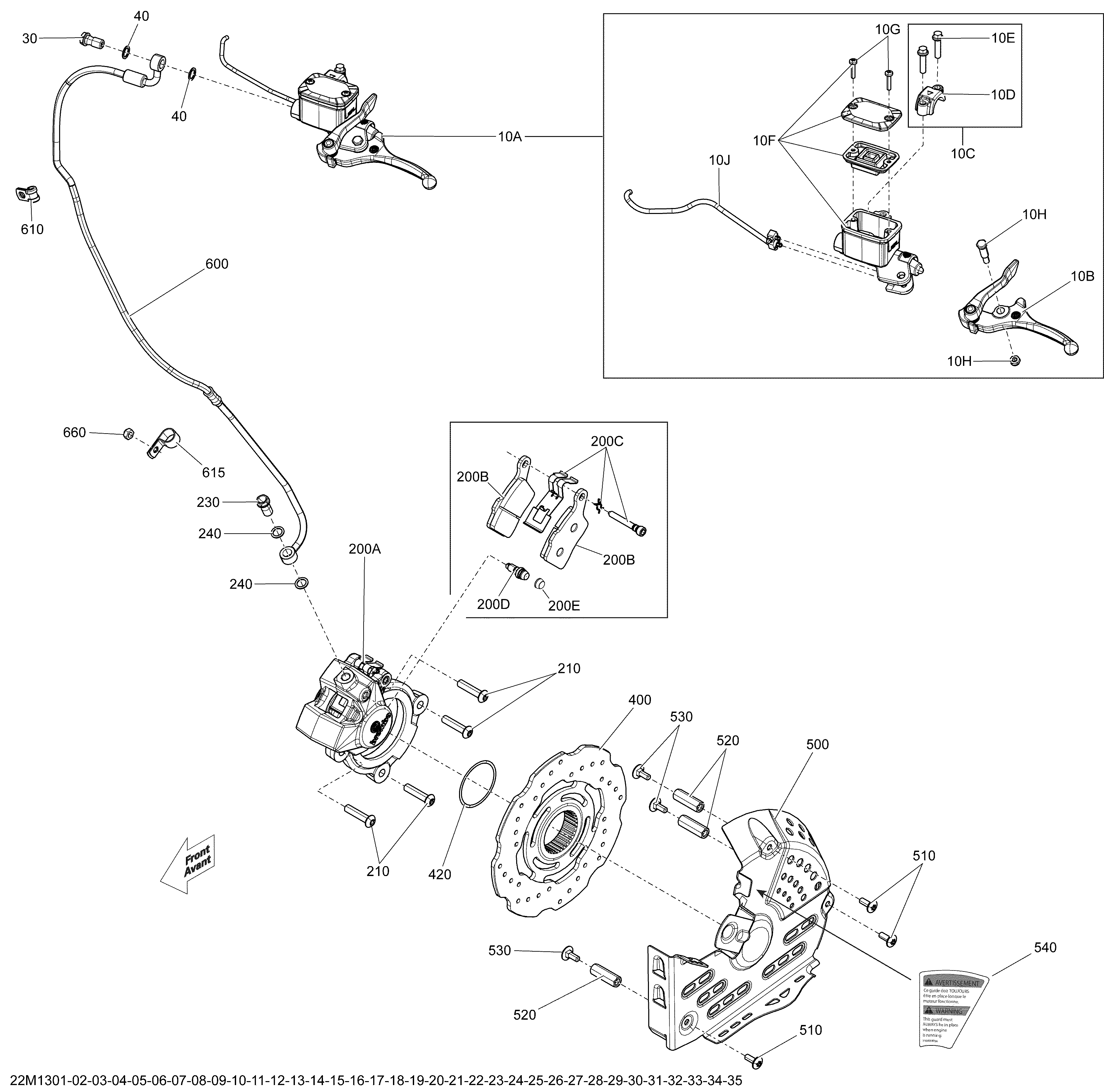

06- Hydraulic Brakes для BRP Ski-Doo GSX SE 800RE XR - 2013

  • №
    Артикул
    Название
  • 10a
    507032518 Master Cylinder Ass'y. Includes 10A to 10J
    Master Cylinder Ass'y. Includes 10A to 10J
  • 10b
    507032476 Lever
    Lever
  • 10c
    507032477 Clamp And Screw Kit. Includes 10C to 10E
    Clamp And Screw Kit. Includes 10C to 10E
  • 10e
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 10f
    507032478 Master Cylinder Reservoir Ass'y. Includes 10F to 10G
    Master Cylinder Reservoir Ass'y. Includes 10F to 10G
  • 10g
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 10h
    415030000 Pin Ass'y
    Pin Ass'y
  • 10j
    507032479 Microswitch
    Microswitch
  • 30
    507032539 Banjo Bolt
    Banjo Bolt
  • 40
    705600310 Copper Washer
    Copper Washer
  • 200a
    507032498 Brake Caliper Ass'y. Includes 200A to 200E
    Brake Caliper Ass'y. Includes 200A to 200E
  • 200b
    507032473 Brake Pads Kit
    Brake Pads Kit
  • 200c
    507032474 Pin, Clip & Spring Kit
    Pin, Clip & Spring Kit
  • 200d
    507032475 Bleeder
    Bleeder
  • 200e
    414989700 Boot
    Boot
  • 210
    250000301 Torx Screw M8 X 35, Scotch Grip
    Torx Screw M8 X 35, Scotch Grip
  • 230
    507032539 Banjo Bolt
    Banjo Bolt
  • 240
    705600310 Copper Washer
    Copper Washer
  • 400
    507032487 Disk
    Disk
  • 420
    293300134 O-Ring
    O-Ring
  • 500
    507032492 Disk Protector, Black
    Disk Protector, Black
  • 510
    250000223 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 520
    507032497 Threaded Tube
    Threaded Tube
  • 530
    207761644 Carriage Bolt M6 X 16
    Carriage Bolt M6 X 16
  • 540
    516005525 Warning Decal
    Warning Decal
  • 600
    507032528 Hose
    Hose
  • 610
    705600459 Clamp
    Clamp
  • 615
    518321570 Open Clamp
    Open Clamp
  • 660
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
