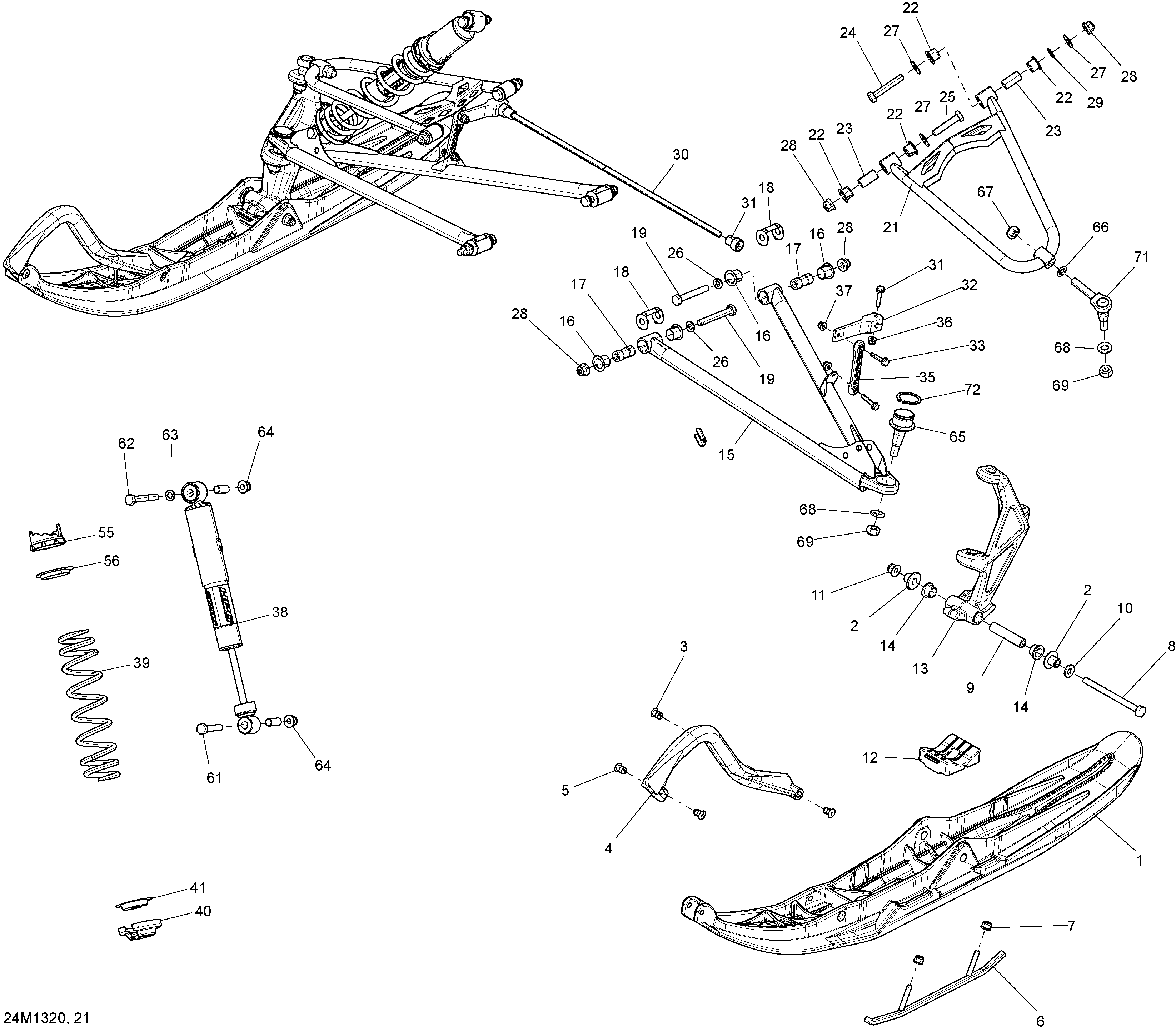

07- Front Suspension And Ski для BRP Ski-Doo GSX LE & SE 1200 XR - 2013

№

Артикул

Название
1

505072943 RH Pilot Ski, Black

RH Pilot Ski, Black
1

505072942 LH Pilot Ski, Black

LH Pilot Ski, Black
2

505071781 Cushion

Cushion
3

505071812 Retainer

Retainer
4

505070963 Handle, Black. Black

Handle, Black. Black
4

505071556 Handle, Full Moon. Full Moon

Handle, Full Moon. Full Moon
5

505072133 Retainer

Retainer
6

860200141 Carbide Runner Kit. GSX

Carbide Runner Kit. GSX
7

233281414 Hex. Flanged Elastic Nut M8. GSX

Hex. Flanged Elastic Nut M8. GSX
8

230003054 Hex Screw M10 X 130

Hex Screw M10 X 130
9

506133300 Spacer

Spacer
10

503192496 Washer

Washer
11

233201464 Hex. Elast. Flanged Nut M10

Hex. Elast. Flanged Nut M10
12

505072594 Ski Stopper

Ski Stopper
13

505073042 RH Modified Ski Leg. LE

RH Modified Ski Leg. LE
13

505073041 LH Modified Ski Leg. LE

LH Modified Ski Leg. LE
13

505073173 LH Ski Leg. SE

LH Ski Leg. SE
13

505073174 RH Ski Leg. SE

RH Ski Leg. SE
14

505072690 Leg Cushion

Leg Cushion
15

505072495 RH Lower Arm. GSX SE Magnesium/Magnesium Models

RH Lower Arm. GSX SE Magnesium/Magnesium Models
15

505072496 LH Lower Arm. GSX SE Magnesium/Magnesium Models

LH Lower Arm. GSX SE Magnesium/Magnesium Models
15

505072522 RH Lower Arm. LE

RH Lower Arm. LE
15

505072523 LH Lower Arm. LE

LH Lower Arm. LE
15

505072522 RH Lower Arm. GSX SE White/Black Models

RH Lower Arm. GSX SE White/Black Models
15

505072523 LH Lower Arm. GSX SE Black/Black Models

LH Lower Arm. GSX SE Black/Black Models
16

505072208 Bushing

Bushing
17

505072393 Bushing

Bushing
18

505072634 Wear Plate

Wear Plate
19

250000291 Screw Hex. M10 X 70. XR

Screw Hex. M10 X 70. XR
20

250000218 Hex. Screw M10 X 75. XR

Hex. Screw M10 X 75. XR
21

505072374 Upper Arm. SE

Upper Arm. SE
21

505072389 Upper Arm. LE

Upper Arm. LE
22

505072250 Bushing

Bushing
23

505072143 Bushing

Bushing
24

250000290 Screw Hex. M10 X 60

Screw Hex. M10 X 60
25

250000289 Screw Hex. M10 X 50

Screw Hex. M10 X 50
26

503189564 Washer

Washer
27

505072392 Washer

Washer
28

250100088 Hex. Elastic Hex. Nut M10

Hex. Elastic Hex. Nut M10
29

505072448 O-Ring

O-Ring
30

505072602 Stabilisator. Except SUM, Except GTX 1000

Stabilisator. Except SUM, Except GTX 1000
31

505072064 Bushing. Except SUM, Except GTX 1000

Bushing. Except SUM, Except GTX 1000
32

505072394 Stabilisator Lever. Except SUM, Except GTX 1000

Stabilisator Lever. Except SUM, Except GTX 1000
33

207663056 Hex Flanged Screw M6 X 30

Hex Flanged Screw M6 X 30
34

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
35

505072204 Double Ball Joint Link

Double Ball Joint Link
36

207663056 Hex Flanged Screw M6 X 30

Hex Flanged Screw M6 X 30
37

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
38

505073139 Front Shock

Front Shock
39

505072993 Painted Spring

Painted Spring
40

706200881 Spring Stopper

Spring Stopper
41

706200785 Cap

Cap
55

505070150 Adjustment Cam

Adjustment Cam
56

503187500 Spring Guide

Spring Guide
57

516005533 Shock Decal, HPG

Shock Decal, HPG
61

207005554 Hex Screw M10 X 55

Hex Screw M10 X 55
62

207006544 Hex. Screw M10 X 65

Hex. Screw M10 X 65
63

503189564 Washer

Washer
64

233201464 Hex. Elast. Flanged Nut M10

Hex. Elast. Flanged Nut M10
65

505072682 Lower Ball Joint

Lower Ball Joint
66

503189276 Washer. XR

Washer. XR
67

250100089 Hex. Elastic Hex. Nut M12. XR

Hex. Elastic Hex. Nut M12. XR
68

503192491 Washer

Washer
69

232521464 Hex Elastic Nut M12

Hex Elastic Nut M12
71

505072257 Upper Ball Joint. XR

Upper Ball Joint. XR
72

293370035 Circlip

Circlip
