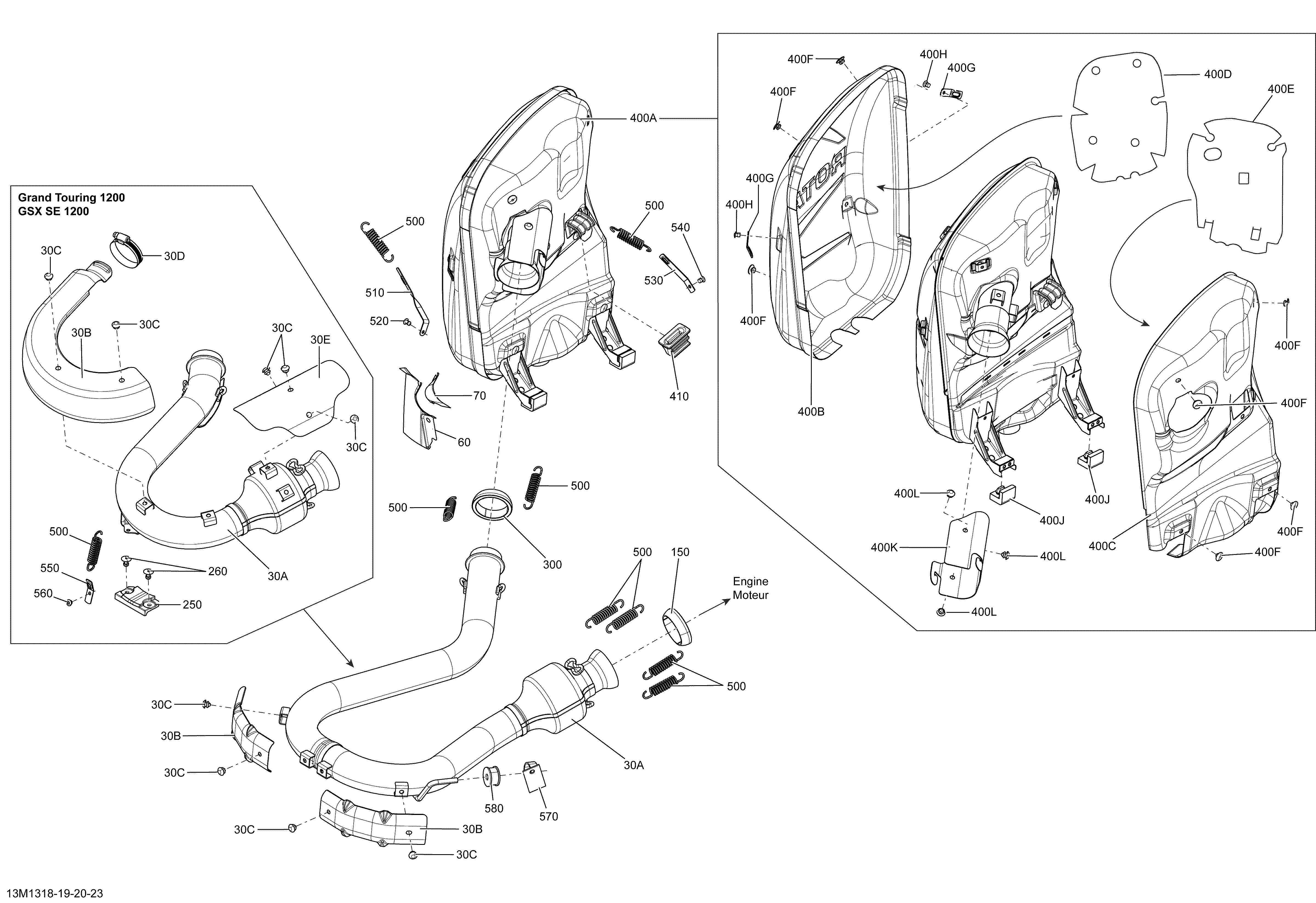

01- Exhaust System для BRP Ski-Doo GSX LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
30a514054947 Short Exhaust Pipe Ass'y. GSX SE, Includes 30A to 30EShort Exhaust Pipe Ass'y. GSX SE, Includes 30A to 30E
-
30a514054950 Long Exhaust Pipe Ass'y. GSX LE, Includes 30A to 30CLong Exhaust Pipe Ass'y. GSX LE, Includes 30A to 30C
-
30b514054397 Exhaust Deflector. GSX SEExhaust Deflector. GSX SE
-
30b514054564 Deflector. GSX LEDeflector. GSX LE
-
30c293150173 Rivet 6,4 mm. GSX SERivet 6,4 mm. GSX SE
-
30c293150173 Rivet 6,4 mm. GSX LERivet 6,4 mm. GSX LE
-
30d293650036 Tridon Clamp. GSX SETridon Clamp. GSX SE
-
30e514054724 Deflector. GSX SEDeflector. GSX SE
-
60514054398 Reflective SheetReflective Sheet
-
70514054399 Reflective SheetReflective Sheet
-
150514054174 Exhaust GasketExhaust Gasket
-
250514054275 Bumper. GSX SEBumper. GSX SE
-
260293150103 Pop Rivet 3/16''. GSX SEPop Rivet 3/16''. GSX SE
-
300514054174 Exhaust GasketExhaust Gasket
-
400a514054782 Muffler Ass'y. GSX SE, Includes 400A to 400LMuffler Ass'y. GSX SE, Includes 400A to 400L
-
400a514054929 Exhaust Muffler Ass'y. GSX LE, Includes 400A to 400LExhaust Muffler Ass'y. GSX LE, Includes 400A to 400L
-
400b514054474 RH Heat ShieldRH Heat Shield
-
400c514054369 LH Heat ShieldLH Heat Shield
-
400d514054256 Insulating WoolInsulating Wool
-
400e514054257 Insulating WoolInsulating Wool
-
400f390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
400g514054522 Spring BracketSpring Bracket
-
400h390909200 Avex RivetAvex Rivet
-
400j514054496 Lower StopperLower Stopper
-
400k514054396 DeflectorDeflector
-
400l293150173 Rivet 6,4 mmRivet 6,4 mm
-
410514054346 StopperStopper
-
500514054226 Spring. GSX SESpring. GSX SE
-
500514054226 Spring. GSX LESpring. GSX LE
-
510514054620 Spring BracketSpring Bracket
-
520293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
530514054484 Spring BracketSpring Bracket
-
540390909200 Avex RivetAvex Rivet
-
550514054391 Spring Bracket. GSX SESpring Bracket. GSX SE
-
560390402200 Pop Rivet 3/16''. GSX SEPop Rivet 3/16''. GSX SE
-
570514054600 Support. GSX LESupport. GSX LE
-
580707600702 Anti-Vibration Rubber. GSX LEAnti-Vibration Rubber. GSX LE
