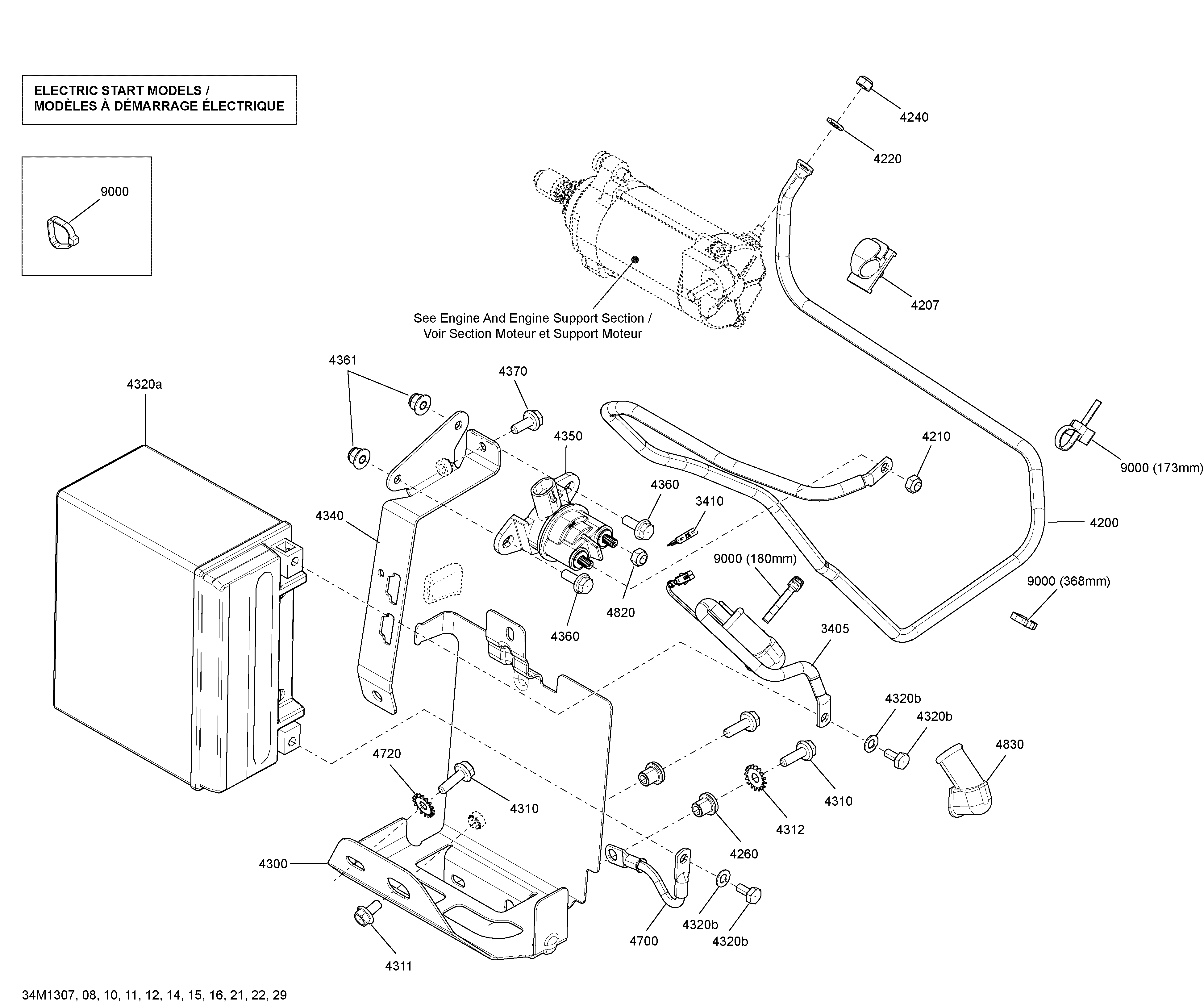

10- Battery And Starter для BRP Ski-Doo GRAND TOURING LE 600HOE XR - 2013
-
№АртикулНазвание
-
3405515177534 Battery Fuse Wire. 600HOE Electric StarterBattery Fuse Wire. 600HOE Electric Starter
-
3410278001443 Fuse, 25 Amperes. Electric StarterFuse, 25 Amperes. Electric Starter
-
4200515177208 Battery/Starter Wire. Electric StarterBattery/Starter Wire. Electric Starter
-
4207515177066 Clip. Electric StarterClip. Electric Starter
-
4210232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
4220234061410 Flat Washer 6 mm. Electric StarterFlat Washer 6 mm. Electric Starter
-
4240232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
4260415107300 InsertInsert
-
4260415107300 Insert. Electric StarterInsert. Electric Starter
-
4300515177264 Battery Support. Electric StarterBattery Support. Electric Starter
-
4310207662044 Hex. Flanged Screw M6 X 20. Electric StarterHex. Flanged Screw M6 X 20. Electric Starter
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4311207661244 Hex. Flanged Screw M6 X 12. Electric StarterHex. Flanged Screw M6 X 12. Electric Starter
-
4312250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4320a410301203 Battery Ass'y, 18 Amperes. 600HOE Electric StarterBattery Ass'y, 18 Amperes. 600HOE Electric Starter
-
4340515177266 Battery Strip. Electric StarterBattery Strip. Electric Starter
-
4350278002347 Starter Relay. Electric StarterStarter Relay. Electric Starter
-
4360207662044 Hex. Flanged Screw M6 X 20. Electric StarterHex. Flanged Screw M6 X 20. Electric Starter
-
4361233261416 Elastic Flanged Nut M6. Electric StarterElastic Flanged Nut M6. Electric Starter
-
4370207661644 Hex. Flanged Screw M6 X 16. Electric StarterHex. Flanged Screw M6 X 16. Electric Starter
-
4700515176358 Ground Wire. Electric StarterGround Wire. Electric Starter
-
4720250200041 Lock Washer Serrated M6. Electric StarterLock Washer Serrated M6. Electric Starter
-
4820232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
4830710000495 Protector Cap. Electric StarterProtector Cap. Electric Starter
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mm. Electric StarterTie-Rap 350 mm. Electric Starter
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750001 Tie-Rap 94 mm. Electric StarterTie-Rap 94 mm. Electric Starter
-
9000293750009 Tie-Rap 173 mm. Electric StarterTie-Rap 173 mm. Electric Starter
