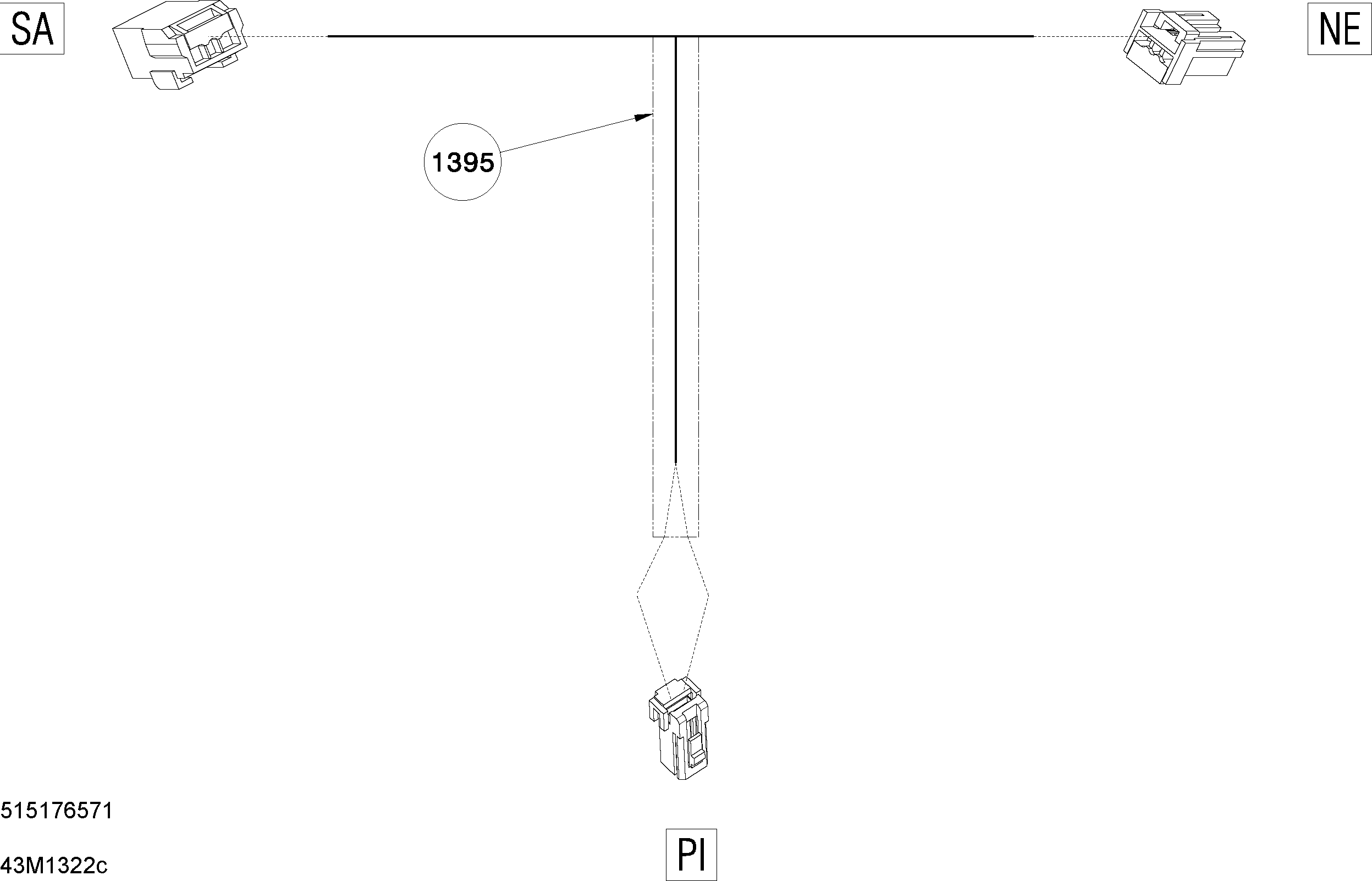

10- Electrical Harness Rear для BRP Ski-Doo GRAND TOURING LE 600HOE XR - 2013
-
№АртикулНазвание
-
850515176571 Junction Harness. GTXJunction Harness. GTX
-
1395515175442 Tubing 6 mmTubing 6 mm
-
NE515175231 Female TerminalFemale Terminal
-
NE515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
PI515175231 Female TerminalFemale Terminal
-
PI515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SA515175232 Male TerminalMale Terminal
-
SA515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
