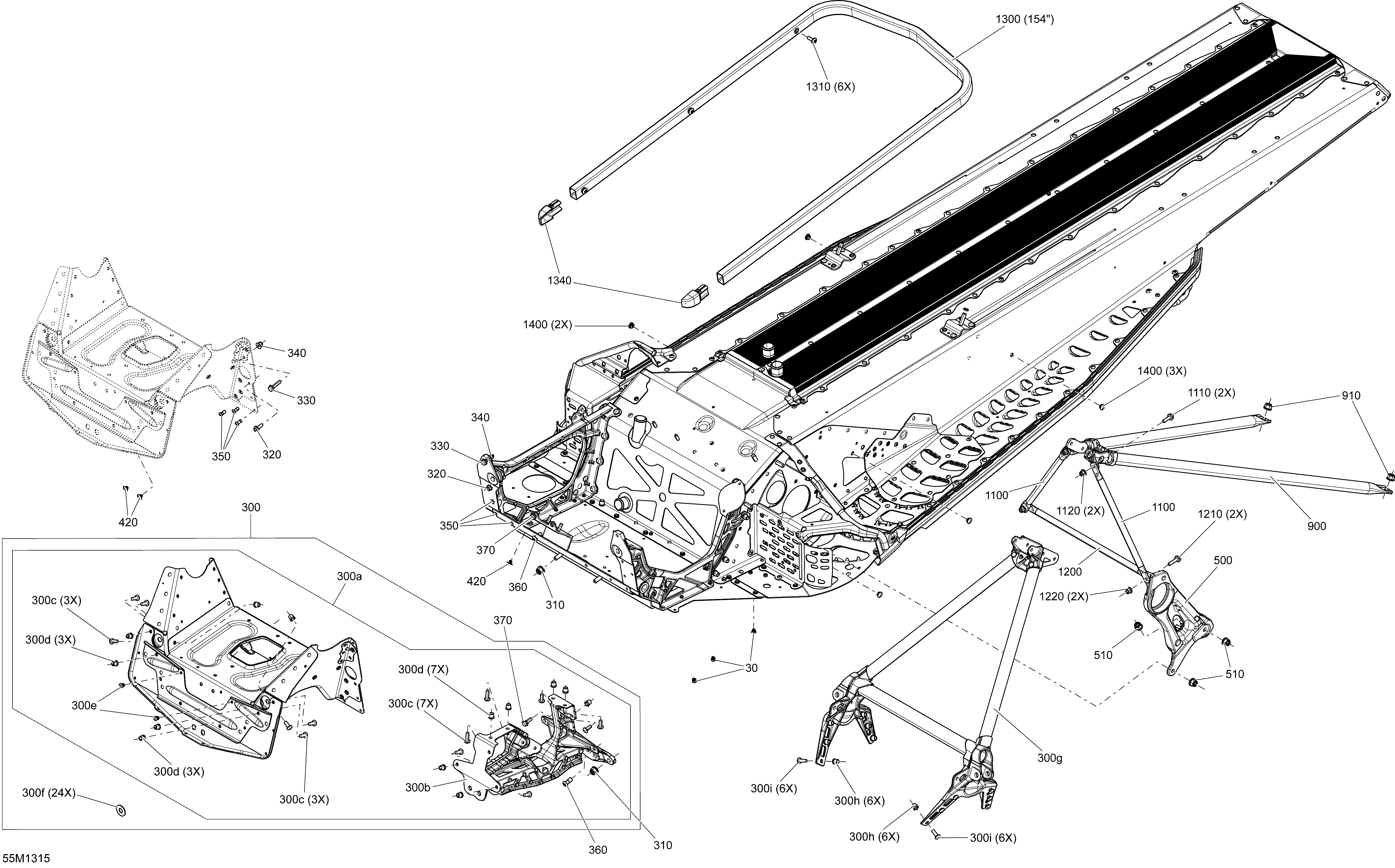

09- Frame And Components для BRP Ski-Doo FREERIDE 154R, 800RE XP - 2013

‹-+›
  • №
    Артикул
    Название
  • 30
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 300
    518327497 S-Module Kit. Includes 300 to 300f
    S-Module Kit. Includes 300 to 300f
  • 300a
    518327503 S-Module Ass'y. Includes 300a to 300e
    S-Module Ass'y. Includes 300a to 300e
  • 300b
    518327475 Front Suspension Support
    Front Suspension Support
  • 300c
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 300d
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 300e
    293150144 Stavex Rivet
    Stavex Rivet
  • 300f
    505072392 Washer
    Washer
  • 300g
    518327565 Front Member
    Front Member
  • 300h
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 300i
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 310
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 320
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 330
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 340
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 350
    293150191 Monobolt Rivet, 4.8 mm
    Monobolt Rivet, 4.8 mm
  • 360
    293150182 Monobolt Rivet 6.4
    Monobolt Rivet 6.4
  • 370
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 420
    293730053 Dart
    Dart
  • 500
    518327133 Driven Pulley Support
    Driven Pulley Support
  • 510
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 900
    518326559 Rear Member
    Rear Member
  • 910
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 1100
    518325114 Upper Column Support
    Upper Column Support
  • 1110
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 1120
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 1200
    518325115 Center Column Support
    Center Column Support
  • 1210
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1220
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1300
    518326049 Rear Bumper, Black, 154''
    Rear Bumper, Black, 154''
  • 1310
    250000402 Torx-Truss Screw M6 X 18
    Torx-Truss Screw M6 X 18
  • 1340
    520000840 Cap
    Cap
  • 1400
    293730047 Dart 8 mm, Black
    Dart 8 mm, Black
