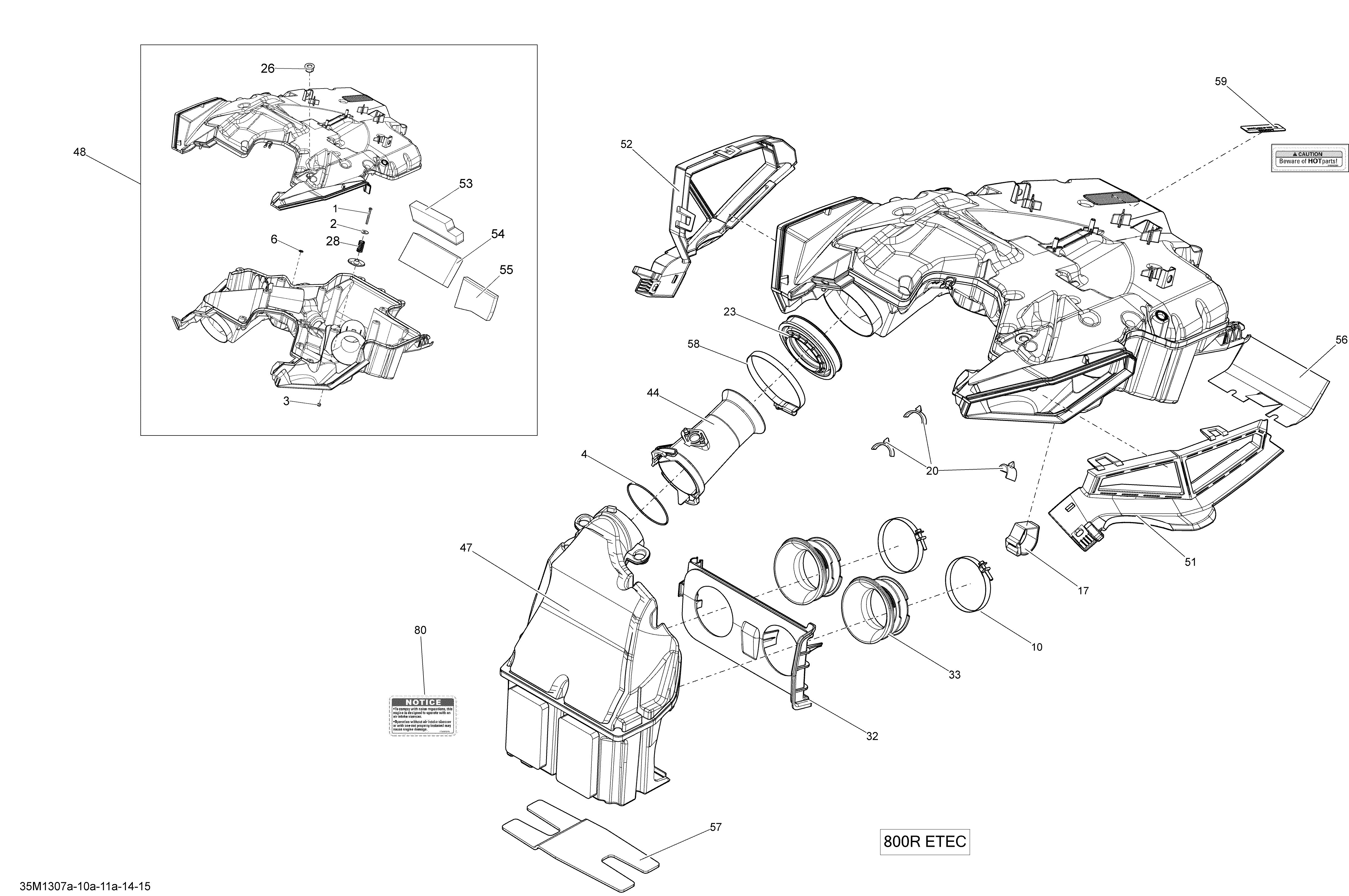

02- Air Intake System для BRP Ski-Doo FREERIDE 154R, 800RE XP - 2013

  • №
    Артикул
    Название
  • 1
    205444086 Socket Head Screw M4 X 40. 800RE
    Socket Head Screw M4 X 40. 800RE
  • 2
    224060201 Flat Washer. 800RE
    Flat Washer. 800RE
  • 3
    232541414 Elastic Stop Nut M4. 800RE
    Elastic Stop Nut M4. 800RE
  • 4
    293300115 O-Ring
    O-Ring
  • 6
    389804300 Push Nut. 800RE
    Push Nut. 800RE
  • 10
    508000346 Gemi Clamp
    Gemi Clamp
  • 17
    508000532 Velcro Strip. 800RE
    Velcro Strip. 800RE
  • 20
    508000537 Stopper. 800RE
    Stopper. 800RE
  • 23
    508000567 Boot
    Boot
  • 26
    508000574 Grommet. 800RE
    Grommet. 800RE
  • 28
    508000576 Spring. 800RE
    Spring. 800RE
  • 32
    508000613 Plate Adapter. 600HOE, 800RE
    Plate Adapter. 600HOE, 800RE
  • 33
    508000614 Air Intake Adapter. 600HOE, 800RE
    Air Intake Adapter. 600HOE, 800RE
  • 44
    508000662 Flute. Except 600
    Flute. Except 600
  • 47
    508000660 Primary Chamber Ass'y. 800RE
    Primary Chamber Ass'y. 800RE
  • 48
    508000683 Secondary Chamber Ass'y. 800RE
    Secondary Chamber Ass'y. 800RE
  • 51
    508000688 RH Intake Air Filter. 800RE
    RH Intake Air Filter. 800RE
  • 52
    508000689 LH Intake Air Filter. 800RE
    LH Intake Air Filter. 800RE
  • 53
    508000696 LH Upper Foam. 800RE
    LH Upper Foam. 800RE
  • 54
    508000697 LH Lower Foam. 800RE
    LH Lower Foam. 800RE
  • 55
    508000706 RH Lower Foam. 800RE
    RH Lower Foam. 800RE
  • 56
    508000720 Heat Shield. 800RE
    Heat Shield. 800RE
  • 57
    508000739 Insulated Foam. ETEC
    Insulated Foam. ETEC
  • 58
    514052924 Norma Clamp
    Norma Clamp
  • 59
    516005280 Caution Decal, Hot Parts
    Caution Decal, Hot Parts
  • 80
    516005876 Notice Decal, Air Intake Silencer. 800RE
    Notice Decal, Air Intake Silencer. 800RE
