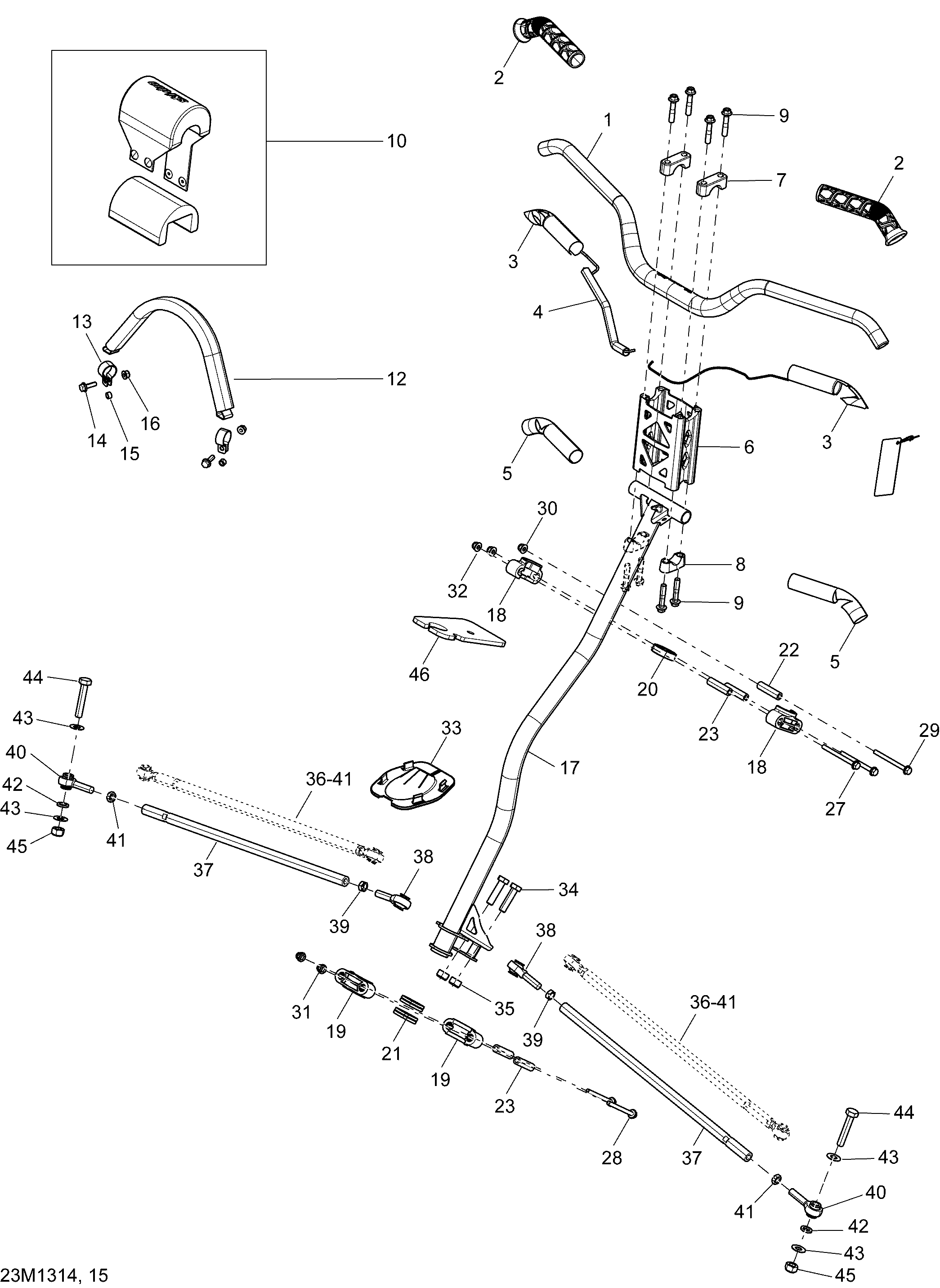

07- Steering для BRP Ski-Doo FREERIDE 137, 146, 154, 800RE XP - 2013

  • №
    Артикул
    Название
  • 1
    506152538 Handle Bar
    Handle Bar
  • 2
    506152486 Grip
    Grip
  • 3
    506152603 Heating Element 28 WATT
    Heating Element 28 WATT
  • 4
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 5
    506152611 Insulant
    Insulant
  • 6
    506152530 Handle Bar Extension
    Handle Bar Extension
  • 7
    506152492 Steering Support
    Steering Support
  • 8
    506152395 Steering Support
    Steering Support
  • 9
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 10
    506152505 Steering Pad
    Steering Pad
  • 12
    506152115 Strap Ass'y
    Strap Ass'y
  • 13
    506152536 Painted Support Plate
    Painted Support Plate
  • 14
    207662084 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 15
    506152156 Bushing
    Bushing
  • 16
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 17
    506152584 Main Tube (Painted)
    Main Tube (Painted)
  • 18
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 19
    506152588 Lower Half-Housing
    Lower Half-Housing
  • 20
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 21
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 22
    506152297 Housing Bushing
    Housing Bushing
  • 23
    506152297 Housing Bushing
    Housing Bushing
  • 27
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 28
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 29
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 30
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 31
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 32
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 33
    506152163 Plate
    Plate
  • 34
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 35
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 37
    506152498 Tie-Rod. 137
    Tie-Rod. 137
  • 37
    506152498 Tie-Rod. 146
    Tie-Rod. 146
  • 37
    506152498 Tie-Rod. 154
    Tie-Rod. 154
  • 38
    506152081 LH Thread Ball Joint. 137
    LH Thread Ball Joint. 137
  • 38
    506152081 LH Thread Ball Joint. 146
    LH Thread Ball Joint. 146
  • 38
    506152081 LH Thread Ball Joint. 154
    LH Thread Ball Joint. 154
  • 39
    250100016 LH Hex. Jam Nut M10. 137
    LH Hex. Jam Nut M10. 137
  • 39
    250100016 LH Hex. Jam Nut M10. 146
    LH Hex. Jam Nut M10. 146
  • 39
    250100016 LH Hex. Jam Nut M10. 154
    LH Hex. Jam Nut M10. 154
  • 40
    506152019 RH Thread Ball Joint. 137
    RH Thread Ball Joint. 137
  • 40
    506152019 RH Thread Ball Joint. 146
    RH Thread Ball Joint. 146
  • 40
    506152019 RH Thread Ball Joint. 154
    RH Thread Ball Joint. 154
  • 41
    732610010 RH Hex. Jam Nut M10. 137
    RH Hex. Jam Nut M10. 137
  • 41
    732610010 RH Hex. Jam Nut M10. 146
    RH Hex. Jam Nut M10. 146
  • 41
    732610010 RH Hex. Jam Nut M10. 154
    RH Hex. Jam Nut M10. 154
  • 42
    503192496 Washer. 146
    Washer. 146
  • 42
    503192496 Washer. 137
    Washer. 137
  • 42
    503192496 Washer. 154
    Washer. 154
  • 43
    506152582 Washer
    Washer
  • 44
    207005554 Hex Screw M10 X 55
    Hex Screw M10 X 55
  • 45
    250100132 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 46
    506152476 Cushion
    Cushion
