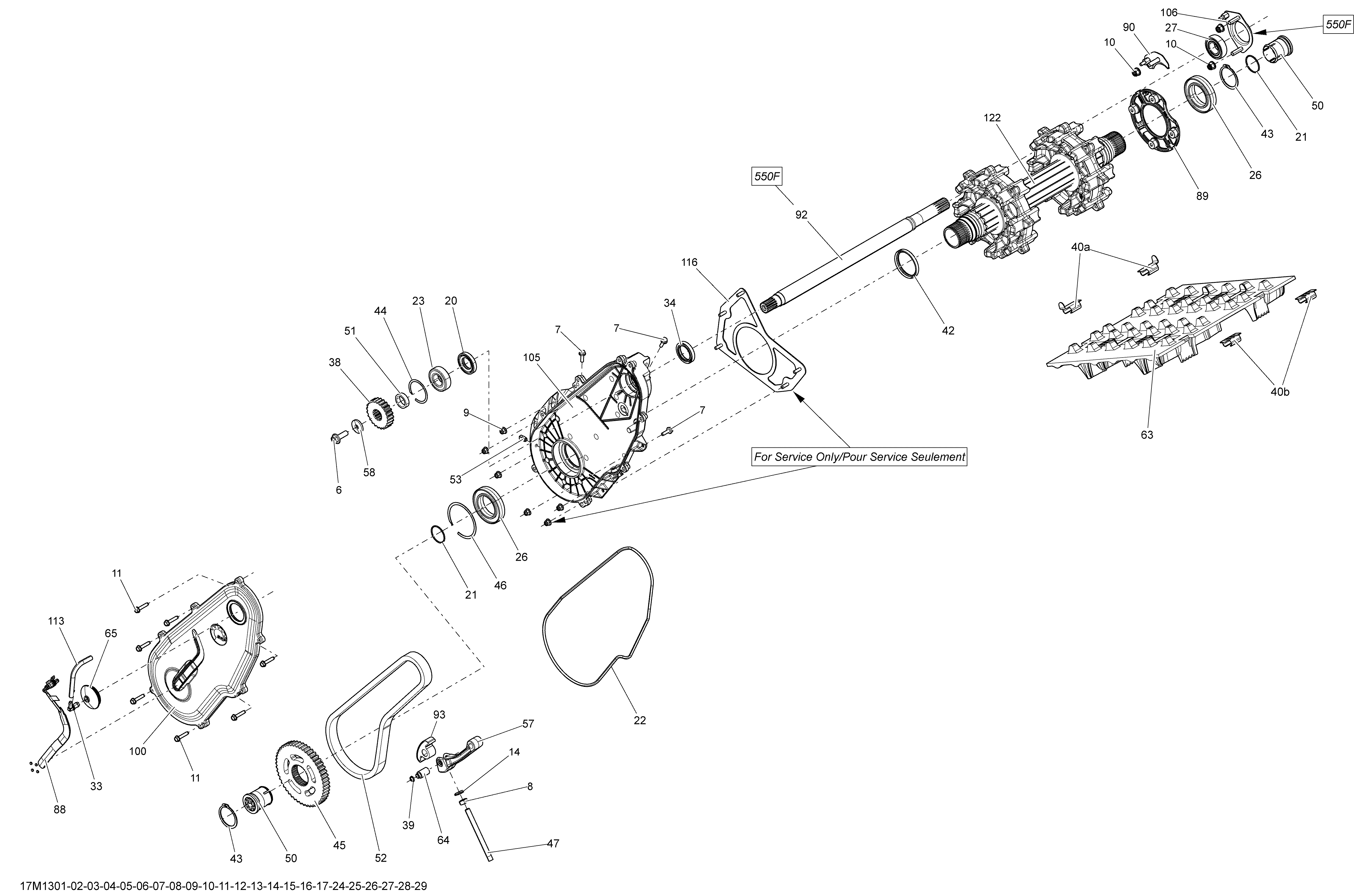

05- Drive System для BRP Ski-Doo FREERIDE 137, 146, 154, 800RE XP - 2013

  • №
    Артикул
    Название
  • 6
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 7
    207662034 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 8
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 9
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 10
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 11
    210263080 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 14
    250200100 Bonded Washer
    Bonded Washer
  • 21
    293300122 O-Ring
    O-Ring
  • 22
    293300130 O-Ring
    O-Ring
  • 23
    293350055 Ball Bearing
    Ball Bearing
  • 26
    293350059 Ball Bearing
    Ball Bearing
  • 27
    293350074 Ball Bearing
    Ball Bearing
  • 33
    414580700 Male Connector
    Male Connector
  • 34
    415049300 Oil Seal
    Oil Seal
  • 38
    504091000 Sprocket, 23 Teeth. 137''
    Sprocket, 23 Teeth. 137''
  • 38
    504096200 Sprocket, 21 Teeth. 137'', 146''
    Sprocket, 21 Teeth. 137'', 146''
  • 38
    504152030 Sprocket, 19 Teeth. 154''
    Sprocket, 19 Teeth. 154''
  • 39
    504152282 Circlip
    Circlip
  • 42
    504152571 Seal
    Seal
  • 43
    504152572 Circlip
    Circlip
  • 44
    504152576 Circlip
    Circlip
  • 45
    504152581 Sprocket, 49 Teeth. 146'', 154''
    Sprocket, 49 Teeth. 146'', 154''
  • 45
    504152593 Sprocket, 45 Teeth. 137''
    Sprocket, 45 Teeth. 137''
  • 46
    504152582 Circlip
    Circlip
  • 47
    504152602 Adjustment Screw
    Adjustment Screw
  • 50
    504152619 Magnetic Cap
    Magnetic Cap
  • 51
    504152628 Shim
    Shim
  • 52
    504152579 Drive Chain, 102 Links. 137''
    Drive Chain, 102 Links. 137''
  • 52
    504152629 Drive Chain, 104 Links. 137'', 154''
    Drive Chain, 104 Links. 137'', 154''
  • 52
    504152630 Drive Chain, 106 Links. 146'', 154''
    Drive Chain, 106 Links. 146'', 154''
  • 53
    504152854 Magnetic Plug
    Magnetic Plug
  • 57
    504152685 Chain Tensioner
    Chain Tensioner
  • 58
    504152784 Spring Washer M10
    Spring Washer M10
  • 63
    504152803 Track Ass'y 16X137X1.7. TR16X137X1.7P
    Track Ass'y 16X137X1.7. TR16X137X1.7P
  • 63
    504153014 Tarck Ass'y 16'' X 146'' X 2.31''. TR16X146X2.2P
    Tarck Ass'y 16'' X 146'' X 2.31''. TR16X146X2.2P
  • 63
    504153008 Track Ass'y 16'' X 146'' X 2.50''. TR16X146X2.5PII
    Track Ass'y 16'' X 146'' X 2.50''. TR16X146X2.5PII
  • 63
    504153009 Track Ass'y 16'' X 154'' X 2.50''. TR16X154X2.5PII
    Track Ass'y 16'' X 154'' X 2.50''. TR16X154X2.5PII
  • 64
    504152841 Tensionner Axle
    Tensionner Axle
  • 65
    504152860 Cap
    Cap
  • 88
    504152896 Sensor
    Sensor
  • 89
    504152949 Housing Bearing
    Housing Bearing
  • 90
    504152974 Bearing Housing
    Bearing Housing
  • 93
    504152739 Slider Chain
    Slider Chain
  • 100
    504153146 Chaincase Cover Ass'y
    Chaincase Cover Ass'y
  • 105
    504153180 Chaincase
    Chaincase
  • 113
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 116
    518325816 Plate
    Plate
  • 122
    504153085 Drive Axle Ass'y
    Drive Axle Ass'y
  • 40a
    415129528 Track Guide. TR16X137X1.7P
    Track Guide. TR16X137X1.7P
  • 40a
    415129528 Track Guide. TR16X146X2.2P
    Track Guide. TR16X146X2.2P
  • 40a
    415129528 Track Guide. TR16X146X2.5PII
    Track Guide. TR16X146X2.5PII
  • 40a
    415129528 Track Guide. TR16X154X2.5PII
    Track Guide. TR16X154X2.5PII
  • 40a
    415129528 Track Guide. TR16X146X2.5PIISH
    Track Guide. TR16X146X2.5PIISH
  • 40a
    415129528 Track Guide. TR16X154X2.5PIISH
    Track Guide. TR16X154X2.5PIISH
  • 40a
    415129528 Track Guide. TR16X163X2.5PIISH
    Track Guide. TR16X163X2.5PIISH
  • 40b
    415129529 Cleat. TR16X137X1.7P
    Cleat. TR16X137X1.7P
  • 40b
    415129529 Cleat. TR16X146X2.2P
    Cleat. TR16X146X2.2P
  • 40b
    415129529 Cleat. TR16X146X2.5PII
    Cleat. TR16X146X2.5PII
  • 40b
    415129529 Cleat. TR16X154X2.5PII
    Cleat. TR16X154X2.5PII
  • 40b
    415129529 Cleat. TR16X146X2.5PIISH
    Cleat. TR16X146X2.5PIISH
  • 40b
    415129529 Cleat. TR16X154X2.5PIISH
    Cleat. TR16X154X2.5PIISH
  • 40b
    415129529 Cleat. TR16X163X2.5PIISH
    Cleat. TR16X163X2.5PIISH
