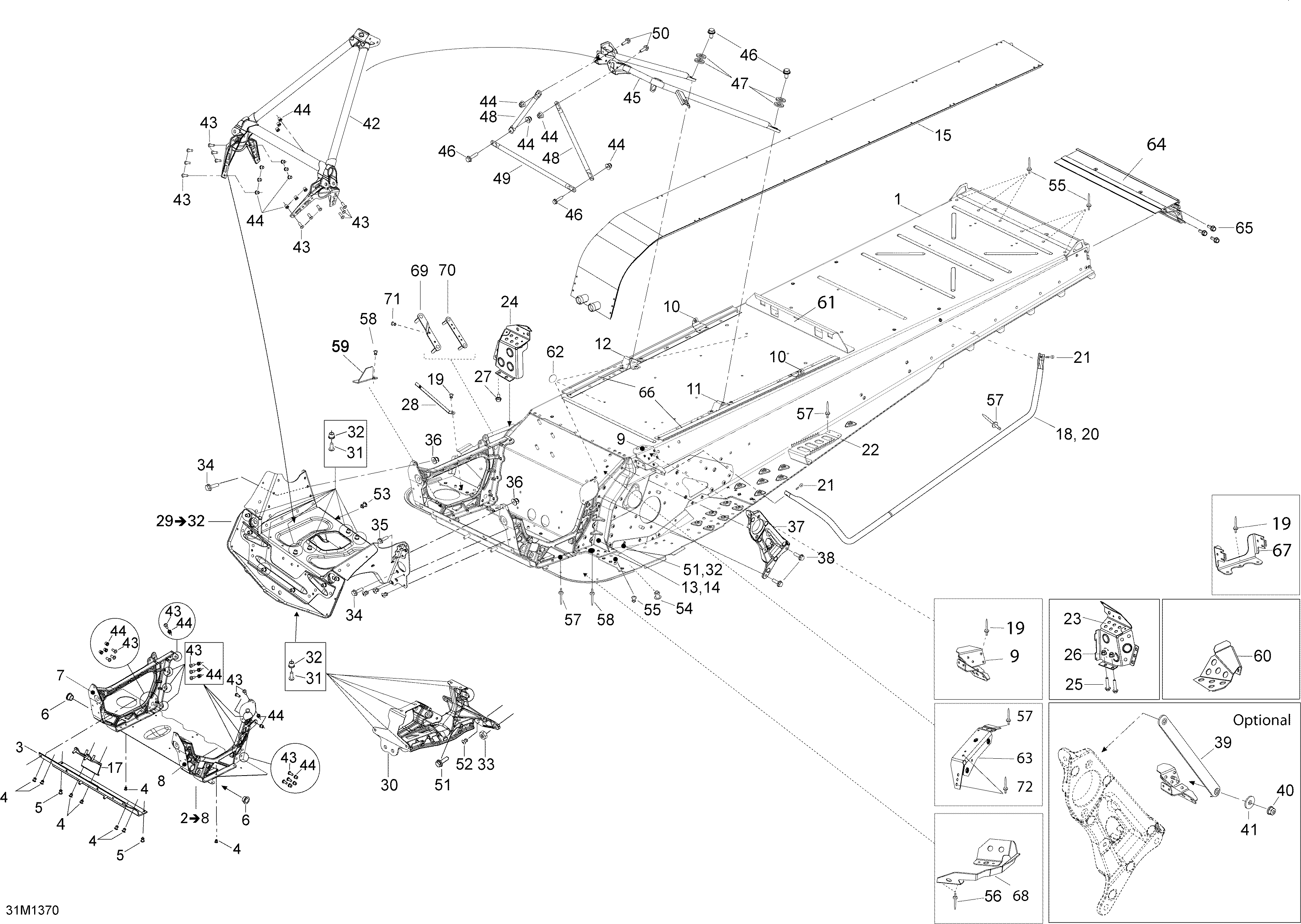

09- Frame для BRP Ski-Doo EXPEDITION LE 600HOE, REV XU - 2013

  • №
    Артикул
    Название
  • 1
    518326982 Frame XU E-TEC SC-5. Includes 1 - 12
    Frame XU E-TEC SC-5. Includes 1 - 12
  • 2
    518326660 E Module. Includes 2 - 6
    E Module. Includes 2 - 6
  • 3
    518326198 Front Member
    Front Member
  • 4
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 5
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 6
    505072690 Cushion
    Cushion
  • 7
    518326795 RH Member
    RH Member
  • 8
    518326796 LH Member
    LH Member
  • 9
    605355235 Fastening Bracket
    Fastening Bracket
  • 10
    518325987 Seat Box Bracket
    Seat Box Bracket
  • 11
    518326109 Support Tube Bracket LH
    Support Tube Bracket LH
  • 12
    518326110 Support Tube Bracket RH
    Support Tube Bracket RH
  • 13
    518325524 Frame Corner LH
    Frame Corner LH
  • 14
    518325526 Frame Corner RH
    Frame Corner RH
  • 15
    509000626 Radiator
    Radiator
  • 17
    518325943 MAG Engine Support
    MAG Engine Support
  • 18
    518326963 Footboard Support Tube, LH
    Footboard Support Tube, LH
  • 19
    390909200 Avex Rivet
    Avex Rivet
  • 20
    518326964 Footboard Support Tube, RH
    Footboard Support Tube, RH
  • 21
    207662086 Hex. Flanged Screw DIN.6921
    Hex. Flanged Screw DIN.6921
  • 22
    520000492 Footrest
    Footrest
  • 23
    518326464 Toe Hook LH
    Toe Hook LH
  • 24
    518326465 Toe Hook RH
    Toe Hook RH
  • 25
    207662086 Hex. Flanged Screw DIN.6921
    Hex. Flanged Screw DIN.6921
  • 26
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 27
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 28
    514054616 Spring Bracket
    Spring Bracket
  • 29
    518326210 S Module. Includes 29-32
    S Module. Includes 29-32
  • 30
    518325925 Front Suspension Support
    Front Suspension Support
  • 31
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 32
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 33
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 34
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 35
    250000450 Hex. Flange Screw DIN.6921
    Hex. Flange Screw DIN.6921
  • 36
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 37
    518326185 Pulley Support Machined
    Pulley Support Machined
  • 38
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 39
    518326449 Draft Bar
    Draft Bar
  • 40
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 41
    234081430 Flat Washer M8
    Flat Washer M8
  • 42
    518326970 Front Member. NTC_AA
    Front Member. NTC_AA
  • 43
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 44
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 45
    518326103 Upper Support Tube Welded
    Upper Support Tube Welded
  • 46
    207662086 Hex. Flanged Screw DIN.6921
    Hex. Flanged Screw DIN.6921
  • 48
    518325114 Upper Column Support
    Upper Column Support
  • 49
    518325115 Center Column Support
    Center Column Support
  • 50
    250000450 Hex. Flange Screw DIN.6921
    Hex. Flange Screw DIN.6921
  • 51
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 52
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 53
    293730042 Dart
    Dart
  • 54
    414644300 Dart
    Dart
  • 55
    390909200 Avex Rivet
    Avex Rivet
  • 56
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 57
    390909100 Avex Rivet
    Avex Rivet
  • 58
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 59
    518326642 Muffler support plate
    Muffler support plate
  • 60
    518325626 Brake Hose Cover
    Brake Hose Cover
  • 61
    518325986 Battery support plate
    Battery support plate
  • 62
    518325560 Adhesive Patch
    Adhesive Patch
  • 63
    518326430 Clinch nut plate
    Clinch nut plate
  • 64
    518327194 Rear Profile
    Rear Profile
  • 65
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 66
    518326107 Fastening rail
    Fastening rail
  • 67
    515177073 Fusebox Support
    Fusebox Support
  • 68
    518326566 Pulley Cover Plate
    Pulley Cover Plate
  • 69
    518326123 Gearbox Front Plate
    Gearbox Front Plate
  • 70
    518326124 Gearbox Rear Plate
    Gearbox Rear Plate
  • 71
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 72
    293150183 Rivet hemlock 19.7 mm.
    Rivet hemlock 19.7 mm.
