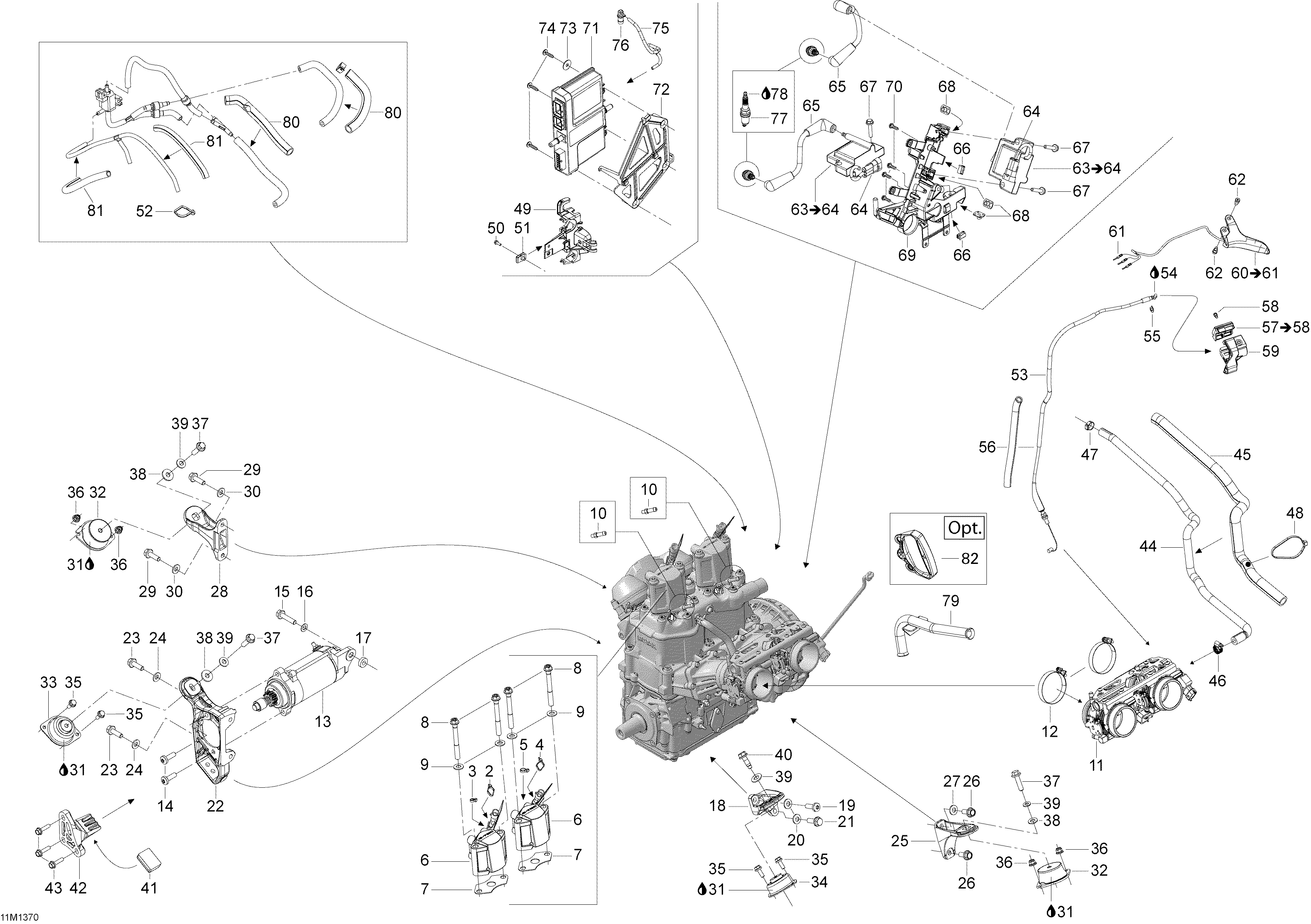

01- Engine And Engine Support для BRP Ski-Doo EXPEDITION LE 600HOE, REV XU - 2013

  • №
    Артикул
    Название
  • 2
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 3
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 4
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 5
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 6
    512060727 Fuel Injector Ass'y
    Fuel Injector Ass'y
  • 7
    420430930 Gasket
    Gasket
  • 8
    420441187 Flanged Torx Screw M10 X 90
    Flanged Torx Screw M10 X 90
  • 9
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 10
    420924724 Hose Nipple
    Hose Nipple
  • 11
    420889197 Throttle Body
    Throttle Body
  • 12
    293650158 Gemi Clamp
    Gemi Clamp
  • 13
    515176858 Starter Ass'y
    Starter Ass'y
  • 14
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 15
    207583544 Hex Flanged Screw M8 X 35, Scotch Grip
    Hex Flanged Screw M8 X 35, Scotch Grip
  • 16
    250200008 Flat Washer With Teflon 8 mm
    Flat Washer With Teflon 8 mm
  • 17
    515176500 Washer
    Washer
  • 18
    512060478 Rear Support, PTO
    Rear Support, PTO
  • 19
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 20
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 21
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 22
    512060712 Front Support PTO
    Front Support PTO
  • 23
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 24
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 25
    512060559 Rear Support, MAG
    Rear Support, MAG
  • 26
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 27
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 28
    512060469 Front Support, MAG
    Front Support, MAG
  • 29
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 30
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 32
    512060729 Rubber Mount
    Rubber Mount
  • 33
    512060387 Rubber Mount
    Rubber Mount
  • 34
    512060448 Rubber Mount
    Rubber Mount
  • 35
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 36
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 37
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 38
    503183200 Washer, Yellow
    Washer, Yellow
  • 39
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 40
    250000570 Hex. Screw M8
    Hex. Screw M8
  • 41
    512060627 Stopper
    Stopper
  • 42
    512060576 Stopper Support
    Stopper Support
  • 43
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 44
    509000793 Formed Hose Output TB
    Formed Hose Output TB
  • 45
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 46
    293650172 Tridon Gear Clamp
    Tridon Gear Clamp
  • 47
    293650047 Crimp Clamp
    Crimp Clamp
  • 48
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 49
    512060298 Solenoid Support
    Solenoid Support
  • 50
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 51
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 52
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 53
    512060633 Throttle Cable
    Throttle Cable
  • 54
    619600021 Loctite 8104 (Dielectric Grease), 75ml
    Loctite 8104 (Dielectric Grease), 75ml
  • 55
    414274500 Circlip
    Circlip
  • 56
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 57
    512060859 Upper Housing. Includes 57 To 58
    Upper Housing. Includes 57 To 58
  • 58
    414440800 Socket Set Screw M8 X 10
    Socket Set Screw M8 X 10
  • 59
    512060860 Lower Housing
    Lower Housing
  • 60
    512060616 Throttle Handle. Includes 60 to 62
    Throttle Handle. Includes 60 to 62
  • 61
    515175232 Male Terminal
    Male Terminal
  • 62
    732601143 Flanged Screw
    Flanged Screw
  • 63
    512060810 Ignition Coil. Includes 63 to 64
    Ignition Coil. Includes 63 to 64
  • 64
    710000568 Housing
    Housing
  • 65
    512060094 Ignition Cable, 177 mm
    Ignition Cable, 177 mm
  • 66
    710000992 Clip
    Clip
  • 67
    250000253 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 68
    293100003 Nut M6
    Nut M6
  • 69
    512060696 Support Coils
    Support Coils
  • 70
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 71
    512060871 Calibrated Module 600 E-TEC
    Calibrated Module 600 E-TEC
  • 72
    512060297 Calibrated Module Support
    Calibrated Module Support
  • 73
    250200040 Flat Washer
    Flat Washer
  • 74
    250000297 Truss Head Torx Screw K50 X 20
    Truss Head Torx Screw K50 X 20
  • 75
    415080100 Line
    Line
  • 76
    414814100 Male Connector
    Male Connector
  • 77
    415129432 Spark Plug
    Spark Plug
  • 78
    619600021 Loctite 8104 (Dielectric Grease), 75ml
    Loctite 8104 (Dielectric Grease), 75ml
  • 79
    512060451 Tubing
    Tubing
  • 80
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 81
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 82
    512060136 Starter Grip
    Starter Grip
