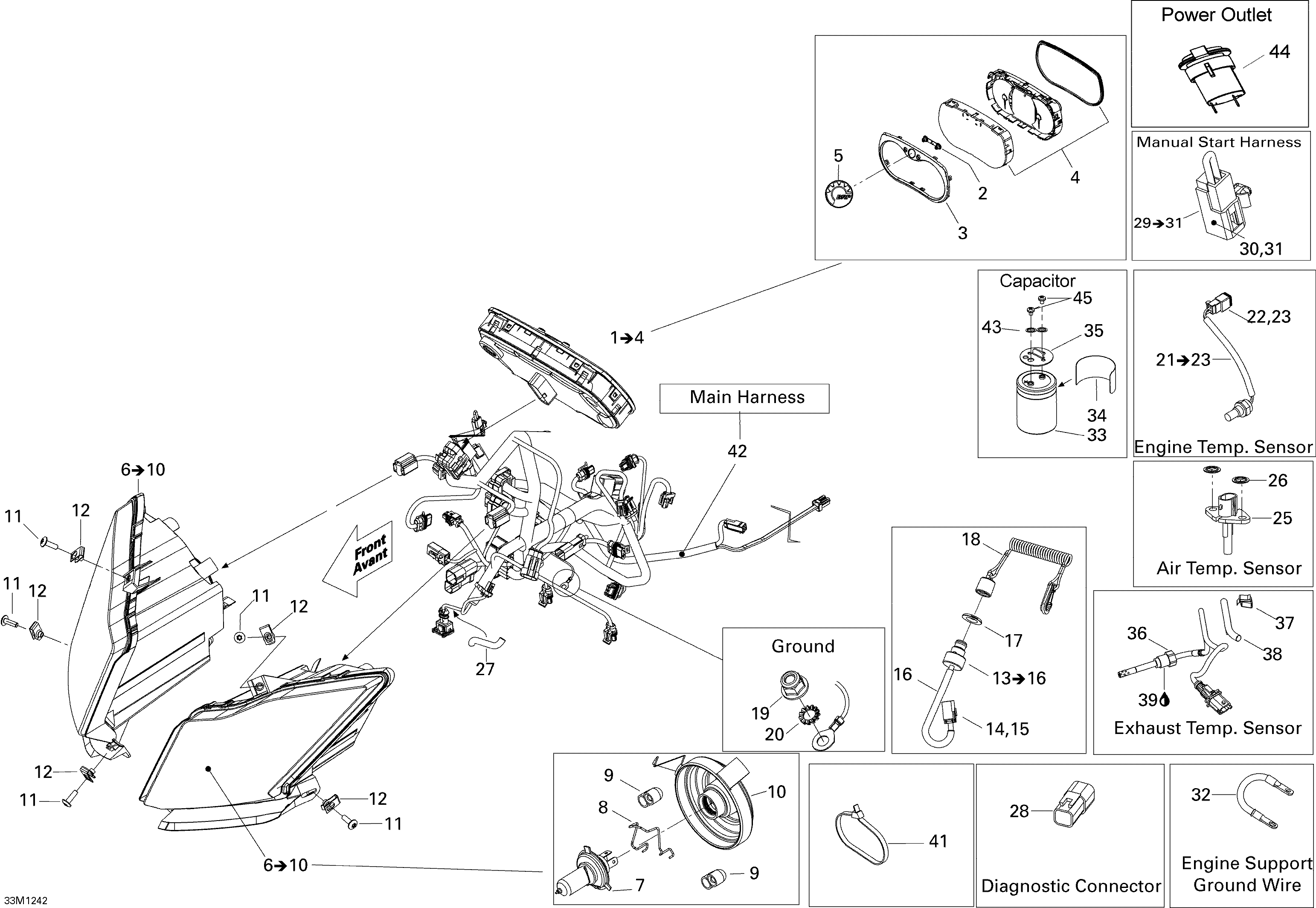

10- Electrical System для BRP Ski-Doo Skandic WT 600HOETEC XU - 2012

  • №
    Артикул
    Название
  • 1
    515177241 Speedometer Ass'y. Includes 1 to 4
    Speedometer Ass'y. Includes 1 to 4
  • 2
    415129355 Speedometer Button
    Speedometer Button
  • 3
    415129370 Gauge Ring
    Gauge Ring
  • 4
    415129349 Lens
    Lens
  • 5
    219902677 Logo BRP, 20 mm
    Logo BRP, 20 mm
  • 6
    517304194 RH Headlamp Ass'y. Includes 6 to 10
    RH Headlamp Ass'y. Includes 6 to 10
  • 6
    517304195 LH Headlamp Ass'y. Includes 6 to 10
    LH Headlamp Ass'y. Includes 6 to 10
  • 7
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 9
    515176498 Cap
    Cap
  • 10
    515176499 Cover
    Cover
  • 11
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 12
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 13
    515176815 Dess Switch. Includes 13 to 16
    Dess Switch. Includes 13 to 16
  • 14
    515175232 Male Terminal
    Male Terminal
  • 15
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 16
    409902000 Tubing 12 mm
    Tubing 12 mm
  • 17
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 18
    515177057 DESS Cap
    DESS Cap
  • 19
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 20
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 21
    515176398 Temperature Sensor. Includes 21 to 23
    Temperature Sensor. Includes 21 to 23
  • 22
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 23
    278000632 Female Terminal
    Female Terminal
  • 25
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 26
    389804300 Push Nut
    Push Nut
  • 27
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 28
    278002148 Diagnostic Connector Cap
    Diagnostic Connector Cap
  • 29
    515176661 Manual Start Harness. Includes 29 to 31
    Manual Start Harness. Includes 29 to 31
  • 30
    515175232 Male Terminal
    Male Terminal
  • 31
    710000667 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 32
    515176358 Ground Wire
    Ground Wire
  • 33
    515176349 Capacitor
    Capacitor
  • 34
    516004570 Capacitor Decal
    Capacitor Decal
  • 35
    515176351 Cap
    Cap
  • 36
    514054641 Temperature Sensor
    Temperature Sensor
  • 37
    414227300 Clip
    Clip
  • 38
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 39
    293800070 Loctite 767, Antiseize Lubricant, 8 oz
    Loctite 767, Antiseize Lubricant, 8 oz
  • 41
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 41
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 41
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 41
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 42
    515177077 Main Harness
    Main Harness
  • 43
    250200026 Lock washer
    Lock washer
  • 44
    710001248 Outlet DC
    Outlet DC
  • 45
    250000462 Socket Head Screw M10 X 32
    Socket Head Screw M10 X 32
