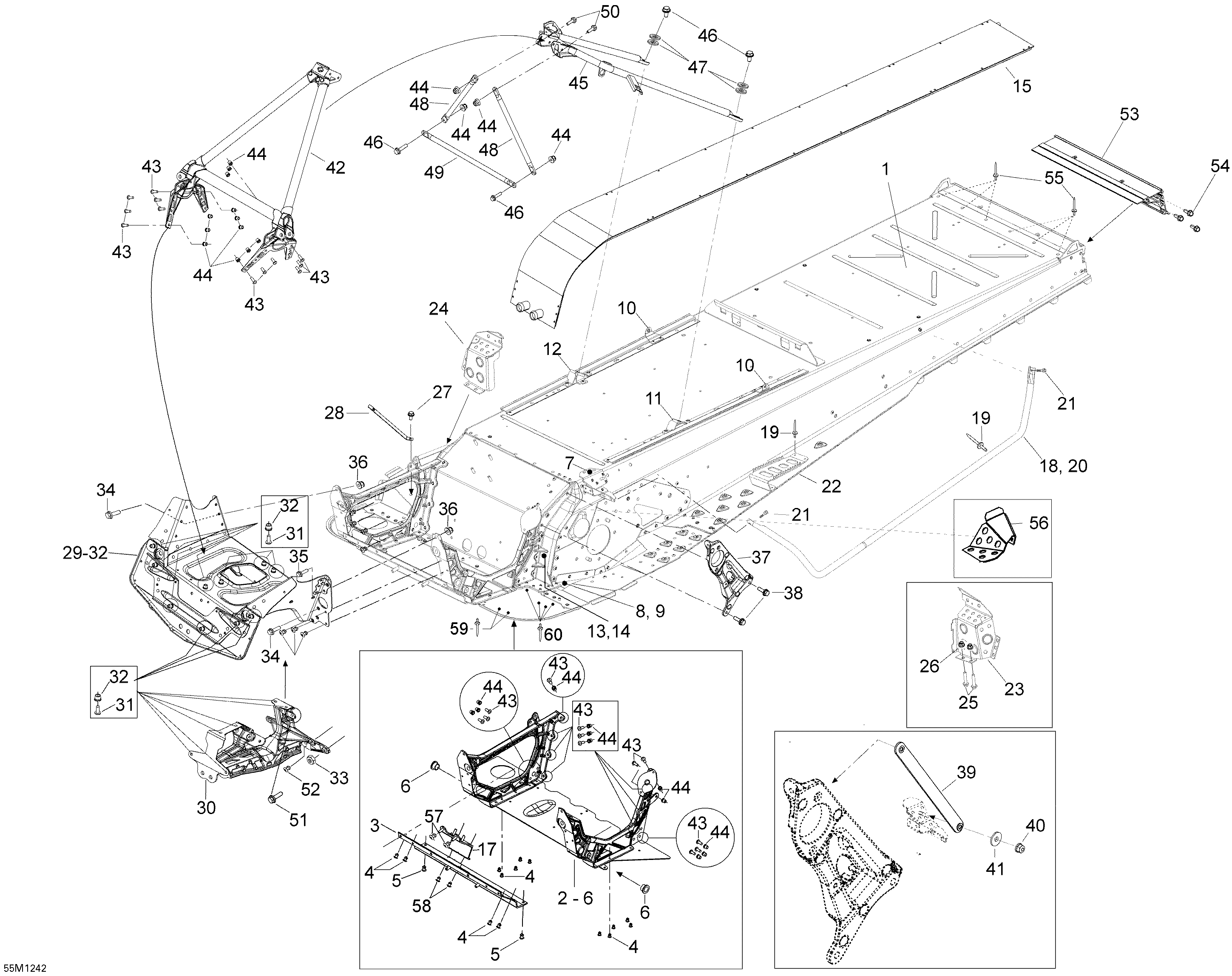

09- Frame and Components для BRP Ski-Doo Skandic WT 600HOETEC XU - 2012

‹-+›

№

Артикул

Название
1

518326982 Frame XU E-TEC SC-5. Includes 1 - 12

Frame XU E-TEC SC-5. Includes 1 - 12
2

518326660 E Module. Includes 2 - 6

E Module. Includes 2 - 6
3

518326198 Front Member

Front Member
4

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
5

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm
6

505072690 Leg Cushion

Leg Cushion
7

605355235 Fastening Bracket

Fastening Bracket
8

518326659 Drive Axle Cover R.H.

Drive Axle Cover R.H.
9

518326658 Drive Axle Cover L.H.

Drive Axle Cover L.H.
10

518325987 Seat Box Bracket

Seat Box Bracket
11

518326109 Support Tube Bracket LH

Support Tube Bracket LH
12

518326110 Support Tube Bracket RH

Support Tube Bracket RH
13

518325524 Frame Corner LH

Frame Corner LH
14

518325526 Frame Corner RH

Frame Corner RH
15

509000626 Radiator

Radiator
17

518325943 MAG Engine Support

MAG Engine Support
18

518326963 Footboard Support Tube, LH

Footboard Support Tube, LH
19

293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT

Rivet Hucklok 4,8 mm HKLP-R6-5GAT
20

518326964 Footboard Support Tube, RH

Footboard Support Tube, RH
21

207662086 Hex. Flanged Screw DIN.6921

Hex. Flanged Screw DIN.6921
22

520000492 Footrest

Footrest
23

518326671 Toe Hook LH

Toe Hook LH
24

518326672 Toe Hook RH

Toe Hook RH
25

207662086 Hex. Flanged Screw DIN.6921

Hex. Flanged Screw DIN.6921
26

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
27

250000128 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
28

514054616 Spring Bracket

Spring Bracket
29

518325924 S-Module. Includes 29-32

S-Module. Includes 29-32
30

518325925 Front Suspension Support

Front Suspension Support
31

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
32

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
33

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
34

210262080 Hex. Forming Screw M6 X 20

Hex. Forming Screw M6 X 20
35

250000450 Hex. Flange Screw DIN.6921

Hex. Flange Screw DIN.6921
36

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
37

518326185 Pulley Support Machined

Pulley Support Machined
38

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
39

518326449 Draft Bar

Draft Bar
40

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
41

234081430 Flat Washer M8

Flat Washer M8
42

518326555 Front Member. NTC_AA

Front Member. NTC_AA
43

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
44

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
45

518326103 Upper Support Tube Welded

Upper Support Tube Welded
46

207662086 Hex. Flanged Screw DIN.6921

Hex. Flanged Screw DIN.6921
48

518325114 Upper Column Support

Upper Column Support
49

518325115 Center Column Support

Center Column Support
50

250000450 Hex. Flange Screw DIN.6921

Hex. Flange Screw DIN.6921
51

207561244 Hex. Flanged Screw M6 X 12, Scotch Grip

Hex. Flanged Screw M6 X 12, Scotch Grip
52

293150147 Hemlock Rivet

Hemlock Rivet
53

605354862 Rear Profile

Rear Profile
54

250000376 Hex Forming Screw DIN.7500D

Hex Forming Screw DIN.7500D
55

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm
56

518325626 Brake Hose Cover

Brake Hose Cover
57

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
58

293150164 Hucklok Rivet 6,4 mm HKLP-R8-6

Hucklok Rivet 6,4 mm HKLP-R8-6
59

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
60

390909200 Avex Rivet

Avex Rivet
