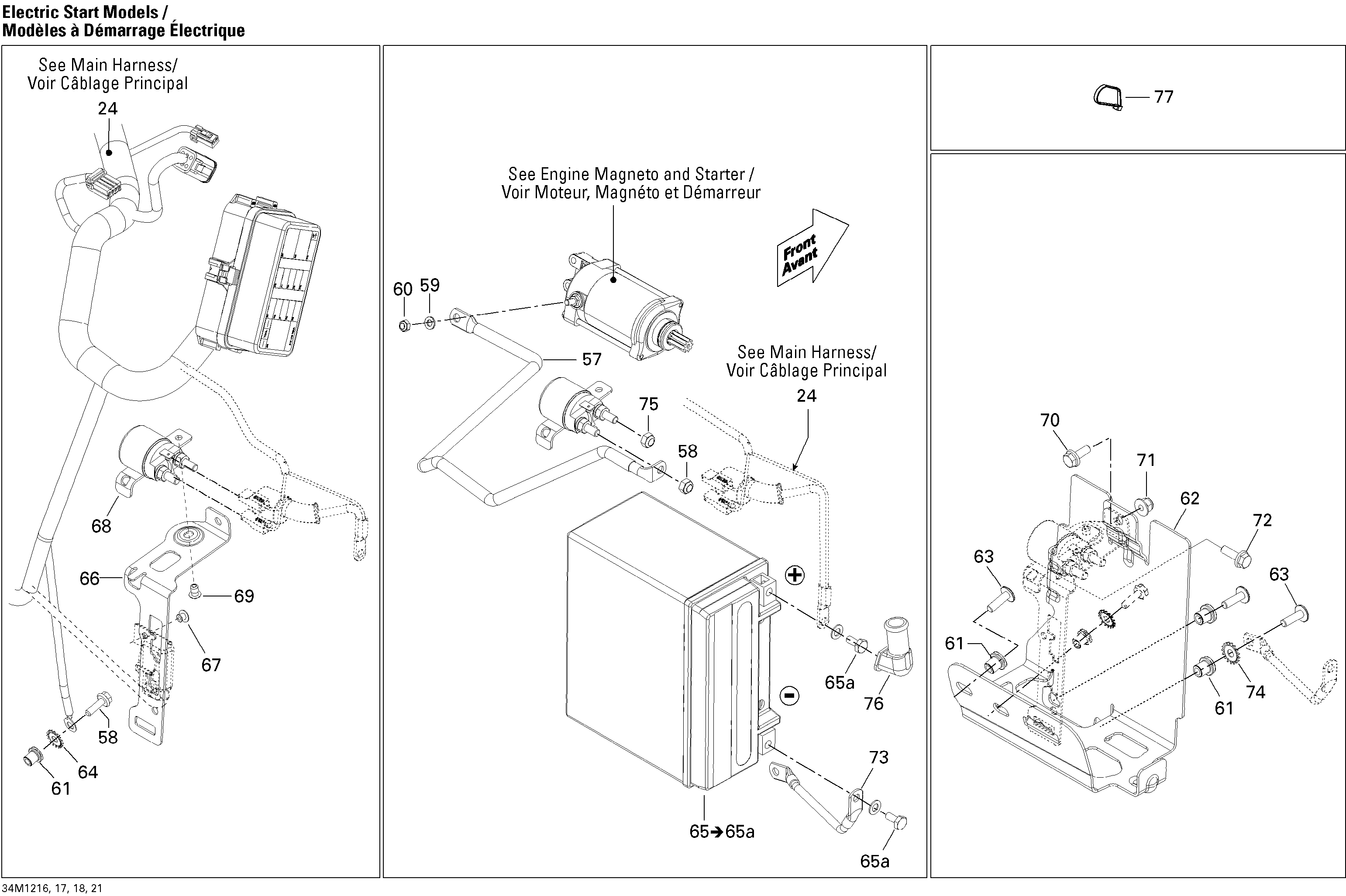

10- Battery And Starter для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
24515177267 Main Harness Ass'yMain Harness Ass'y
-
57515176557 Battery WireBattery Wire
-
58232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
59234061410 Flat Washer 6 mmFlat Washer 6 mm
-
60232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
61415107300 InsertInsert
-
62515176970 Battery SupportBattery Support
-
63250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
64250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
65296000295 Battery 18 AmpBattery 18 Amp
-
65a295500849 Battery Fastener KitBattery Fastener Kit
-
66515177008 Battery StripBattery Strip
-
67390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
68515176501 Starter RelayStarter Relay
-
69390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
70207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
71233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
72210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
73515175749 Ground WireGround Wire
-
74250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
75232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
76710000495 Protector CapProtector Cap
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
77293750027 Tie-Rap 206 mmTie-Rap 206 mm
