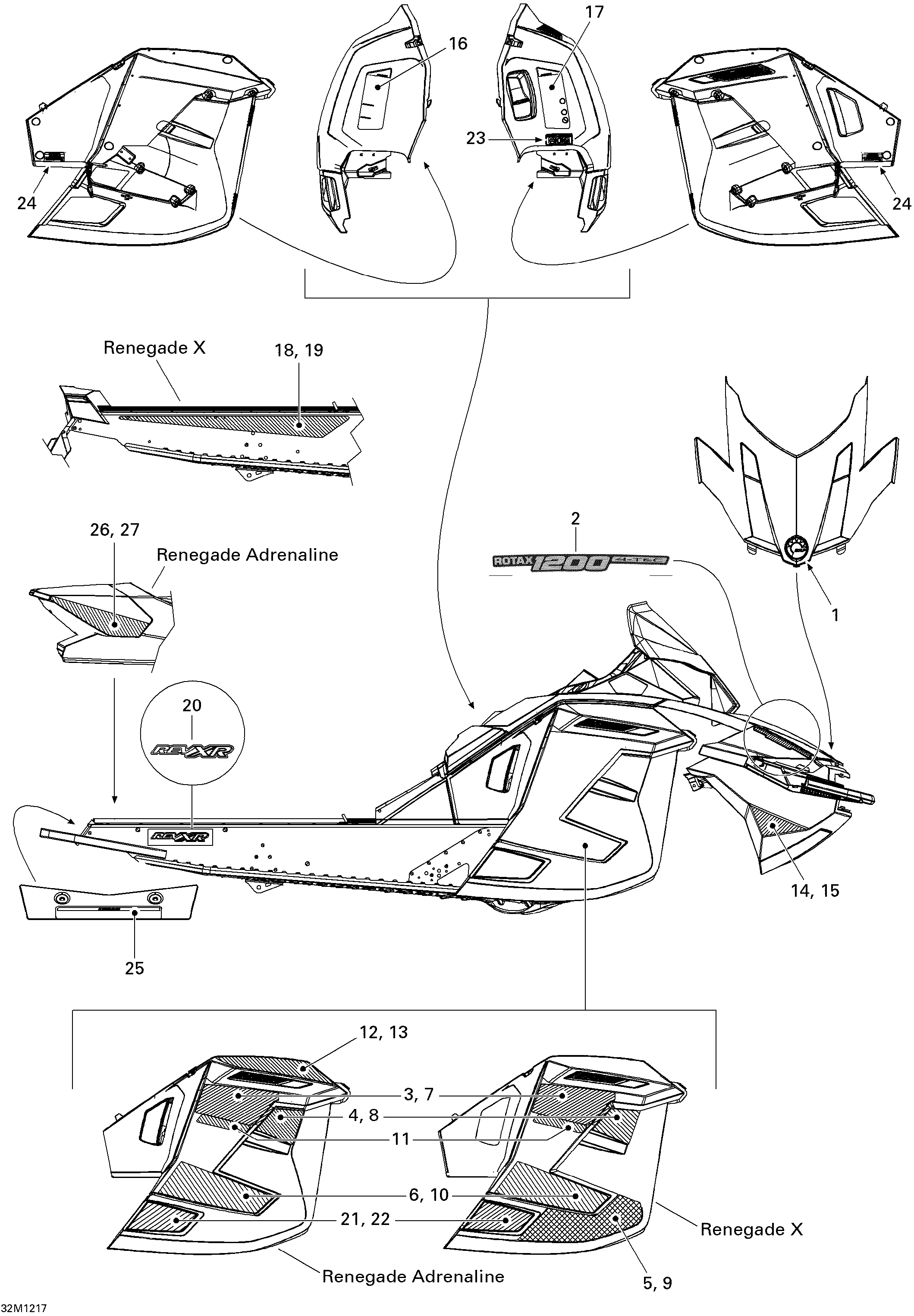

09- Decals X для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516004465 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004842 RH Rear Upper Side Decal. Black-Black ModelRH Rear Upper Side Decal. Black-Black Model
-
3516004854 RH Rear Upper Side Decal. Black-White ModelRH Rear Upper Side Decal. Black-White Model
-
4516004844 RH Front Upper Side Decal. Black-Black ModelRH Front Upper Side Decal. Black-Black Model
-
4516004856 RH Front Upper Side Decal. Black-White ModelRH Front Upper Side Decal. Black-White Model
-
5516004873 RH Front Side DecalRH Front Side Decal
-
6516004875 RH Side DecalRH Side Decal
-
7516004841 LH Rear Upper Side Decal. Black-Black ModelLH Rear Upper Side Decal. Black-Black Model
-
7516004853 LH Rear Upper Side Decal. Black-White ModelLH Rear Upper Side Decal. Black-White Model
-
8516004843 LH Front Upper Side Decal. Black-Black ModelLH Front Upper Side Decal. Black-Black Model
-
8516004855 LH Front Upper Side Decal. Black-White ModelLH Front Upper Side Decal. Black-White Model
-
9516004872 LH Front Side DecalLH Front Side Decal
-
10516004874 LH Side DecalLH Side Decal
-
11516004869 Side Decal, Renegade. Black-White ModelSide Decal, Renegade. Black-White Model
-
11516004880 Side Decal, Renegade. Black-Black ModelSide Decal, Renegade. Black-Black Model
-
14516004871 RH Bottom PanRH Bottom Pan
-
15516004870 LH Bottom PanLH Bottom Pan
-
16516004561 Warning Decal, SecurityWarning Decal, Security
-
17516004888 Warning Decal, SecurityWarning Decal, Security
-
18516004879 RH Frame Decal, REV XRRH Frame Decal, REV XR
-
19516004878 LH Frame Decal, REV XRLH Frame Decal, REV XR
-
21516004877 RH Lower DecalRH Lower Decal
-
22516004876 LH Lower DecalLH Lower Decal
-
23516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
24516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
25516004440 Warning Decal, Track. North AmericaWarning Decal, Track. North America
