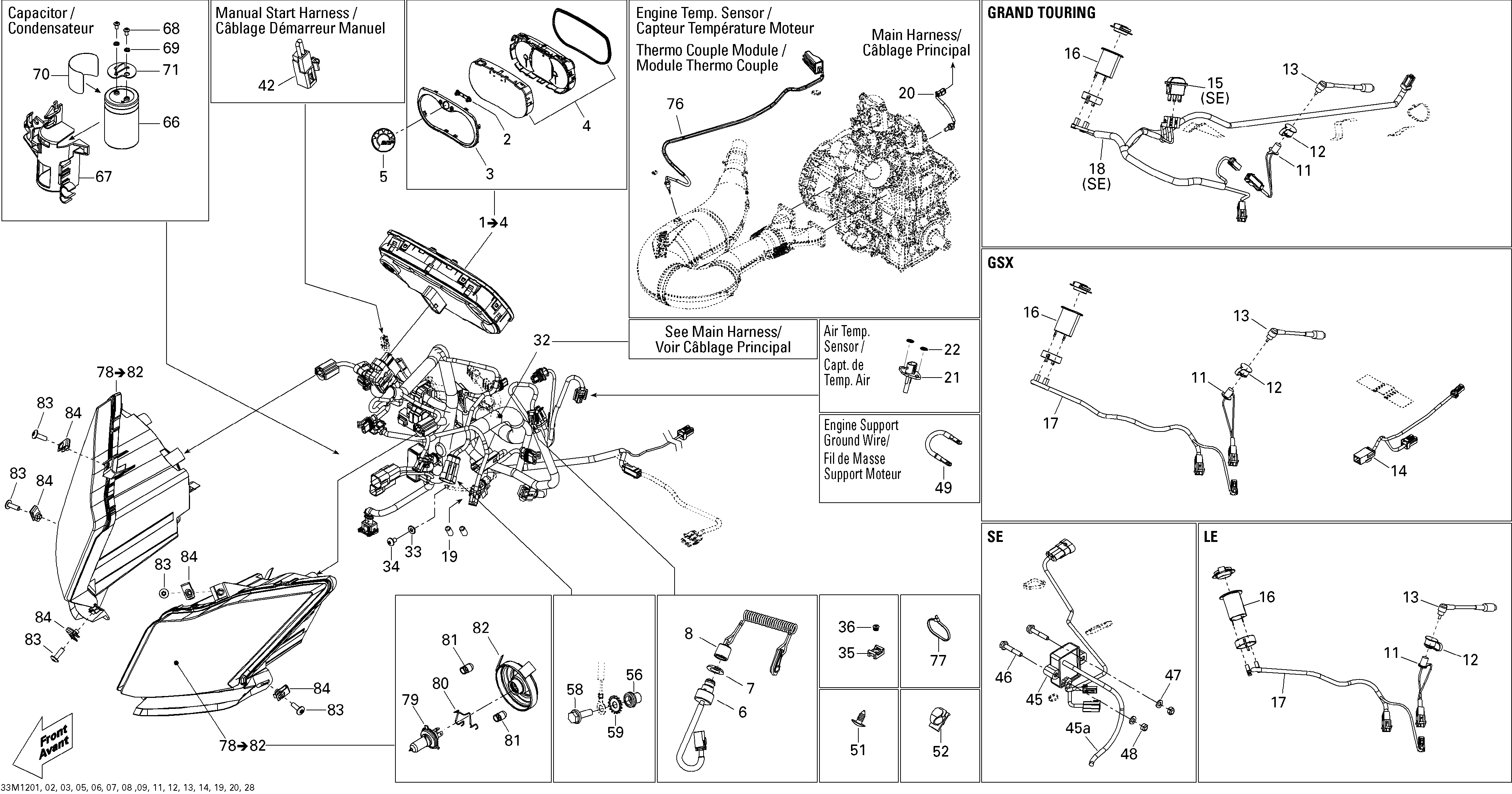

10- Electrical System 800R ETEC для BRP Ski-Doo Renegade Back Country X 800RETEC XP - 2012

  • №
    Артикул
    Название
  • 1
    515177114 Speedometer. Includes 1 to 4
    Speedometer. Includes 1 to 4
  • 5
    219902677 Logo BRP, 20 mm
    Logo BRP, 20 mm
  • 6
    515177249 DESS Switch
    DESS Switch
  • 7
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 8
    515177057 DESS Cap
    DESS Cap
  • 19
    515176141 Cap
    Cap
  • 20
    515176398 Temperature Sensor
    Temperature Sensor
  • 21
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 22
    389804300 Push Nut
    Push Nut
  • 33
    234141601 Lock Washer 4 mm. 800RE
    Lock Washer 4 mm. 800RE
  • 34
    250000127 Torx Screw M4 X 8. 800RE
    Torx Screw M4 X 8. 800RE
  • 42
    515176661 Manual Start Harness. Manual Starter
    Manual Start Harness. Manual Starter
  • 49
    515176861 Ground Wire
    Ground Wire
  • 51
    414644300 Dart. Manual Starter
    Dart. Manual Starter
  • 52
    515177066 Clip. Electrical Starter
    Clip. Electrical Starter
  • 56
    415107300 Insert
    Insert
  • 56
    415107300 Insert. Electrical Starter
    Insert. Electrical Starter
  • 58
    207662044 Hex. Flanged Screw M6 X 20. Electrical Starter
    Hex. Flanged Screw M6 X 20. Electrical Starter
  • 58
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 59
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 66
    515176349 Capacitor
    Capacitor
  • 67
    515176607 Capacitor Support
    Capacitor Support
  • 68
    250000462 Socket Head Screw M10 X 32
    Socket Head Screw M10 X 32
  • 69
    250200026 Lock washer
    Lock washer
  • 70
    516004570 Capacitor Decal
    Capacitor Decal
  • 71
    515177193 Cap
    Cap
  • 77
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 77
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 77
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 77
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 78
    517304194 RH Headlamp Ass'y
    RH Headlamp Ass'y
  • 78
    517304195 LH Headlamp Ass'y
    LH Headlamp Ass'y
  • 79
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 80
    515176493 Bulb Holder
    Bulb Holder
  • 81
    515176498 Cap
    Cap
  • 82
    515176499 Cover
    Cover
  • 83
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 84
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
