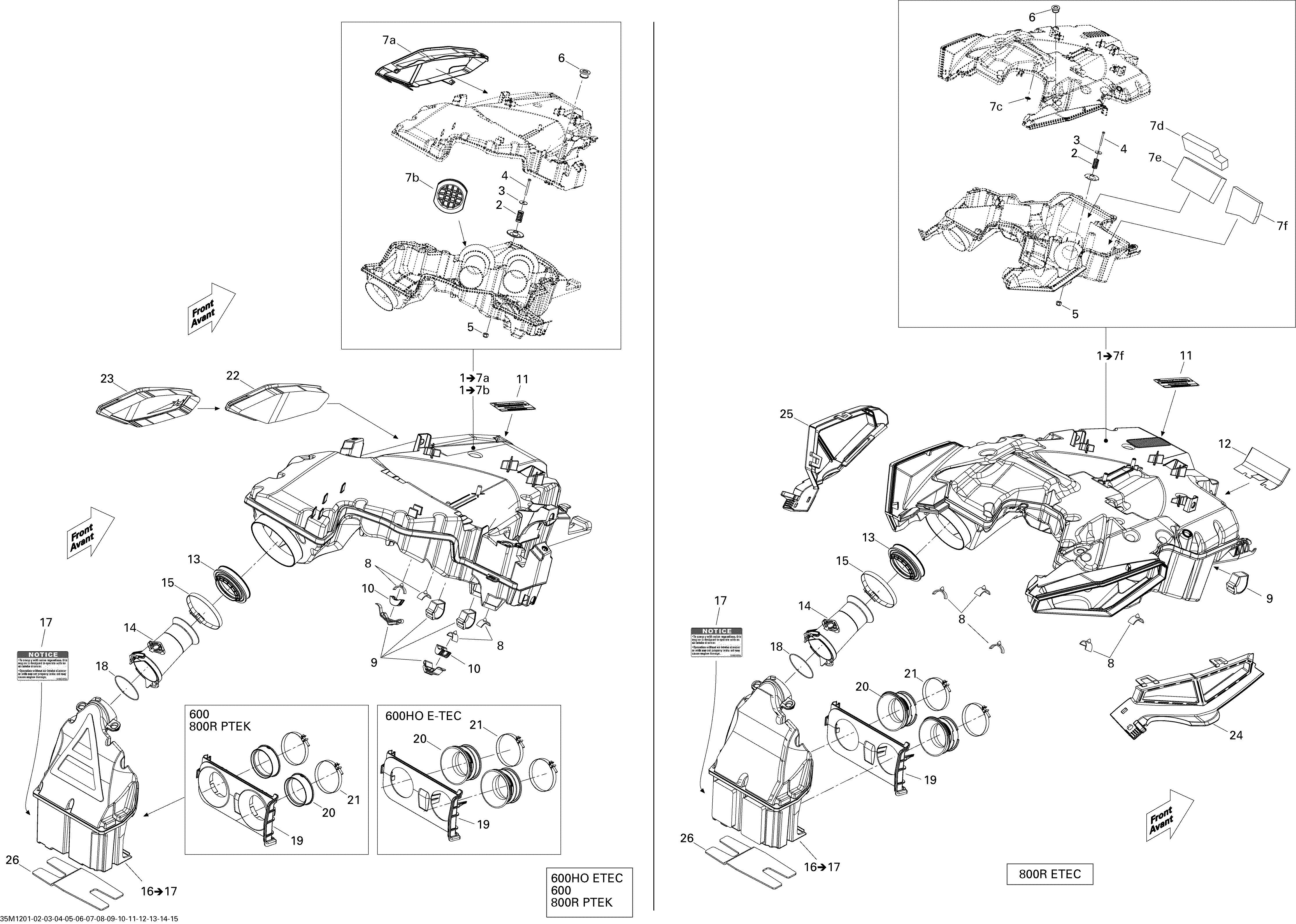

02- Air Intake System 800R ETEC для BRP Ski-Doo Renegade Back Country X 800RETEC XP - 2012

  • №
    Артикул
    Название
  • 1
    508000683 Secondary Chamber Ass'y. Includes 1 to 7f, 800R ETEC
    Secondary Chamber Ass'y. Includes 1 to 7f, 800R ETEC
  • 2
    508000576 Spring
    Spring
  • 3
    224060201 Flat Washer
    Flat Washer
  • 4
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 5
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 6
    508000574 Grommet
    Grommet
  • 8
    508000537 Stopper. 800R ETEC
    Stopper. 800R ETEC
  • 9
    508000532 Strip Velcro. 800R ETEC
    Strip Velcro. 800R ETEC
  • 11
    516004566 Caution Decal, Hot Parts
    Caution Decal, Hot Parts
  • 12
    508000720 Heat Shield. 800R ETEC
    Heat Shield. 800R ETEC
  • 13
    508000567 Boot
    Boot
  • 14
    508000662 Flute
    Flute
  • 15
    514052924 Norma Clamp
    Norma Clamp
  • 16
    508000660 Primary Chamber Ass'y. Includes 16 To 17, 800R ETEC
    Primary Chamber Ass'y. Includes 16 To 17, 800R ETEC
  • 17
    516004572 Decal, Air Intake
    Decal, Air Intake
  • 18
    293300115 O-Ring
    O-Ring
  • 19
    508000613 Plate Adapter
    Plate Adapter
  • 20
    508000614 Air Intake Adapter
    Air Intake Adapter
  • 21
    508000346 Gemi Clamp
    Gemi Clamp
  • 24
    508000688 RH Intake Air Filter. 800R ETEC
    RH Intake Air Filter. 800R ETEC
  • 25
    508000689 LH Intake Air Filter. 800R ETEC
    LH Intake Air Filter. 800R ETEC
  • 26
    508000739 Insulated Foam
    Insulated Foam
  • 7c
    389804300 Push Nut. 800R ETEC
    Push Nut. 800R ETEC
  • 7D
    508000696 LH Upper Foam. 800R ETEC
    LH Upper Foam. 800R ETEC
  • 7E
    508000697 LH Lower Foam. 800R ETEC
    LH Lower Foam. 800R ETEC
  • 7f
    508000706 RH Lower Foam. 800R ETEC
    RH Lower Foam. 800R ETEC
