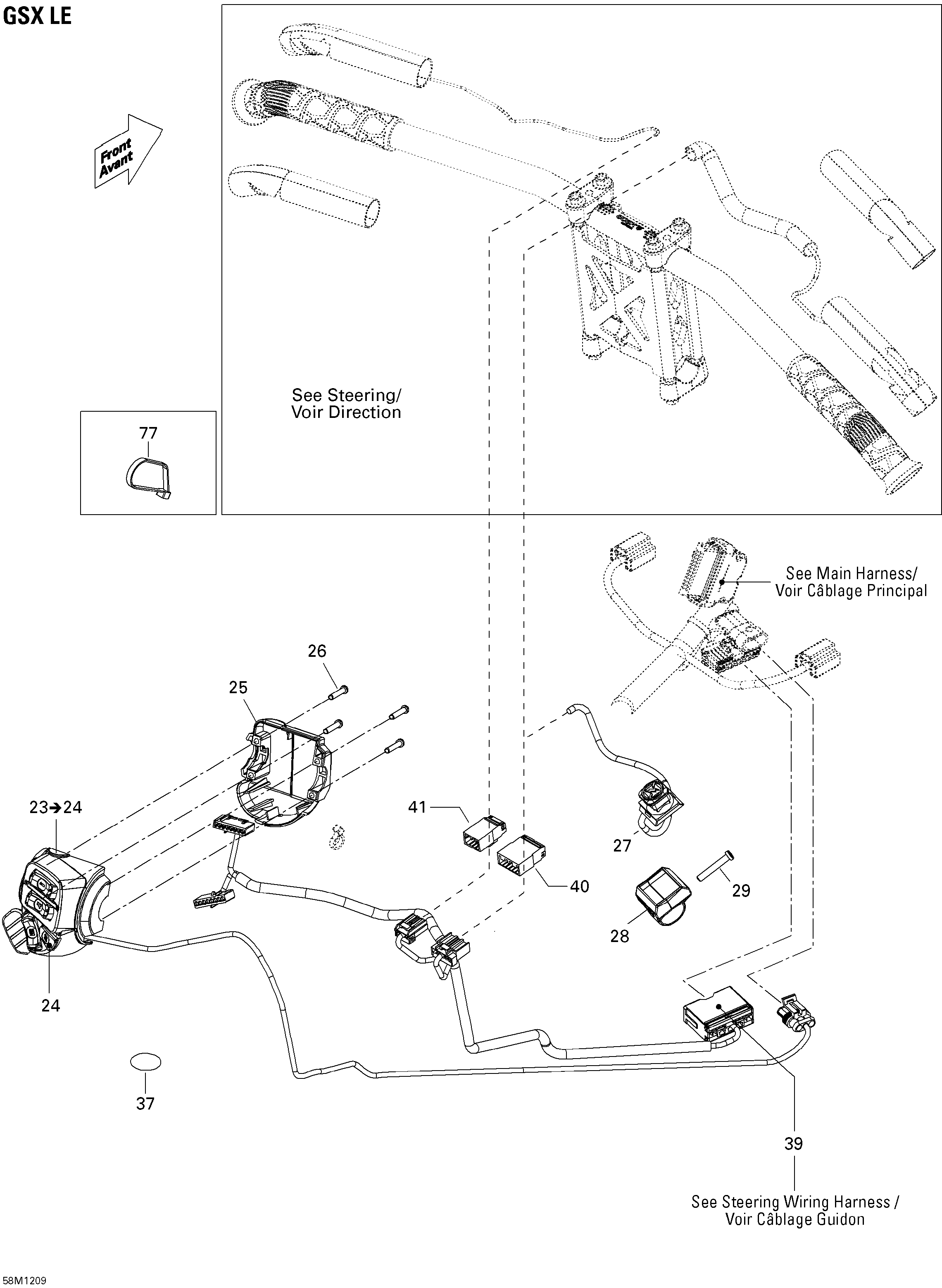

10- Electrical Accessories, Steering для BRP Ski-Doo GSX LE 600HOETEC XP - 2012
-
№АртикулНазвание
-
23515177020 LH Housing. GSXLH Housing. GSX
-
24515176088 Start/RER Button. GSXStart/RER Button. GSX
-
25515175926 Housing Switch Plate. GSXHousing Switch Plate. GSX
-
26250000263 Torx Screw #8-18. GSXTorx Screw #8-18. GSX
-
27515177061 Kill SwitchKill Switch
-
28515176825 Kill Switch SupportKill Switch Support
-
29250000263 Torx Screw #8-18Torx Screw #8-18
-
37518325560 Adhesive Patch. Except SEAdhesive Patch. Except SE
-
39515176868 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
40515175662 Male Terminal Housing, 6 Circuits. GSXMale Terminal Housing, 6 Circuits. GSX
-
41515175846 Male Terminal Housing, 4 Circuits. GSXMale Terminal Housing, 4 Circuits. GSX
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750009 Tie-Rap 173 mmTie-Rap 173 mm
