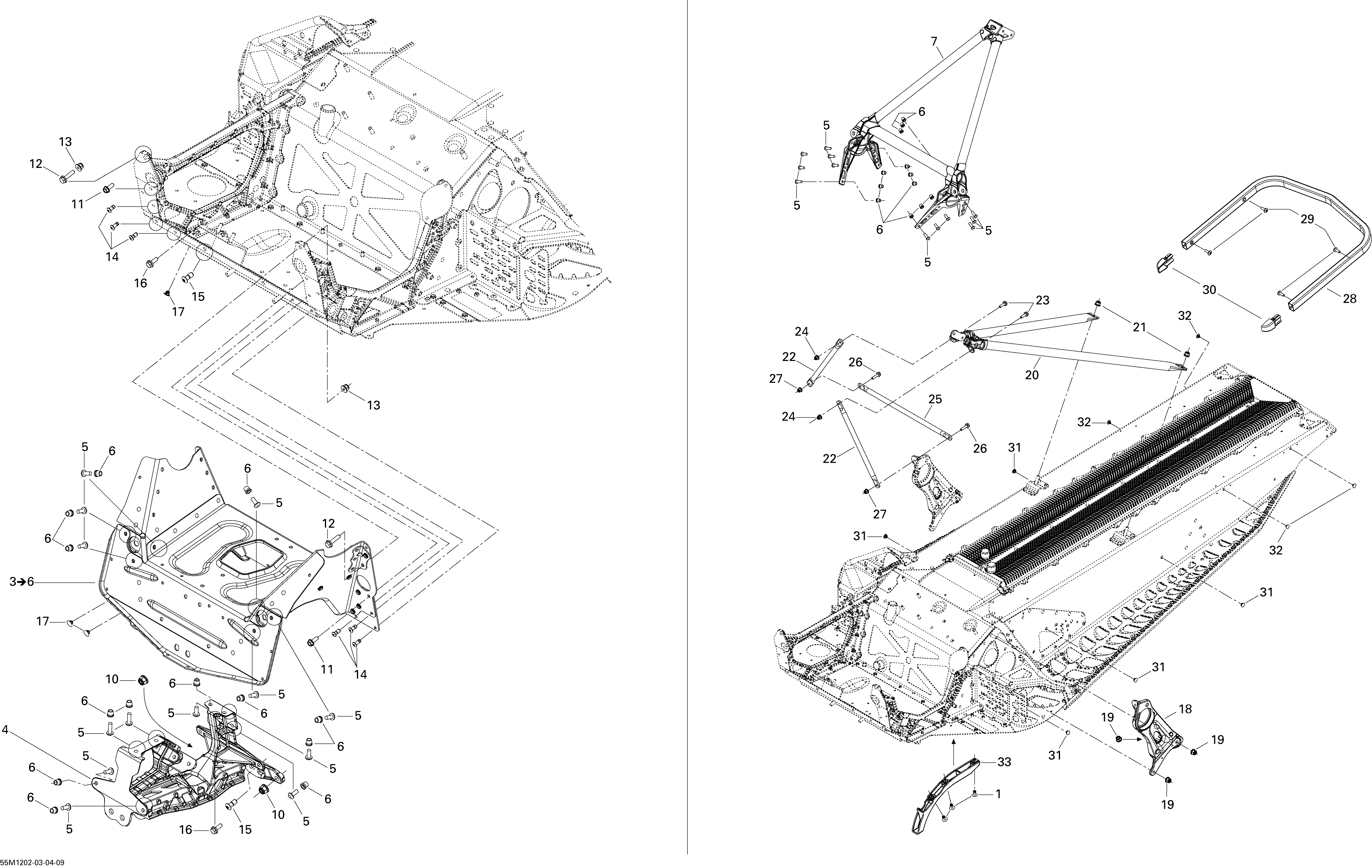

09- Frame and Components для BRP Ski-Doo GSX LE 600HOETEC XP - 2012
‹-+›
-
№АртикулНазвание
-
1293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3518325924 S-Module. Includes 3 to 6S-Module. Includes 3 to 6
-
4518325925 Front Suspension SupportFront Suspension Support
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7518326970 Front MemberFront Member
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
15293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
16207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17293730042 DartDart
-
18518326192 Driven Pulley SupportDriven Pulley Support
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20518326559 Rear MemberRear Member
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22518325114 Upper Column SupportUpper Column Support
-
23207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25518325115 Center Column SupportCenter Column Support
-
26207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28518324980 Rear BumperRear Bumper
-
29250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
30520000567 CapCap
-
31293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
33518326973 Front ProtectorFront Protector
