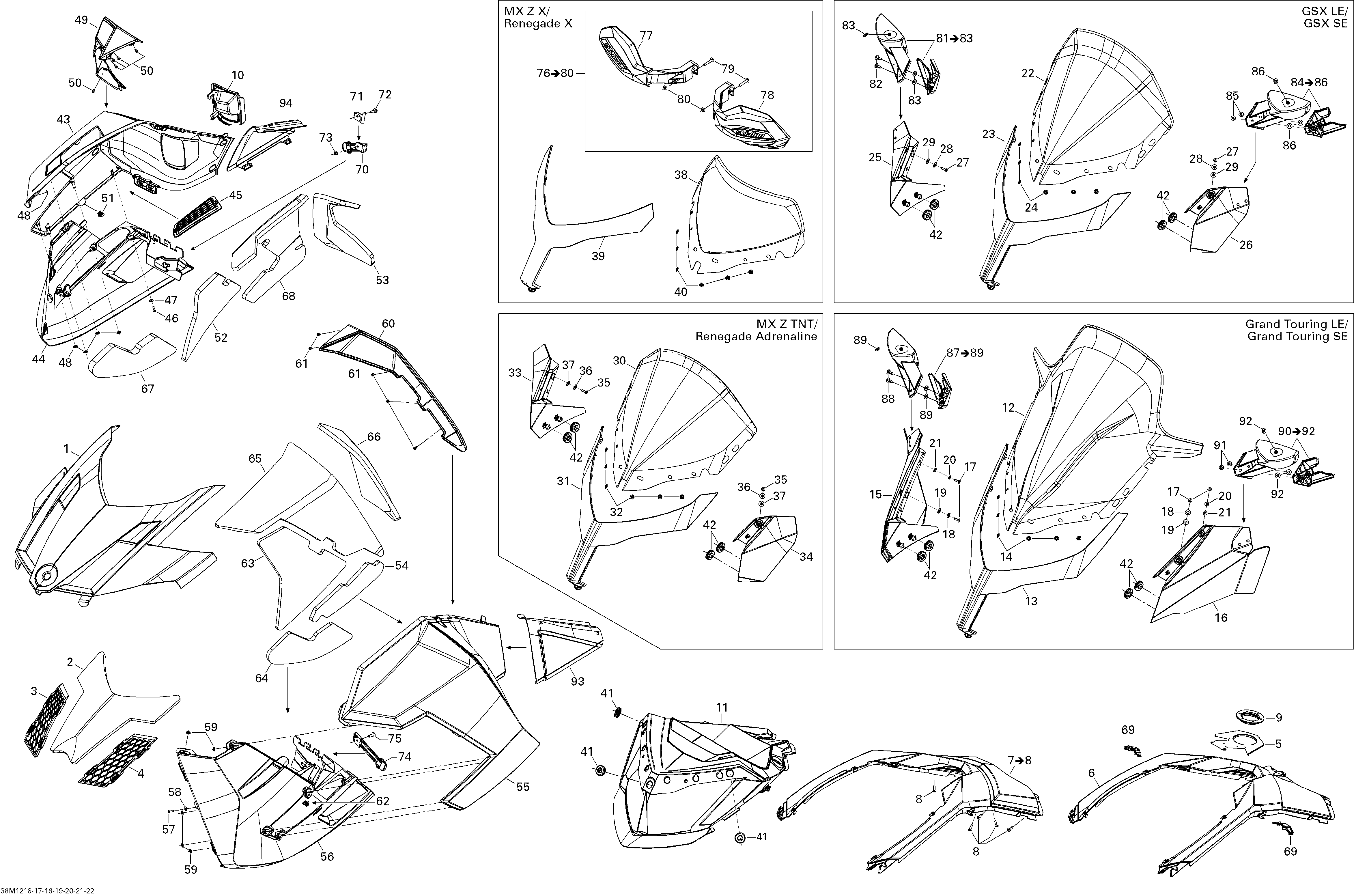

09- Hood, Windshield And Console LE для BRP Ski-Doo GSX LE & SE 1200 XR - 2012

  • №
    Артикул
    Название
  • 1
    517304374 Hood, Bright White
    Hood, Bright White
  • 2
    517304893 Hood Foam
    Hood Foam
  • 3
    517303805 RH Hood Grill
    RH Hood Grill
  • 4
    517303804 LH Hood Grill
    LH Hood Grill
  • 5
    517304027 Cap Console
    Cap Console
  • 6
    517304381 Console, Bright White
    Console, Bright White
  • 9
    517304518 Console Nut
    Console Nut
  • 11
    517303971 Indicator Support
    Indicator Support
  • 22
    517303797 Hight Windshield (430)
    Hight Windshield (430)
  • 23
    517303798 Medium Windshield Support
    Medium Windshield Support
  • 24
    732610072 Push Nut
    Push Nut
  • 25
    517303799 RH Console Air Deflector
    RH Console Air Deflector
  • 26
    517303800 LH Console Air Deflector
    LH Console Air Deflector
  • 27
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 28
    250200025 Washer M5
    Washer M5
  • 29
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 41
    517303756 Grommet
    Grommet
  • 42
    517303756 Grommet
    Grommet
  • 43
    517304006 RH Pannel, Black
    RH Pannel, Black
  • 44
    517304373 RH Pannel Moulding
    RH Pannel Moulding
  • 45
    517303801 Pannel Grill
    Pannel Grill
  • 46
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 47
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 48
    732610072 Push Nut
    Push Nut
  • 51
    517302785 Clip
    Clip
  • 52
    517304894 Central Foam Panel RH
    Central Foam Panel RH
  • 53
    517304895 Rear Panel Foam RH
    Rear Panel Foam RH
  • 54
    517304897 Central Foam Panel LH
    Central Foam Panel LH
  • 55
    517303753 LH Pannel, Black
    LH Pannel, Black
  • 56
    517304362 LH Pannel Moulding
    LH Pannel Moulding
  • 57
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 58
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 59
    732610072 Push Nut
    Push Nut
  • 62
    517302785 Clip
    Clip
  • 63
    517304899 LH Central Panel Foam
    LH Central Panel Foam
  • 64
    517304901 LH Lower Panel Foam
    LH Lower Panel Foam
  • 65
    517304902 LH Upper Panel Foam
    LH Upper Panel Foam
  • 66
    517304904 LH Rear Panel Foam
    LH Rear Panel Foam
  • 67
    517304905 RH Lower Panel Foam
    RH Lower Panel Foam
  • 68
    517304908 RH Upper Panel Foam
    RH Upper Panel Foam
  • 69
    517305000 Panel Latch
    Panel Latch
  • 70
    517303612 RH Panel Latch
    RH Panel Latch
  • 71
    517304221 Latch Support
    Latch Support
  • 72
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 73
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 74
    517303808 LH Panel Latch
    LH Panel Latch
  • 75
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 81
    517305100 RH Mirror Ass'y. Includes 81 to 83
    RH Mirror Ass'y. Includes 81 to 83
  • 82
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 83
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 84
    517305101 LH Mirror Ass'y. Includes 84 to 86
    LH Mirror Ass'y. Includes 84 to 86
  • 85
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 86
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
