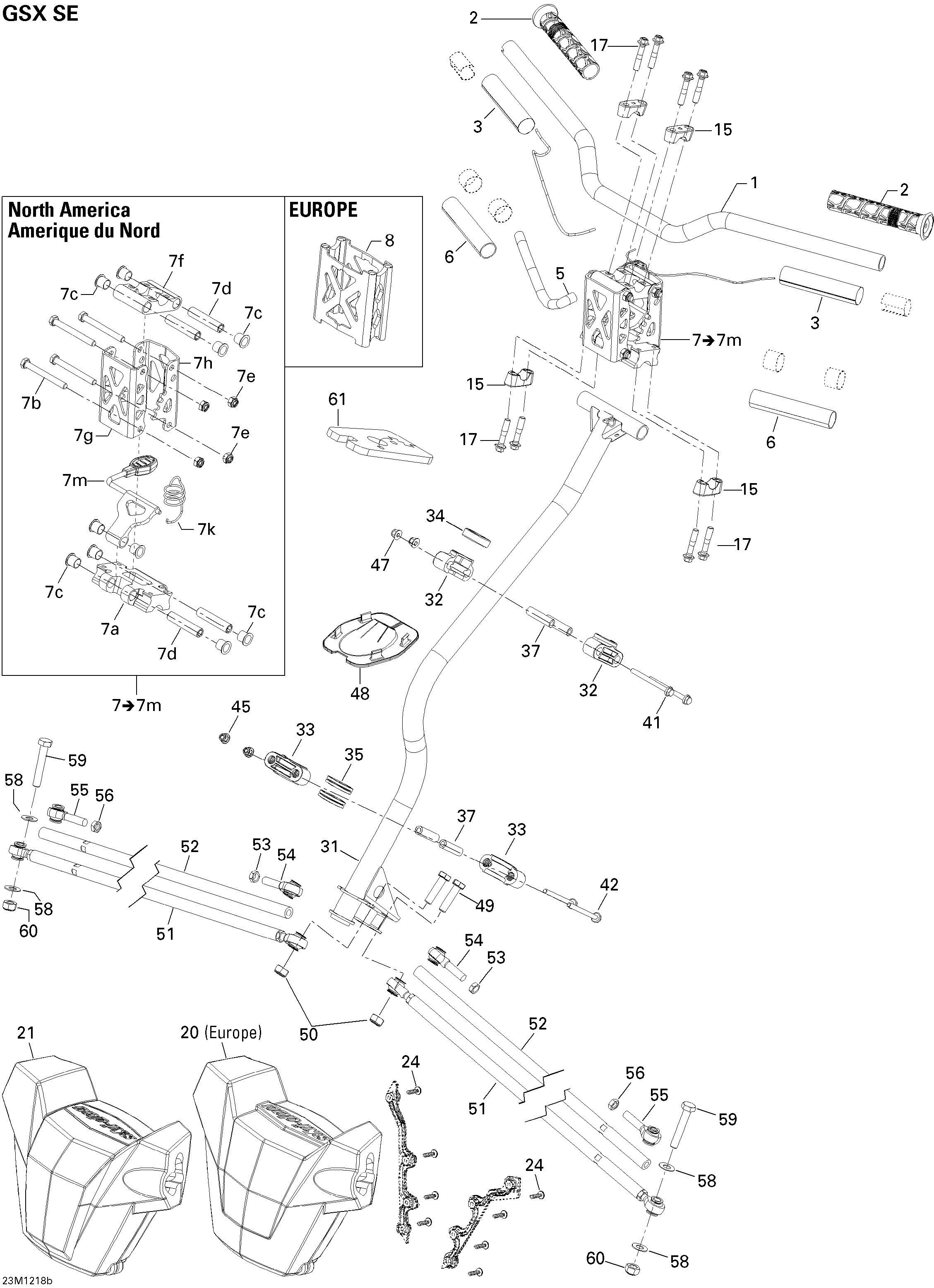

07- Steering для BRP Ski-Doo GSX LE & SE 1200 XR - 2012

  • №
    Артикул
    Название
  • 1
    506152304 Handle Bar. SE
    Handle Bar. SE
  • 2
    506152424 Grip. SE
    Grip. SE
  • 3
    506152422 Heating Element. SE
    Heating Element. SE
  • 5
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 6
    506152423 Insulant. SE
    Insulant. SE
  • 7
    506152197 Adjustable Handlebar. SE North America
    Adjustable Handlebar. SE North America
  • 7b
    207088544 Hex. Screw M8 X 85. SE North America
    Hex. Screw M8 X 85. SE North America
  • 7c
    506152520 Cushion. SE North America
    Cushion. SE North America
  • 7E
    233281414 Hex. Flanged Elastic Nut M8. SE North America
    Hex. Flanged Elastic Nut M8. SE North America
  • 7k
    506152184 Spring. SE North America
    Spring. SE North America
  • 7m
    506152411 Handle Ass'y. SE North America
    Handle Ass'y. SE North America
  • 8
    860200268 Handlebar Extension Kit. SE Europe
    Handlebar Extension Kit. SE Europe
  • 15
    506152395 Steering Support
    Steering Support
  • 17
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 20
    506152307 Steering Pad. SE Europe
    Steering Pad. SE Europe
  • 21
    506152330 Steering Pad. SE North America
    Steering Pad. SE North America
  • 24
    250000400 Torx Screw K50 X 20. SE
    Torx Screw K50 X 20. SE
  • 31
    506152469 Main Tube
    Main Tube
  • 32
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 33
    506152217 Lower Half-Housing
    Lower Half-Housing
  • 34
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 35
    506152218 Lower Vibration Ring
    Lower Vibration Ring
  • 37
    506152297 Housing Bushing
    Housing Bushing
  • 41
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 42
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 45
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 47
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 48
    506152163 Plate
    Plate
  • 49
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 50
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 52
    506152496 Tie-Rod
    Tie-Rod
  • 53
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
  • 54
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 55
    506152019 RH Thread Ball Joint
    RH Thread Ball Joint
  • 56
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 58
    506152194 Washer
    Washer
  • 59
    207006044 Hex. Screw M10 X 60
    Hex. Screw M10 X 60
  • 60
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 61
    506152521 Cushion
    Cushion
