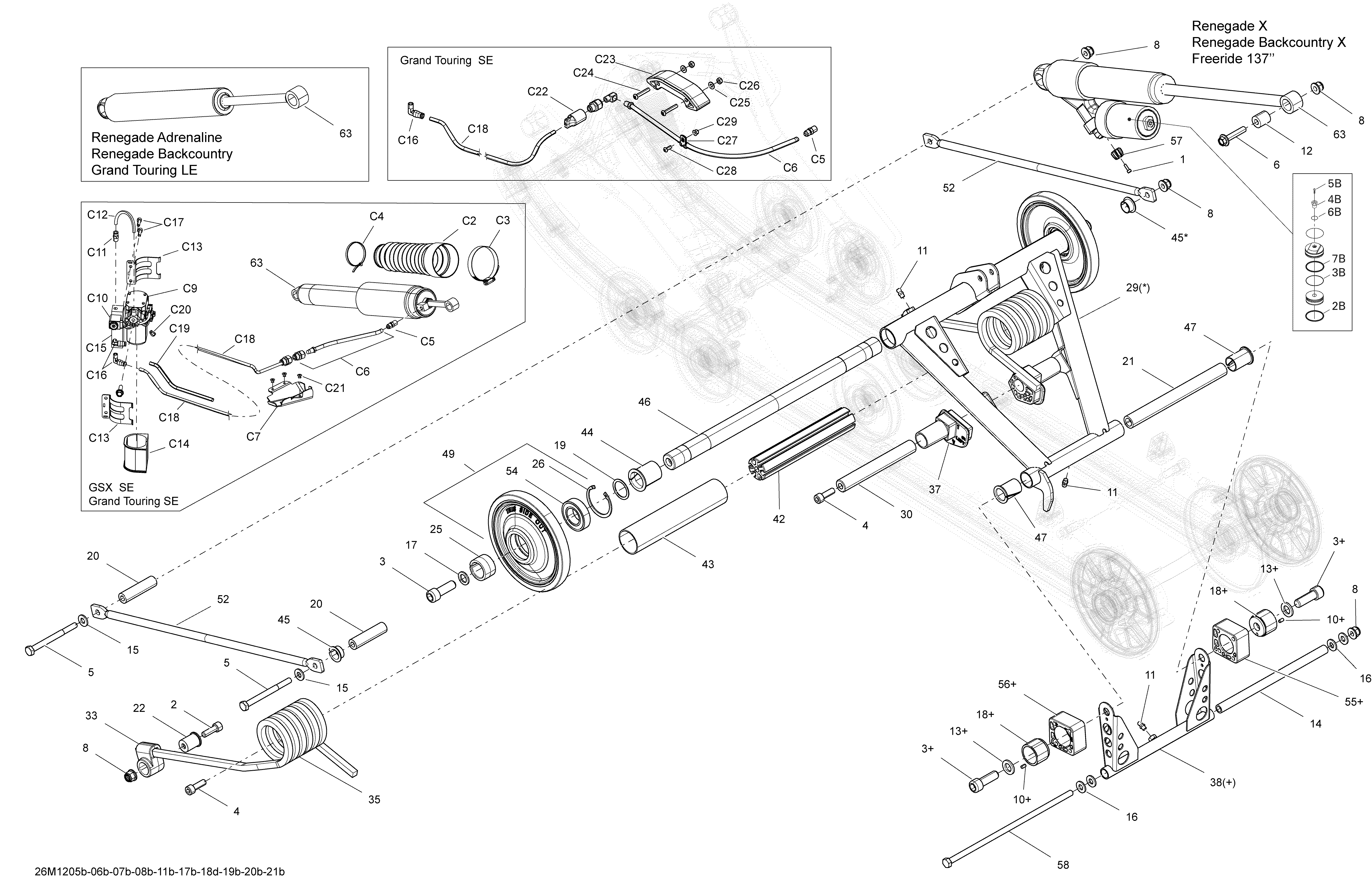

08- Rear Suspension Rear Arm, Shock для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
2250000477 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
3250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
4205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
5207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
6207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
8250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
10250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
11408200700 Grease FittingGrease Fitting
-
12414936000 CushionCushion
-
13503189148 WasherWasher
-
14503189156 Pivot Arm AxlePivot Arm Axle
-
15503189157 WasherWasher
-
16503192494 WasherWasher
-
17503192491 WasherWasher
-
18503189488 Block GuideBlock Guide
-
19503190328 WasherWasher
-
20503190643 Bar AxleBar Axle
-
21503192330 Lower ShaftLower Shaft
-
22503190754 Retainer CushionRetainer Cushion
-
25503191099 Retaining RingRetaining Ring
-
26415129371 Retaining RingRetaining Ring
-
29503191967 Rear Arm Ass'yRear Arm Ass'y
-
30503191178 Spring Cam AxeSpring Cam Axe
-
33503191183 Spring SupportSpring Support
-
35503191617 LH Spring, Square. Grand Touring LELH Spring, Square. Grand Touring LE
-
35503192062 LH Spring, Square. Grand Touring SELH Spring, Square. Grand Touring SE
-
35503191616 RH Spring, Square. Grand Touring LERH Spring, Square. Grand Touring LE
-
35503192061 RH Spring, Square. Grand Touring SERH Spring, Square. Grand Touring SE
-
37503191191 LH Spring CamLH Spring Cam
-
37503191190 RH Spring CamRH Spring Cam
-
38503191302 Pivot ArmPivot Arm
-
42503191344 Spring AxleSpring Axle
-
43503191345 Plastic BushingPlastic Bushing
-
44503191451 CushionCushion
-
45503191555 Swivel BushingSwivel Bushing
-
46503191571 Upper ShaftUpper Shaft
-
47503191640 CushionCushion
-
49503191739 Wheel 144 mm Ass'y. Grand Touring LEWheel 144 mm Ass'y. Grand Touring LE
-
49503191738 Wheel, 155 mm. Grand Touring SEWheel, 155 mm. Grand Touring SE
-
52503191974 Link Rod. Grand Touring LELink Rod. Grand Touring LE
-
52503192083 Throttle Rod. Grand Touring SEThrottle Rod. Grand Touring SE
-
54503191982 Ball BearingBall Bearing
-
55503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
56503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
58503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
63503191853 Rear Shock. Grand Touring LERear Shock. Grand Touring LE
-
63503192648 Rear Shock. Grand Touring SERear Shock. Grand Touring SE
-
C2570278300 Protection BootProtection Boot
-
C3293650064 Tridon ClampTridon Clamp
-
C4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
C5503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
C6503192652 Air Hose Ass'yAir Hose Ass'y
-
C9503192517 CompressorCompressor
-
C10706000940 Check ValveCheck Valve
-
C11706000869 ConnectorConnector
-
C12415129507 HoseHose
-
C13503193103 Compressor Bracket. Grand Touring SECompressor Bracket. Grand Touring SE
-
C14706000631 Compressor Isolator. Grand Touring SECompressor Isolator. Grand Touring SE
-
C15503193008 SolenoidSolenoid
-
C16706000872 Elbow 90°Elbow 90°
-
C17205061644 Socket Head Screw M6 X 16. Grand Touring SESocket Head Screw M6 X 16. Grand Touring SE
-
C18415129507 HoseHose
-
C19515175442 Tubing 6 mm. Grand Touring SETubing 6 mm. Grand Touring SE
-
C20414115200 Tie-Rap 180 mm. Grand Touring SETie-Rap 180 mm. Grand Touring SE
-
C22503191826 Cap. Grand Touring SECap. Grand Touring SE
-
C23503192731 Sliding Pad. Grand Touring SESliding Pad. Grand Touring SE
-
C24250000406 Socket Screw Head Flange M6 X 35. Grand Touring SESocket Screw Head Flange M6 X 35. Grand Touring SE
-
C25224061121 Flat Washer. Grand Touring SEFlat Washer. Grand Touring SE
-
C26232561414 Elastic Stop Nut M6. Grand Touring SEElastic Stop Nut M6. Grand Touring SE
-
C27705600459 Clamp. Grand Touring SEClamp. Grand Touring SE
-
C28235551494 Torx Screw M5 X 14. Grand Touring SETorx Screw M5 X 14. Grand Touring SE
-
C29233251414 Hex. Flanged Elastic Nut M5. Grand Touring SEHex. Flanged Elastic Nut M5. Grand Touring SE
