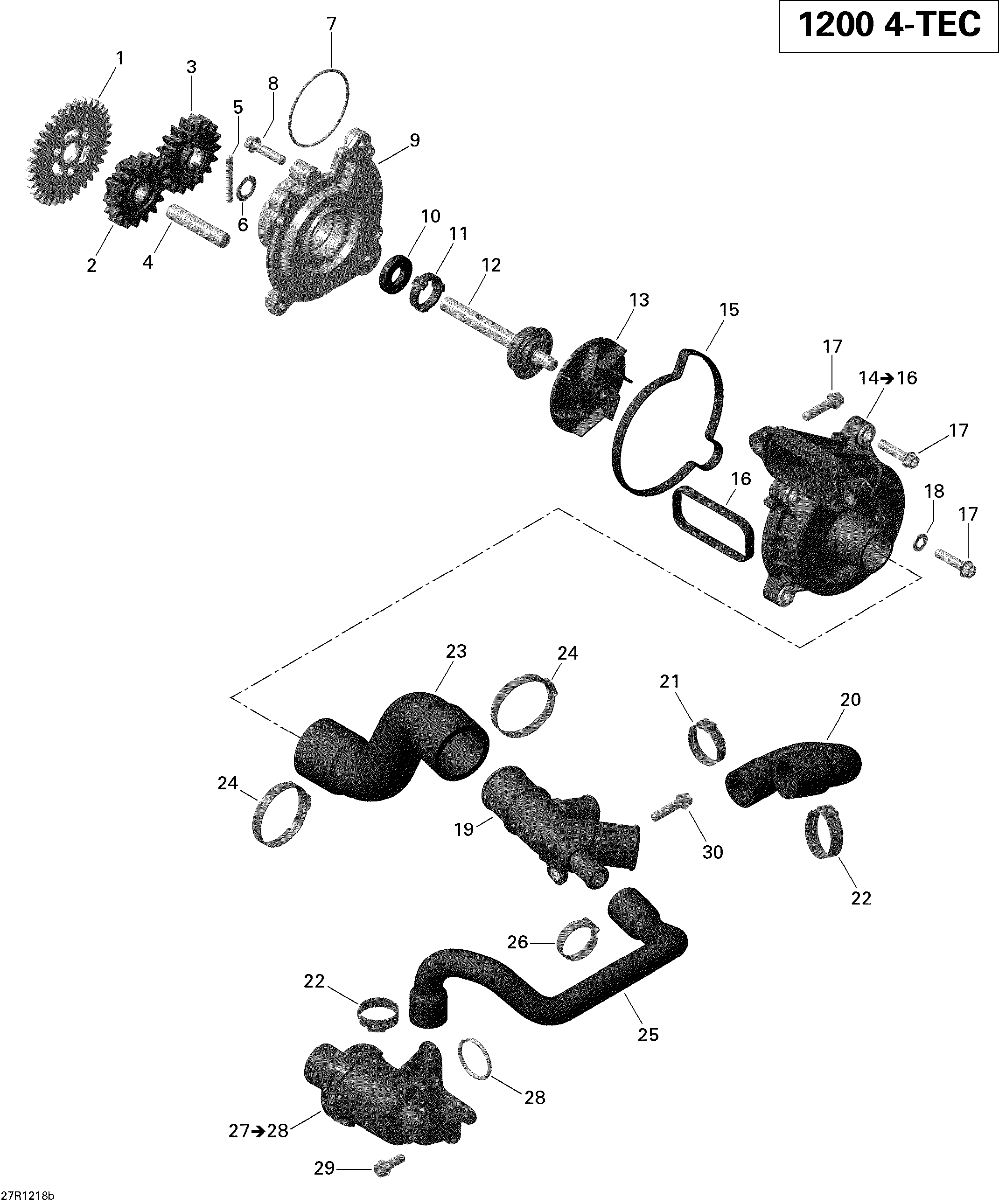

01- Engine Cooling _2-3 для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1420835061 Idle Gear, 34 TeethIdle Gear, 34 Teeth
-
2420835062 Idle Gear, 17 TeethIdle Gear, 17 Teeth
-
3420835070 Water Pump Gear, 18 TeethWater Pump Gear, 18 Teeth
-
4420229302 Location PinLocation Pin
-
5420832660 Needle PinNeedle Pin
-
6420827590 Thrust WasherThrust Washer
-
7293300117 O-RingO-Ring
-
8420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
9420910230 Step CollarStep Collar
-
10420650315 Oil SealOil Seal
-
11420947430 Spacer RingSpacer Ring
-
12420837921 Water Pump ShaftWater Pump Shaft
-
13420922805 Water ImpellerWater Impeller
-
14420822460 Water Pump Housing Ass'y. Includes 14 to 16Water Pump Housing Ass'y. Includes 14 to 16
-
15420430780 GasketGasket
-
16420431290 GasketGasket
-
17420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420230415 Seal WasherSeal Washer
-
19420922141 Water ManifoldWater Manifold
-
20420922091 Molded HoseMolded Hose
-
21420851673 Gear ClampGear Clamp
-
22420851663 Gear ClampGear Clamp
-
23420460461 Molded HoseMolded Hose
-
24420951293 Gear ClampGear Clamp
-
25420922132 Molded HoseMolded Hose
-
26420851663 Gear ClampGear Clamp
-
27420822541 Thermostat Housing Ass'y. Includes 27 to 28Thermostat Housing Ass'y. Includes 27 to 28
-
28420631876 O-RingO-Ring
-
29420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
30420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
