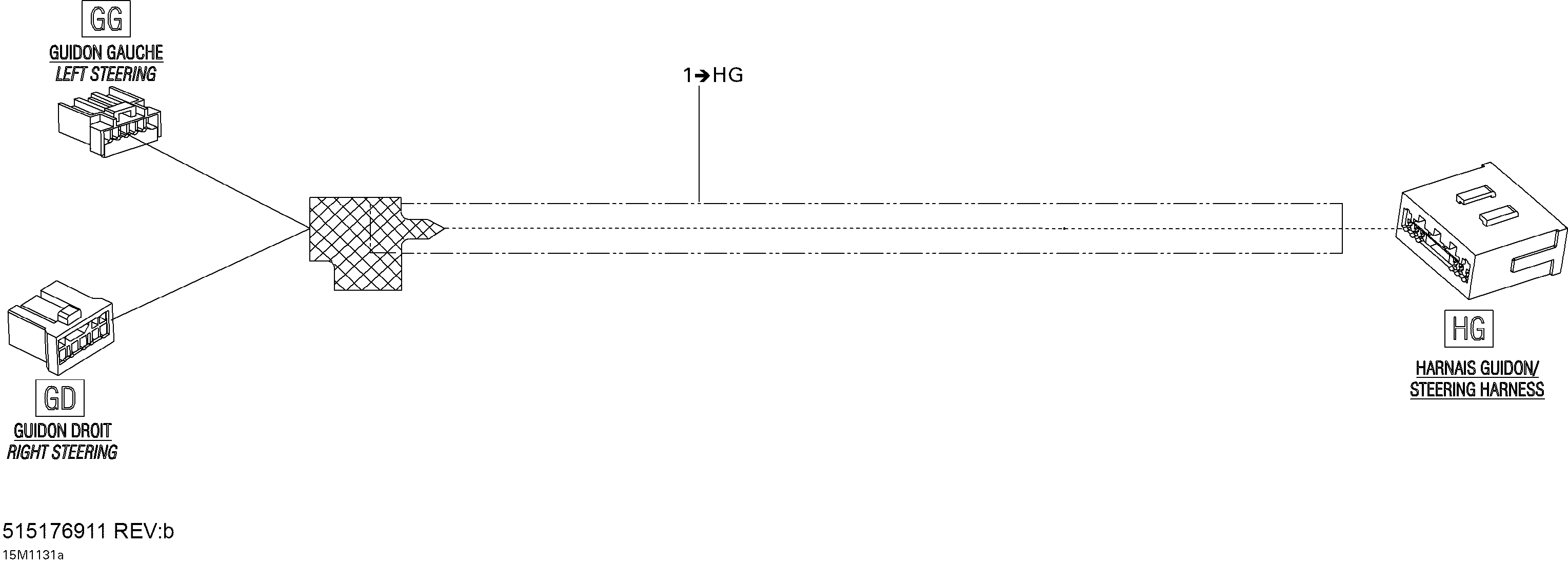

10- Steering Wiring Harness STD для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1515176911 Steering Wiring Harness. Includes 1 to HGSteering Wiring Harness. Includes 1 to HG
-
GD515175231 Female TerminalFemale Terminal
-
GD515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
GG515175231 Female TerminalFemale Terminal
-
GG515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
HG515175232 Male TerminalMale Terminal
-
HG515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
