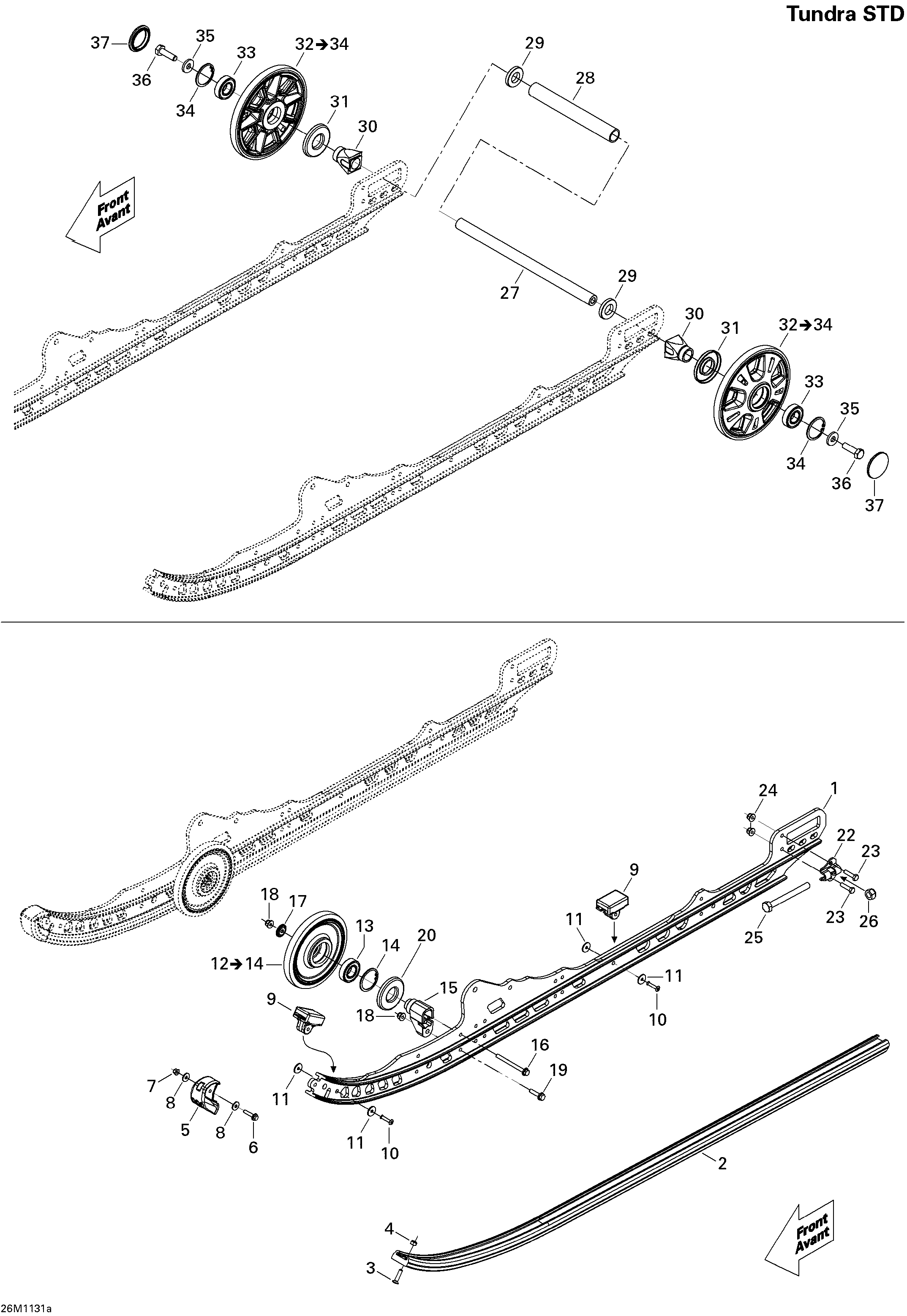

08- Rear Suspension STD 137'' для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011

  • №
    Артикул
    Название
  • 1
    503192902 Runner 137''
    Runner 137''
  • 2
    503191619 Slider
    Slider
  • 3
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 4
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    503191137 Runner Protector
    Runner Protector
  • 6
    207652544 Hex. Flanged Screw M5 X 25
    Hex. Flanged Screw M5 X 25
  • 7
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 8
    391301600 Washer
    Washer
  • 9
    503190576 Rubber Stopper
    Rubber Stopper
  • 10
    293150142 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 11
    503191273 Washer
    Washer
  • 12
    503191311 Wheel Ass'y, 147 mm. Includes 12 to 14
    Wheel Ass'y, 147 mm. Includes 12 to 14
  • 13
    503190396 Ball Bearing
    Ball Bearing
  • 14
    415129371 Retaining Ring
    Retaining Ring
  • 15
    503192793 Molded Support
    Molded Support
  • 16
    250000475 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 17
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 18
    250100130 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 19
    250000476 Hex. Flange Screw M6 X 25
    Hex. Flange Screw M6 X 25
  • 20
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 22
    503192814 Tensioner
    Tensioner
  • 23
    250000479 Hex. Screw Cap Full Thread M6 X 25
    Hex. Screw Cap Full Thread M6 X 25
  • 24
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 25
    250000481 Hex. Screw Cap Full Thread M10 X 100
    Hex. Screw Cap Full Thread M10 X 100
  • 26
    250100132 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 27
    503190429 Rear Axle
    Rear Axle
  • 28
    503191108 Spacer
    Spacer
  • 29
    503190432 Washer
    Washer
  • 30
    503190428 Rear Wheel Spacer
    Rear Wheel Spacer
  • 31
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 32
    503191559 Wheel, 180 mm, Black. Includes 32 to 34
    Wheel, 180 mm, Black. Includes 32 to 34
  • 33
    503190396 Ball Bearing
    Ball Bearing
  • 34
    415129371 Retaining Ring
    Retaining Ring
  • 35
    503190439 Washer
    Washer
  • 36
    250000019 Hex. Screw With Nylon
    Hex. Screw With Nylon
  • 37
    570063600 Wheel Cap
    Wheel Cap
