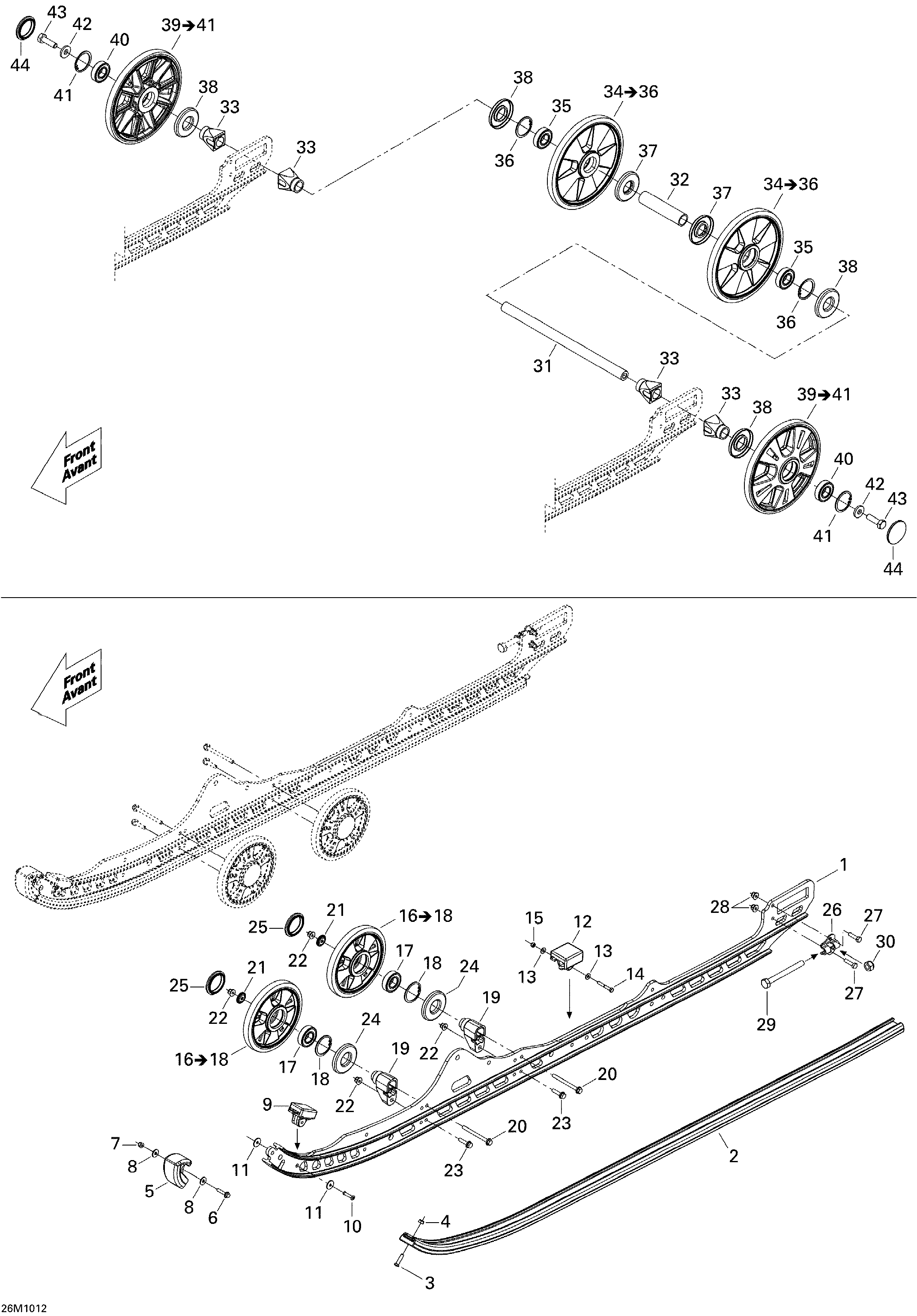

08- Rear Suspension для BRP Ski-Doo Summit HillClimb - 2010
-
№АртикулНазвание
-
1503192206 Runner 154''Runner 154''
-
2503191198 Slider Shoe 154''Slider Shoe 154''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503190741 Rail StopperRail Stopper
-
13391301700 WasherWasher
-
14207053544 Hex. Screw M5 X 35Hex. Screw M5 X 35
-
15232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
16503191755 Wheel 152, Black. Includes 16 to 18Wheel 152, Black. Includes 16 to 18
-
17503190396 Ball BearingBall Bearing
-
18415129371 Retaining RingRetaining Ring
-
19503191833 SupportSupport
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21503191820 Wheel Cup M6Wheel Cup M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
24503190434 Labyrinth SealLabyrinth Seal
-
25570063600 Wheel CapWheel Cap
-
26503190380 TensionerTensioner
-
27207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
28233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
30233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
31503190429 Rear AxleRear Axle
-
32503191263 Rear SpacerRear Spacer
-
33503190428 Rear Wheel SpacerRear Wheel Spacer
-
34503191877 Wheel 200. Includes 34 to 36Wheel 200. Includes 34 to 36
-
35503190396 Ball BearingBall Bearing
-
36415129371 Retaining RingRetaining Ring
-
37503190682 Labyrinth SealLabyrinth Seal
-
38503190434 Labyrinth SealLabyrinth Seal
-
39503191741 Wheel 200. Includes 39 to 41Wheel 200. Includes 39 to 41
-
40503190396 Ball BearingBall Bearing
-
41415129371 Retaining RingRetaining Ring
-
42503190439 WasherWasher
-
43250000019 Hex. Screw With NylonHex. Screw With Nylon
-
44570063600 Wheel CapWheel Cap
