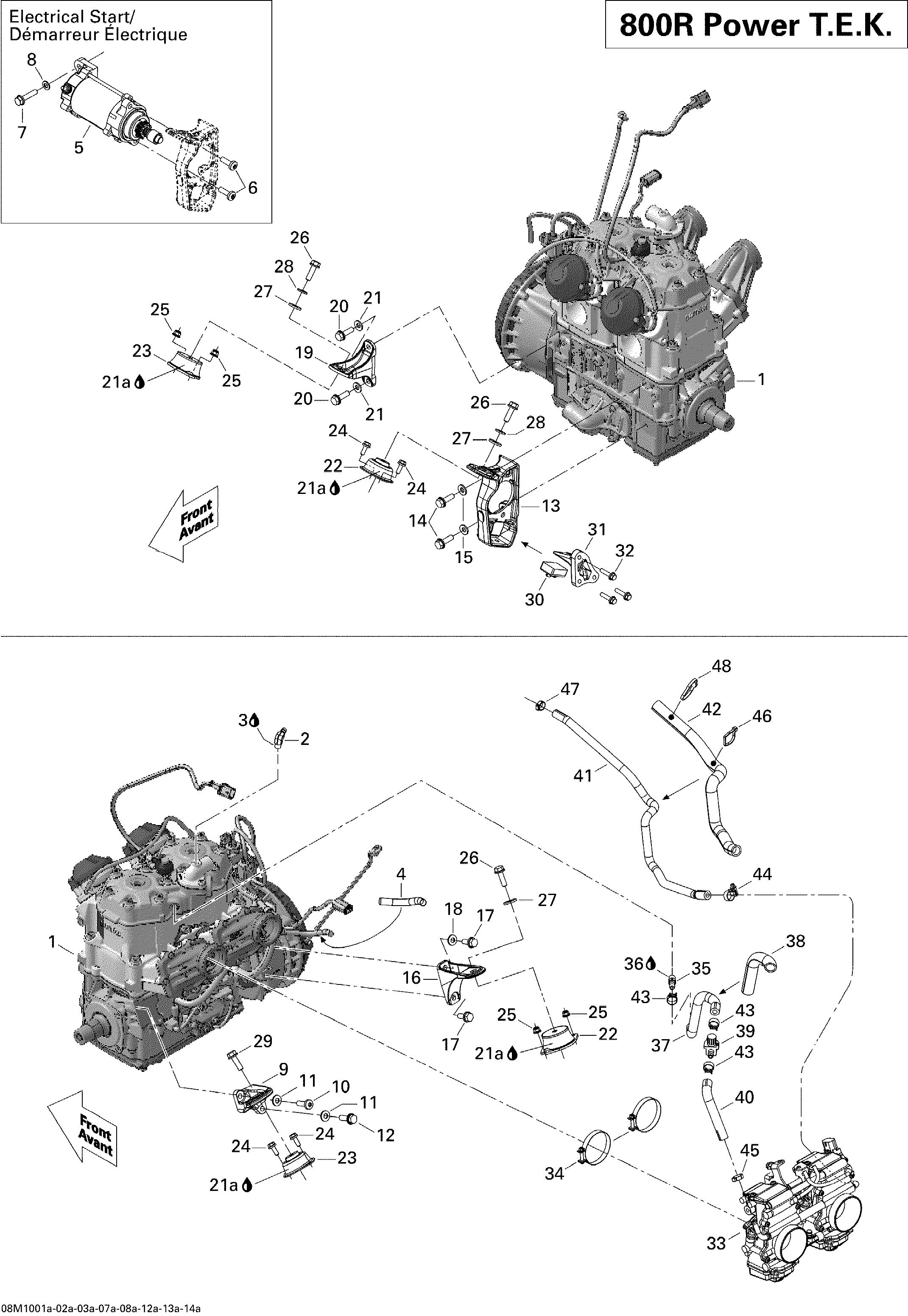

01- Engine And Engine Support 1- 800R PTEK для BRP Ski-Doo Summit HillClimb - 2010
-
№АртикулНазвание
-
1400800322 Engine 800REngine 800R
-
2293700045 Elbow Fitting 90°Elbow Fitting 90°
-
3293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
4415079900 Tubing 10 mmTubing 10 mm
-
9512060478 Rear Support, PTORear Support, PTO
-
10250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
13512060561 Front Support, PTOFront Support, PTO
-
14207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16512060559 Rear Support, MAGRear Support, MAG
-
17207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19512060469 Front Support, MAGFront Support, MAG
-
20207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21a293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
22512060457 Rubber MountRubber Mount
-
23512060387 Rubber MountRubber Mount
-
24207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26207583086 Hex. Flange Screw M8 X 30, Scotch GripHex. Flange Screw M8 X 30, Scotch Grip
-
27503183200 Washer, YellowWasher, Yellow
-
28234281474 Conical Spring Washer M8Conical Spring Washer M8
-
29250000361 Hex. Screw M8Hex. Screw M8
-
30512060179 StopperStopper
-
31512060489 Stopper SupportStopper Support
-
32207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
33403138805 Carburator Kit, TM40-B397Carburator Kit, TM40-B397
-
34512059835 Gemi ClampGemi Clamp
-
35512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
36293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
37512060357 Hose Formed Engine OutletHose Formed Engine Outlet
-
38415080000 Tubing 16 mmTubing 16 mm
-
39512059324 Valve 5/16''Valve 5/16''
-
40512060353 Hose FormedHose Formed
-
41512060347 Hose FormedHose Formed
-
42415080000 Tubing 16 mmTubing 16 mm
-
43414655700 Spring ClampSpring Clamp
-
44293650084 Norma ClampNorma Clamp
-
45293650125 Oetiker ClampOetiker Clamp
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47293650046 Oetiker ClampOetiker Clamp
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
