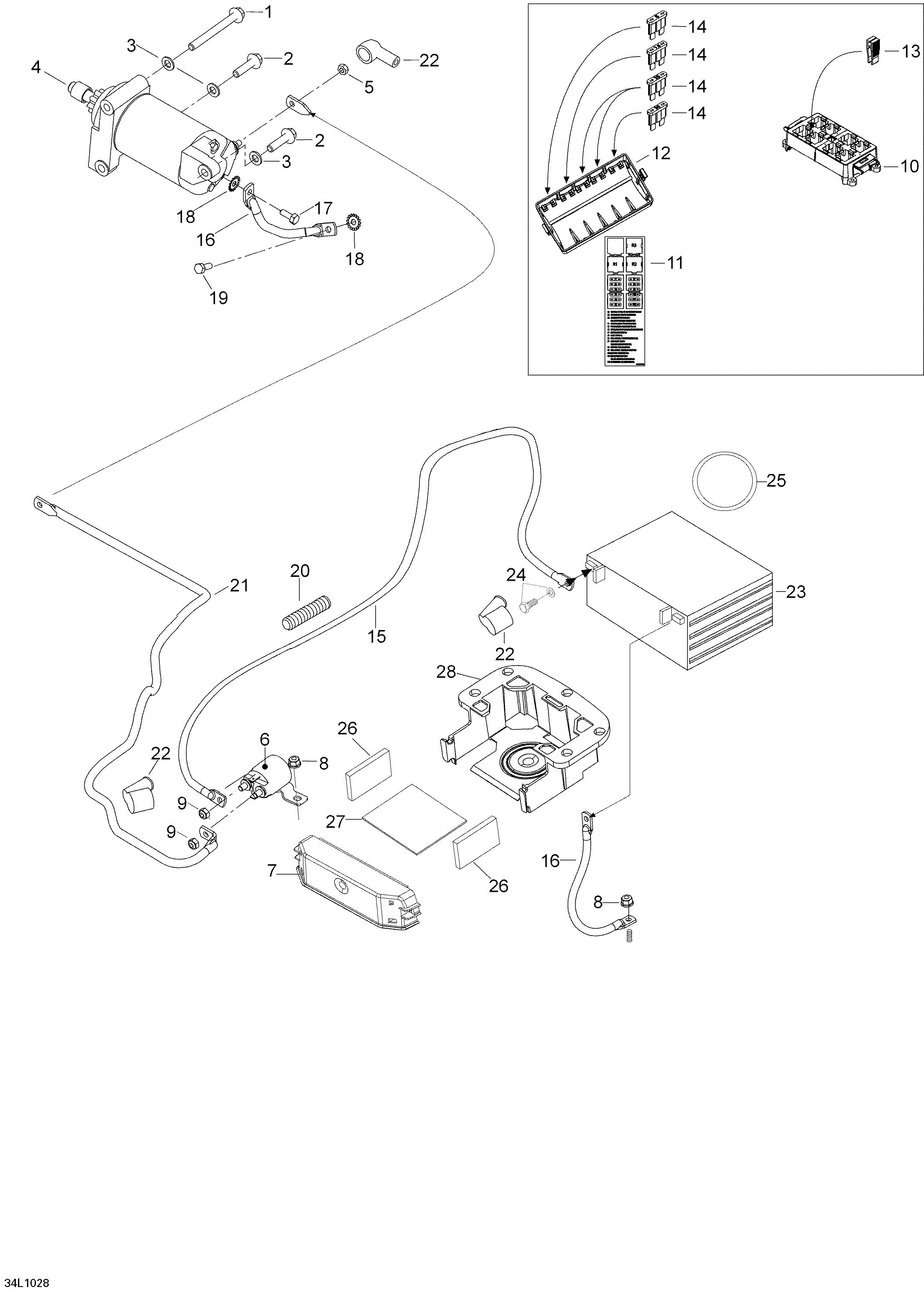

10- Battery And Starter для BRP Ski-Doo Skandic WT 600 - 2010

  • №
    Артикул
    Название
  • 1
    207587544 Hex. Flanged Screw M8 X 75, Scotch Grip
    Hex. Flanged Screw M8 X 75, Scotch Grip
  • 2
    207583044 Hex. Flanged Screw M8 X 30, Scotch Grip
    Hex. Flanged Screw M8 X 30, Scotch Grip
  • 3
    250200008 Flat Washer 8 mm
    Flat Washer 8 mm
  • 4
    515176133 Electric Starter Ass'y
    Electric Starter Ass'y
  • 5
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 6
    515176011 Starter Relay
    Starter Relay
  • 7
    605255586 Battery Cover
    Battery Cover
  • 8
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 9
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 10
    515176065 Fuse Box Base
    Fuse Box Base
  • 11
    605453790 Fuse Decal
    Fuse Decal
  • 12
    515176066 Cover
    Cover
  • 13
    515175811 Fuse Tool
    Fuse Tool
  • 14
    278000344 Fuse, 5 Amperes
    Fuse, 5 Amperes
  • 14
    278000704 Fuse, 7.5 Amperes
    Fuse, 7.5 Amperes
  • 14
    409003900 Fuse, 20 Amperes
    Fuse, 20 Amperes
  • 14
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 14
    M42044 Fuse 1 A
    Fuse 1 A
  • 15
    M5348359 Battery Wire
    Battery Wire
  • 16
    605355795 Ground Wire
    Ground Wire
  • 17
    207361644 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 18
    M20017 Serrated Lock Washer
    Serrated Lock Washer
  • 19
    M40327 Allen Screw M6 X 12
    Allen Screw M6 X 12
  • 20
    M28015 Housing
    Housing
  • 21
    M5348358 Battery Wire
    Battery Wire
  • 22
    570151000 Protection Cap
    Protection Cap
  • 23
    410301203 Battery, 18 Amperes
    Battery, 18 Amperes
  • 24
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 25
    605676001 O'Ring 130 X6,0
    O'Ring 130 X6,0
  • 26
    605355847 Foam
    Foam
  • 27
    605355846 Foam
    Foam
  • 28
    605255588 Battery Support
    Battery Support
