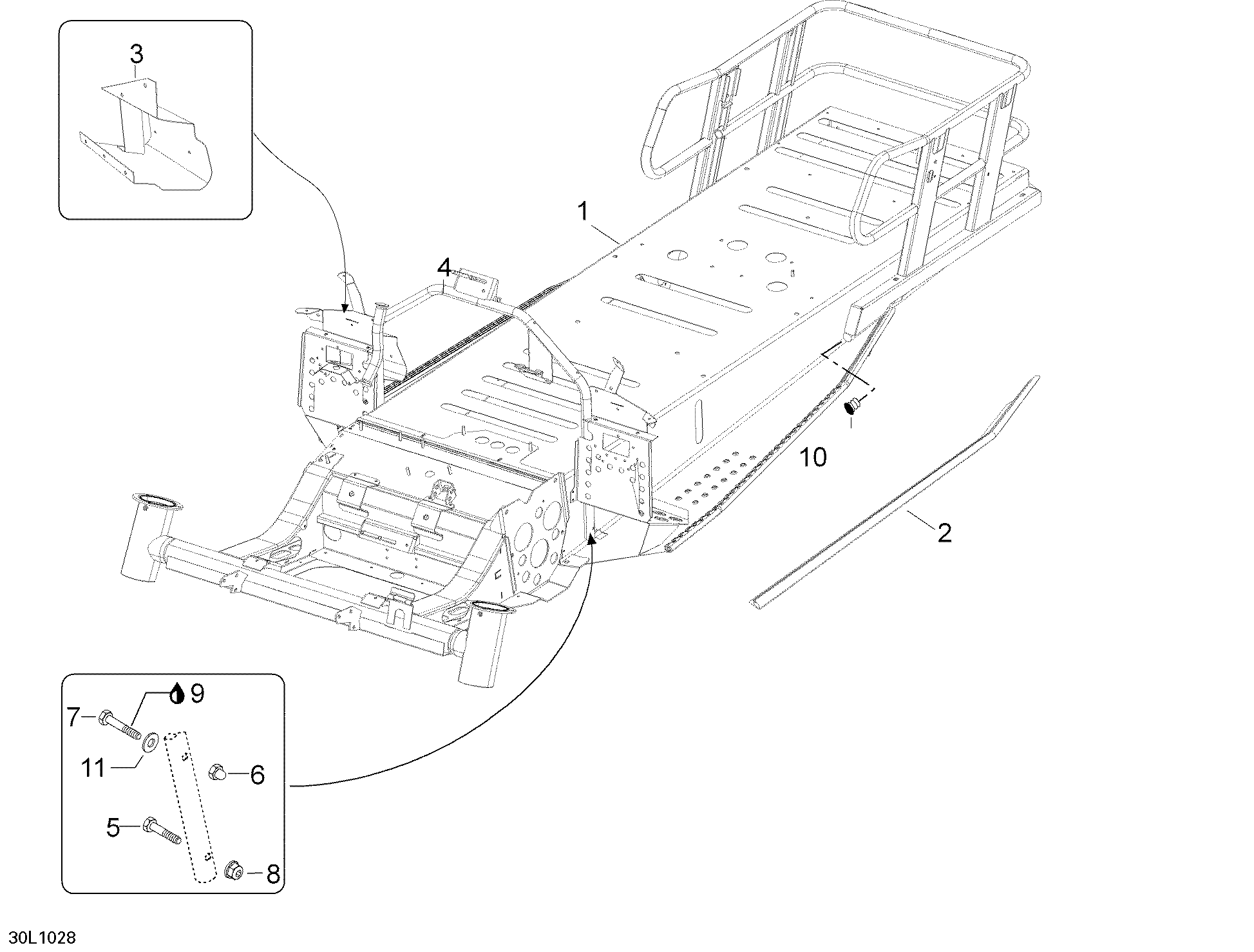

09- Frame для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1605154821 Frame Ass'yFrame Ass'y
-
2605255625 LH ReinforcementLH Reinforcement
-
2605255626 RH ReinforcementRH Reinforcement
-
3605350839 RH Toe RestRH Toe Rest
-
3605350840 LH Toe RestLH Toe Rest
-
4605155568 Welded Steering SupportWelded Steering Support
-
6232061414 Hex. Nut M6Hex. Nut M6
-
7207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10M28210 PlugPlug
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
